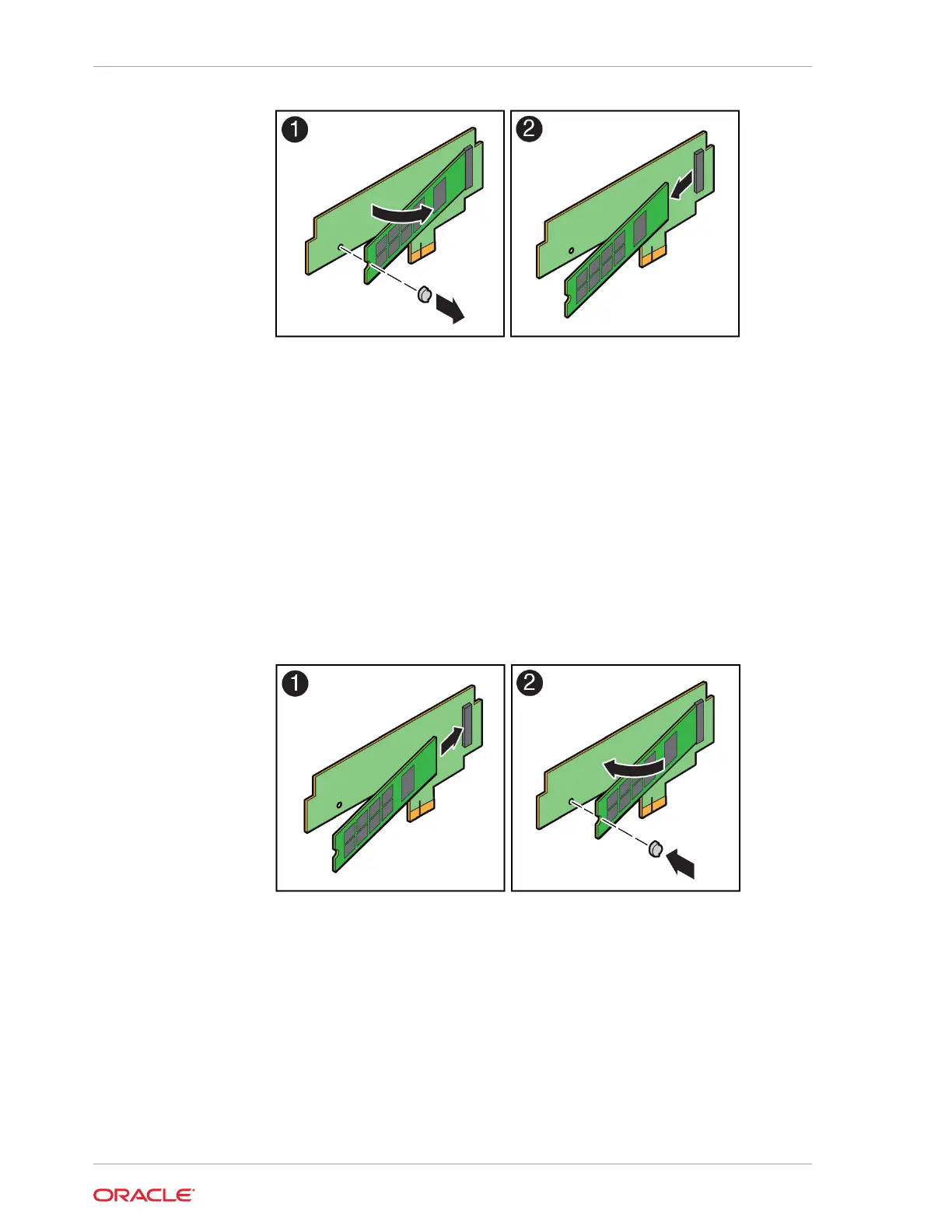

b. Remove the M.2 flash SSD from its connector socket on the riser board socket
[2].
c. Place the M.2 flash SSD on an antistatic mat.
Install an M.2 Flash SSD
The flash riser board should have already been removed as described in Identify and
Remove an M.2 Flash SSD.
1. Unpack the replacement M.2 flash SSD and place it on an antistatic mat.
2. Install the M.2 flash SSD onto the riser board.
a. At an approximate 45 degree angle, insert the M.2 flash SSD into its connector
socket on the riser board socket [1].
b. With the M.2 flash SSD at an approximate 45 degree angle to the riser board,
insert the plastic retainer clip into the notched end of the M.2 flash SSD and
then push down on the end of the M.2 flash SSD until the retainer clip snaps
into place in the hole on the riser board [2].
You hear an audible click when the M.2 flash SSD is secured to the flash riser
board.
3. Install the flash riser board.
a. Ensure that the riser board securing levers on the motherboard are in the open
position.
Chapter 4
Servicing Internal M.2 Flash SSDs (CRU)
4-4
