Note:
IMPORTANT: When the disk backplane is replaced, the key identity
properties (KIP) of the backplane is programmed by Oracle ILOM to
contain the same KIP as the other quorum member components. If you
removed other quorum member components, you might need to
manually program the product serial number (PSN) into the new
backplane. For more information, see FRU Key Identity Properties (KIP)
Automated Update.
Remove a Disk Backplane Cable
1. Prepare the server for service.
a. Power off the server.
See Powering Down the Server.
b. Disconnect the power cords from the power supplies.
See Disconnect Cables From the Server.
c. Extend the server to the maintenance position.
See Extend the Server to the Maintenance Position.
d. Attach an antistatic wrist strap.
See Take Antistatic Measures.
e. Remove the server top cover.
See Remove the Server Top Cover.
f. Remove the air baffle.
See Remove the Air Baffle.
g. Remove the fan modules and fan tray from the server.
See Remove the Fan Tray.

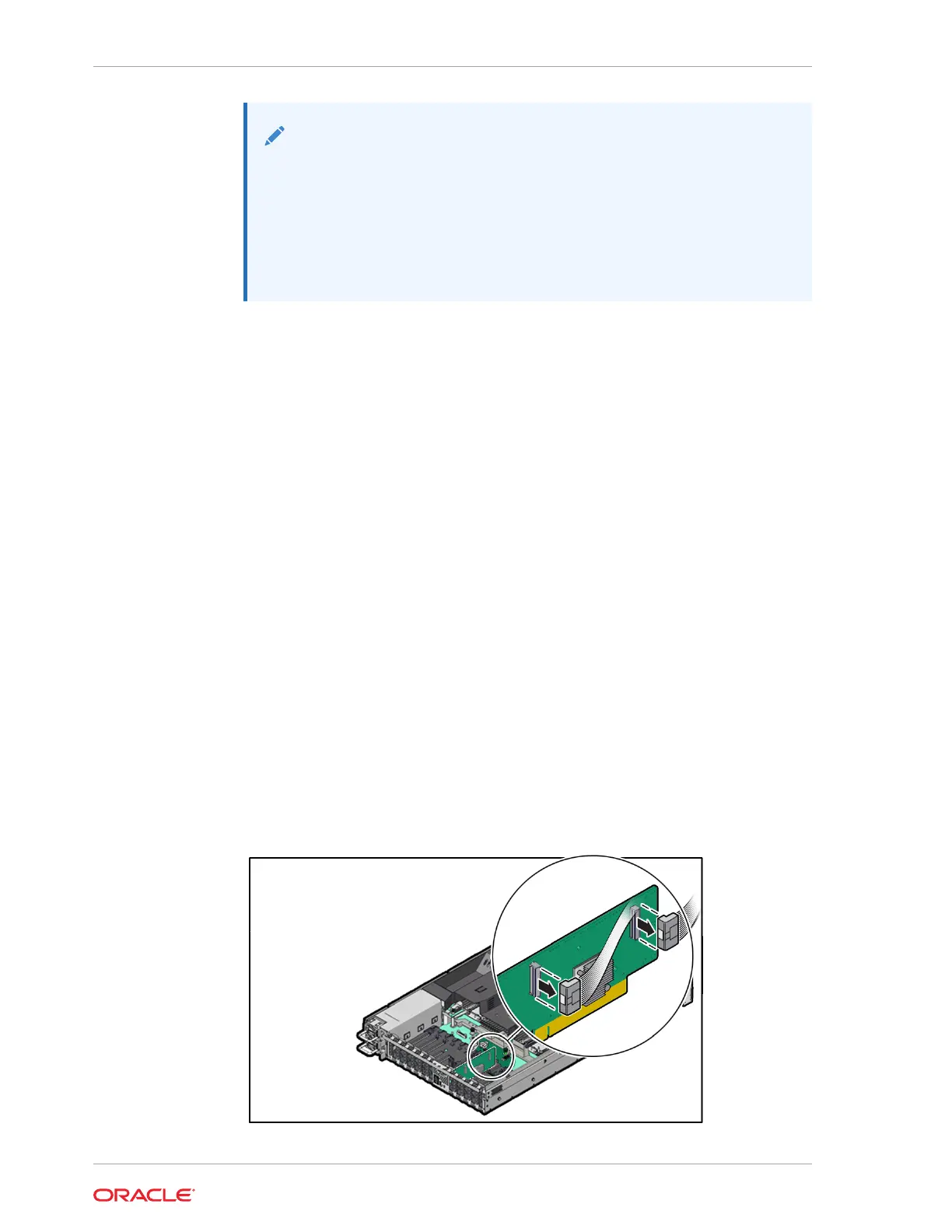

2. Disconnect the "Y" end of the Retimer cable from the Retimer card installed in
PCIe slot 6.
Chapter 5
Servicing the Disk Backplane (FRU)
5-30
