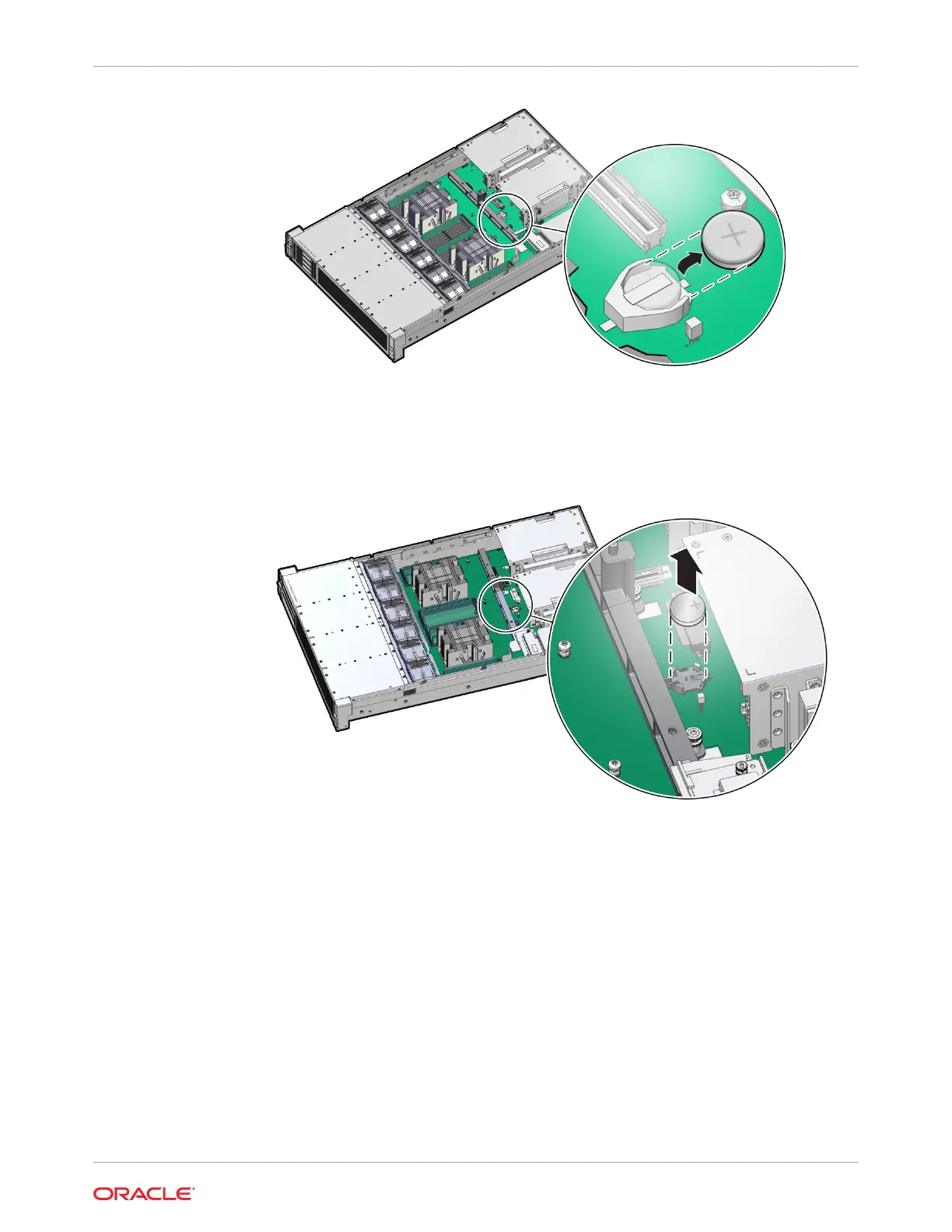

• Remove the battery from other Top-Load Battery Connectors as follows.
a. To dislodge the battery from the retainer, place your finger under the side of the
battery nearest the rear of the server.
b. Gently lift the battery up and out of the connector.
Install the Battery
1. Unpack the replacement RTC battery.
2. Press the new battery into the battery retainer.
• Install the battery into the 796136-1 Top-Load Battery (TE) Connector as follows:
Each connector consists of a housing with a positive contact and a negative contact.
The floor of the housing is embossed with a `+' to designate the positive contact. The
connector features four lips for positive retention of the battery.
a. Support the connector by grasping the positive end of the connector [1]. Then,
while holding the battery at an angle with the positive ‘+’ side facing up, slide the
battery under the lips at the positive end of the connector [1].
Chapter 4
Servicing the Battery (CRU)
4-25
