Caution:
These procedures require that you handle components that are sensitive to
electrostatic discharge. This sensitivity can cause the component to fail. To
avoid damage, ensure that you follow electrostatic discharge safety
measures and antistatic practices. See Electrostatic Discharge Safety.
Note:
On single-processor systems, processor socket 1 (P1) is shipped without a
heatsink and with an External Cap. To protect the delicate processor socket
pins, do not remove the External Cap that was installed on the motherboard.
• Processor Overview
• Identify and Remove a Processor
• Install a Processor
Processor Overview

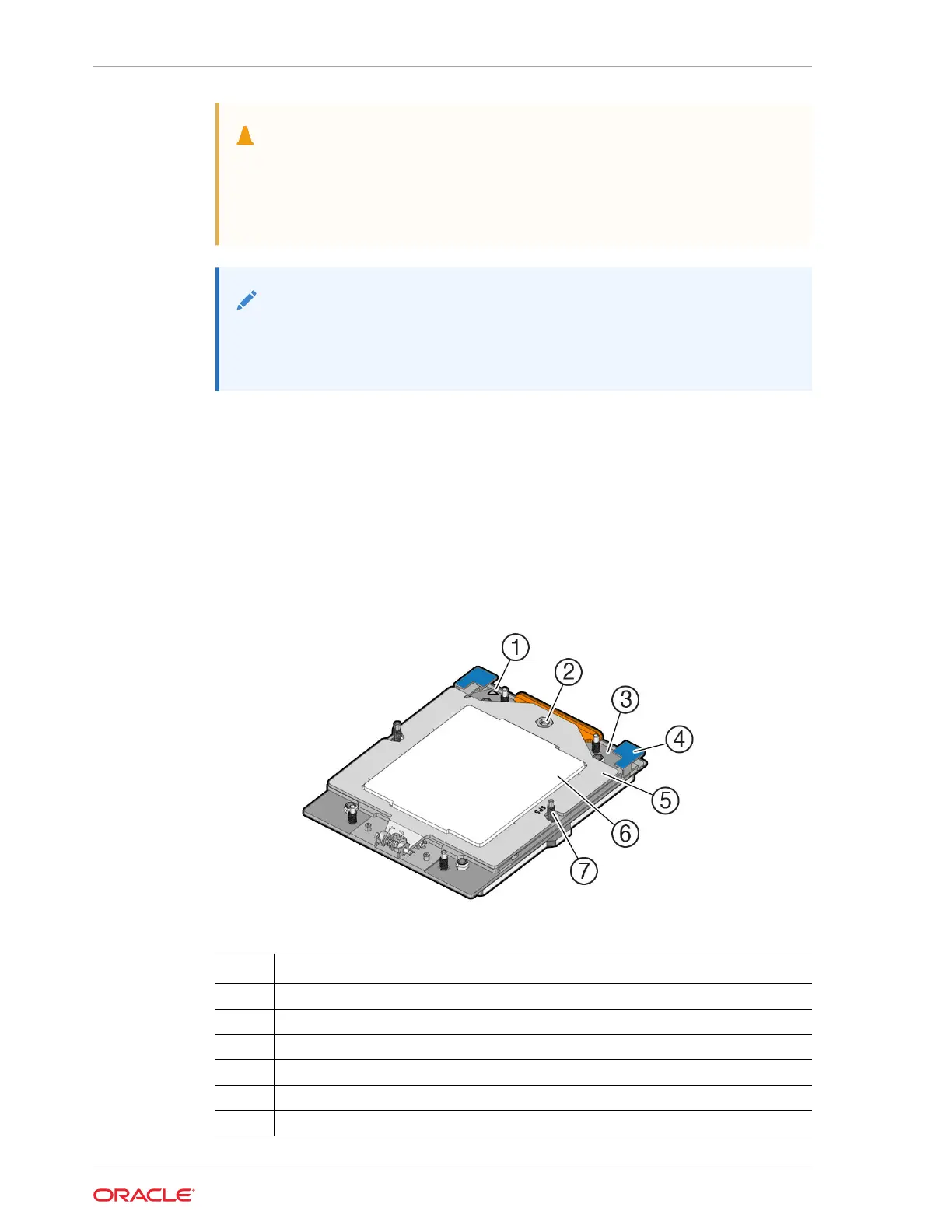

Socket components in the processor assembly have a pin 1 indicator to aid in
assembly.
Callout
Description
1 Pin 1 orientation
2 Force Frame Retention Screw (captive)
3 Rail Frame (socket stiffener frame)
4 Release Tabs (2x)
5 Force Frame (retention frame)
6 Processor Package (carrier frame holding preinstalled processor)
Chapter 5
Servicing Processors (FRU)
5-2
