Server Back Panel Status Indicators
See a listing of the various back panel status indicators for the Oracle Database Appliance
X10-S/X10-L.

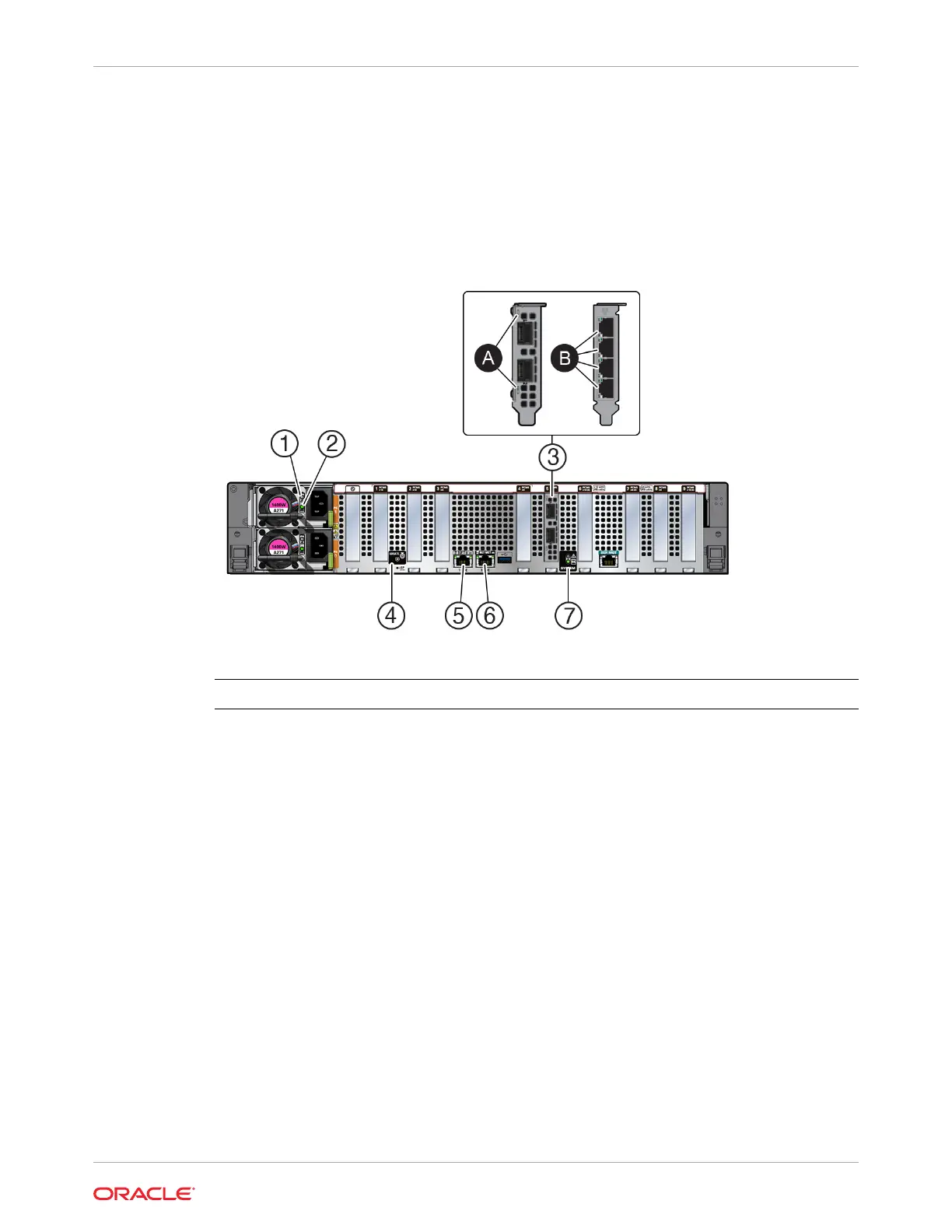

The following figure shows the Oracle Database Appliance X10-S/X10-L server back panel
and includes indicators for the system, power supplies and network ports.
Callout Indicator/LED: Color State Meaning
1 PS Service Required: amber • Off - Normal operation.
• On - The power supply (PS)
has detected a PS fan
failure, PS overtemperature,
PS over current, or PS over
or under voltage.
2 PS OK: green • Off - No AC power is
present.
• On - Normal operation. Input
AC power and DC output
voltage are within
specification.
• Slow blink - Normal
operation. Input power is
within specification. DC
output voltage is not
enabled.
