Storage Shelf Back Panel Status Indicators
See a listing of the various back panel status indicators for the Oracle Database
Appliance X10-HA storage shelf.

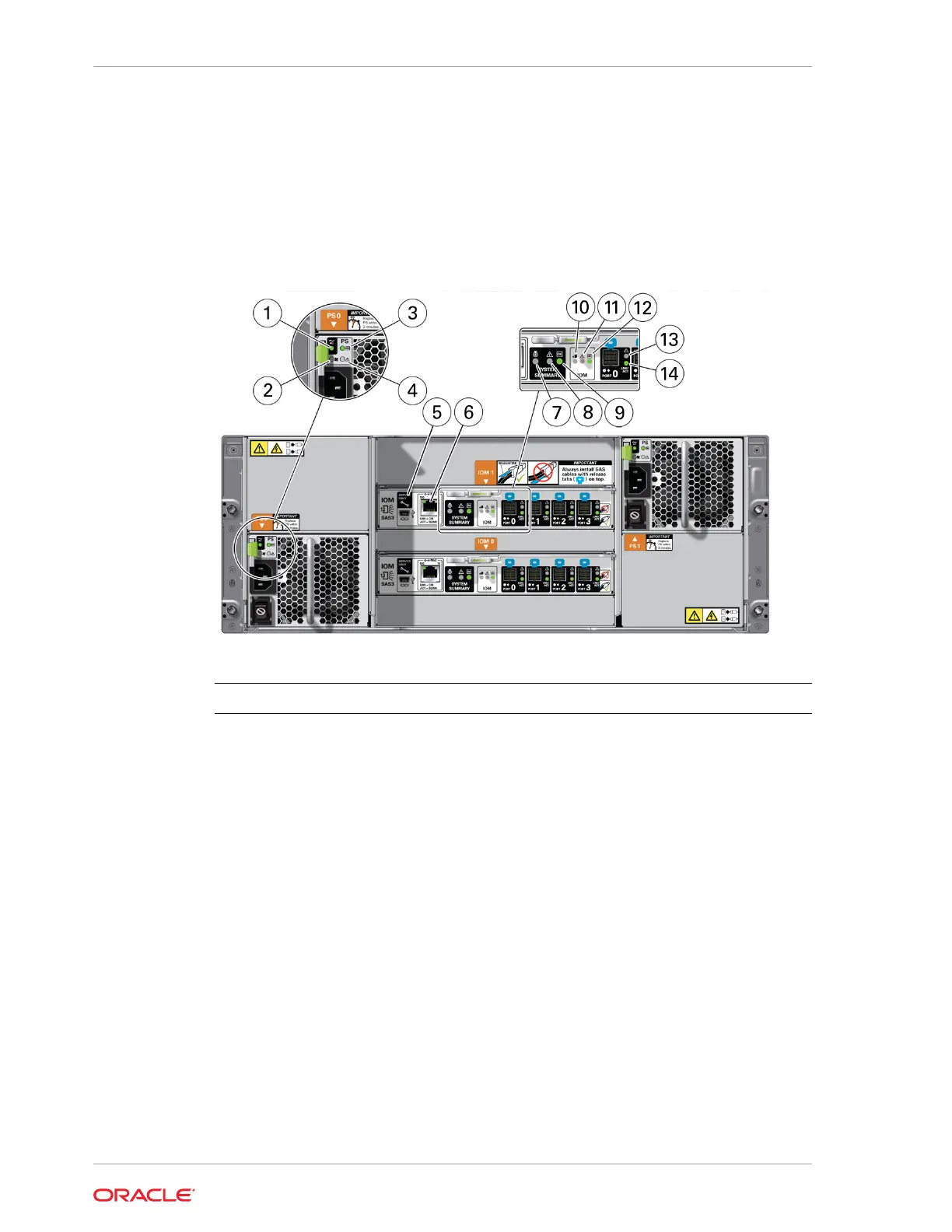

The following figure shows the controls and indicators on the Oracle Database
Appliance X10-HA storage shelf (DE3-24C) back panel.
Callout Indicator/LED: Color State Meaning
1 AC power fault indicator:
amber
• Off - Normal operation.
• On - Indicates an AC
power fault.
2 Fan fail indicator: amber • Off - Normal operation.
• On - The fan is faulty.
3 Power supply status indicator:
green
• Off - The power supply is
unplugged or turned off.
• On - The power supply is
operating normally.
4 DC power fail indicator: amber • Off - Normal operation.
• On - The power supply is
faulty.
5 Reserved This port is reserved for
Oracle Service.
6 Network port (reserved) This port is reserved for
Oracle Service.
Chapter 1
Oracle Database Appliance X10-HA Status Indicators
1-14
