Oracle Database Appliance X10 User Manual

Oracle Database Appliance X10-HA Storage Shelf Indicators
See a description of the front and back Oracle Database Appliance X10-HA storage
shelf status indicators.
• Storage Shelf Front Panel Status Indicators
See a listing of the various font panel status indicators for the Oracle Database
Appliance X10-HA storage shelf.
• Storage Shelf Back Panel Status Indicators
See a listing of the various back panel status indicators for the Oracle Database
Appliance X10-HA storage shelf.
Storage Shelf Front Panel Status Indicators
See a listing of the various font panel status indicators for the Oracle Database
Appliance X10-HA storage shelf.

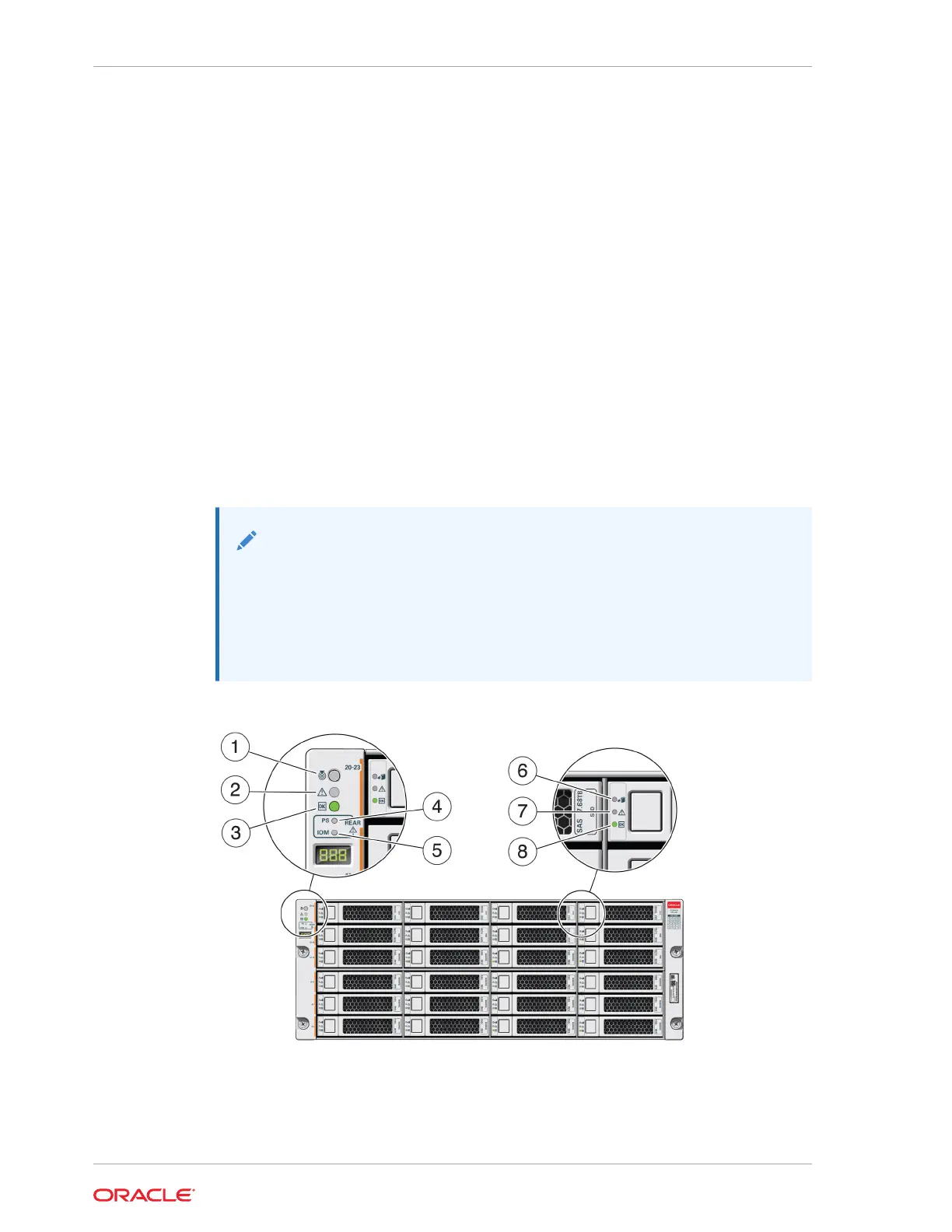

The following figure shows the controls and indicators on the for the Oracle Database
Appliance X10-HA storage shelf (DE3-24C) front panel and drives.
Note:
The 2 or 3 character LED enclosure ID display panel on the front of the
storage shelf is not used with the Oracle Database Appliance product. Any
numbers or letters displayed in this panel other than zeros could indicate a
fault with either the panel, its cabling (neither of which are customer
replaceable), or some other storage shelf component.
Chapter 1
Oracle Database Appliance X10-HA Status Indicators
1-12
