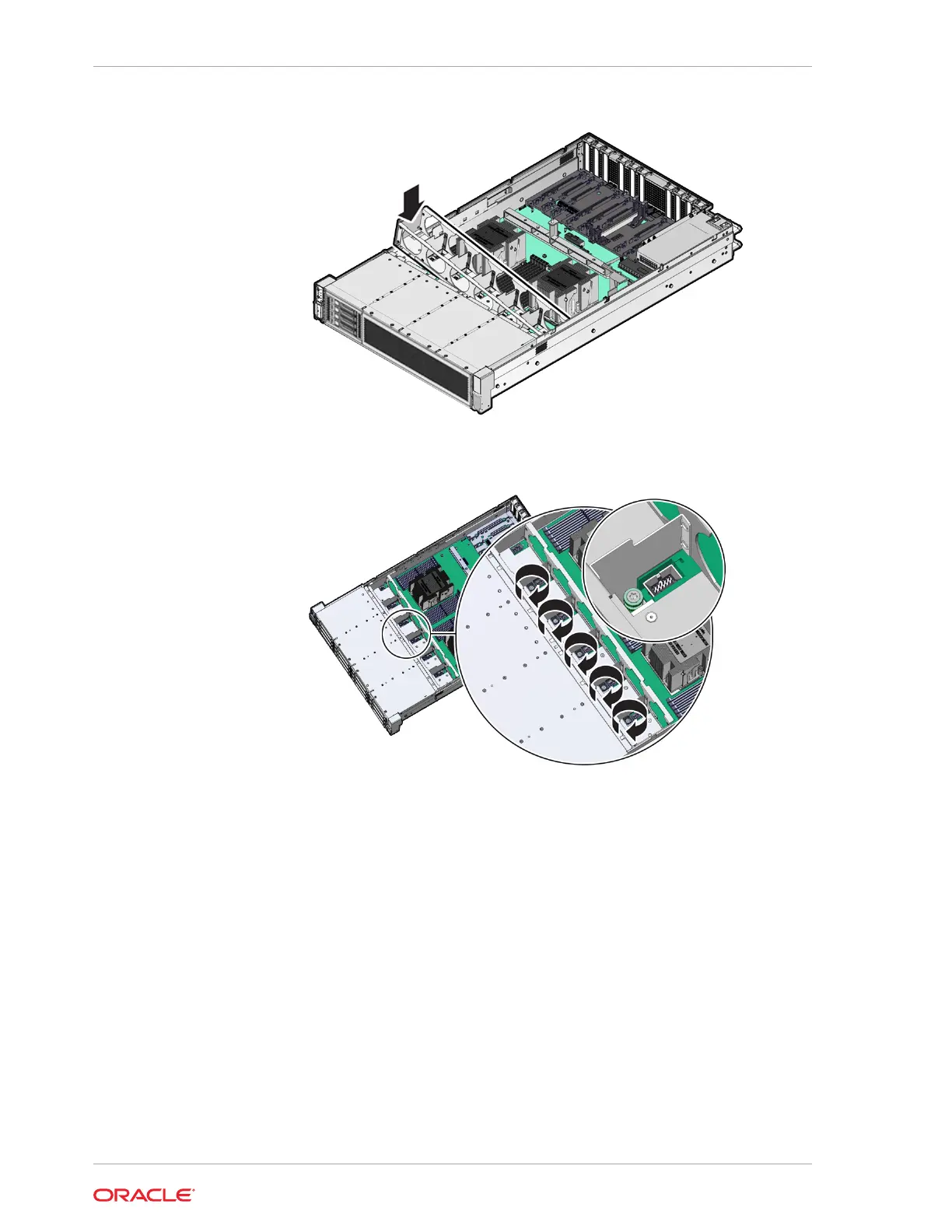

Ensure all motherboard cables are clear of the fan tray and fan tray gasket.
3. Using a Torx T25 screwdriver, tighten the five spring-mounted screws that secure
the fan tray to the server chassis.
4. Install the fan modules into the fan tray.
See Install a Fan Module.
5. Install the air baffle.
See Install the Air Baffle
6. Continue with the next step in the service procedure.
Servicing the Disk Backplane (FRU)
Perform tasks in this section to service the disk backplane.
The disk backplane (DBP) is a replaceable component that requires you to power off
the server before servicing.
