Do one of the following detailed instructions for the type of RTC battery retainer on
the server motherboard.
• Remove the battery from the 796136-1 Top-Load Battery Connector (TE) as
follows:
Each connector consists of a housing with a positive contact and a negative
contact. The floor of the housing is embossed with a `+' to designate the
positive contact. The connector features four lips for positive retention of the
battery.

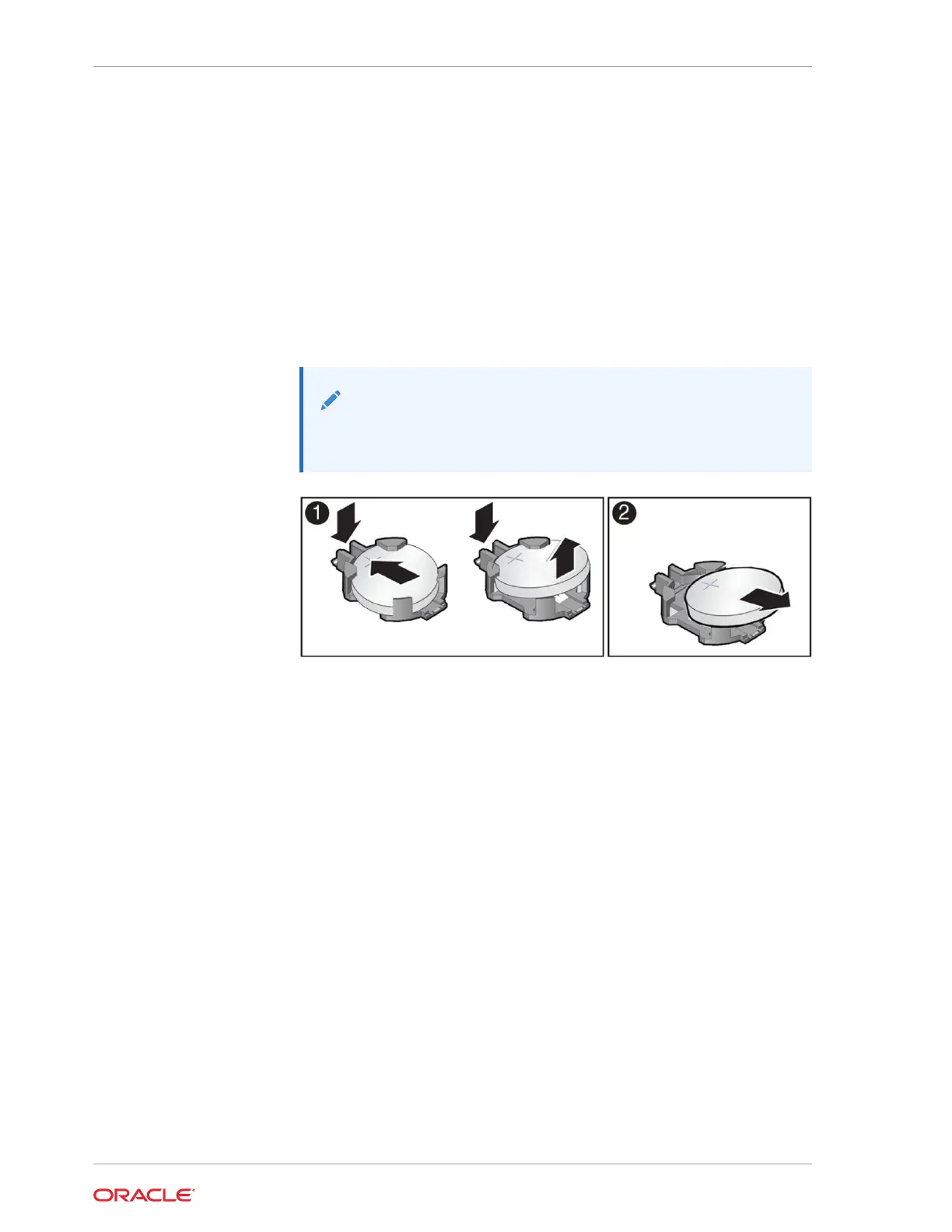

a. Support the connector by grasping the "positive" end of the connector with
two fingers and then pushing the battery toward the positive end of the
connector [1]. Slightly move the lips at the negative end of the connector
away from the battery to dislodge it from the connector.
Note:
CAUTION! The connector must be supported, otherwise
damage to the soldered contacts could occur.
b. Once the batter has been dislodged, remove the battery from the
connector [2].
• Remove the battery from the 1093TR Top-Load Battery Connector as
follows:
a. Using your fingers or a non-conducting stylus, gently pry up the edge of
the battery from underneath the negative spring tab just enough to
dislodge it from the connector.
b. Then slide the battery out from under the negative spring tab and away
from the connector.
Chapter 4
Servicing the Battery (CRU)
4-24
