Note:
CAUTION! The connector must be supported, otherwise
damage to the soldered contacts could occur.

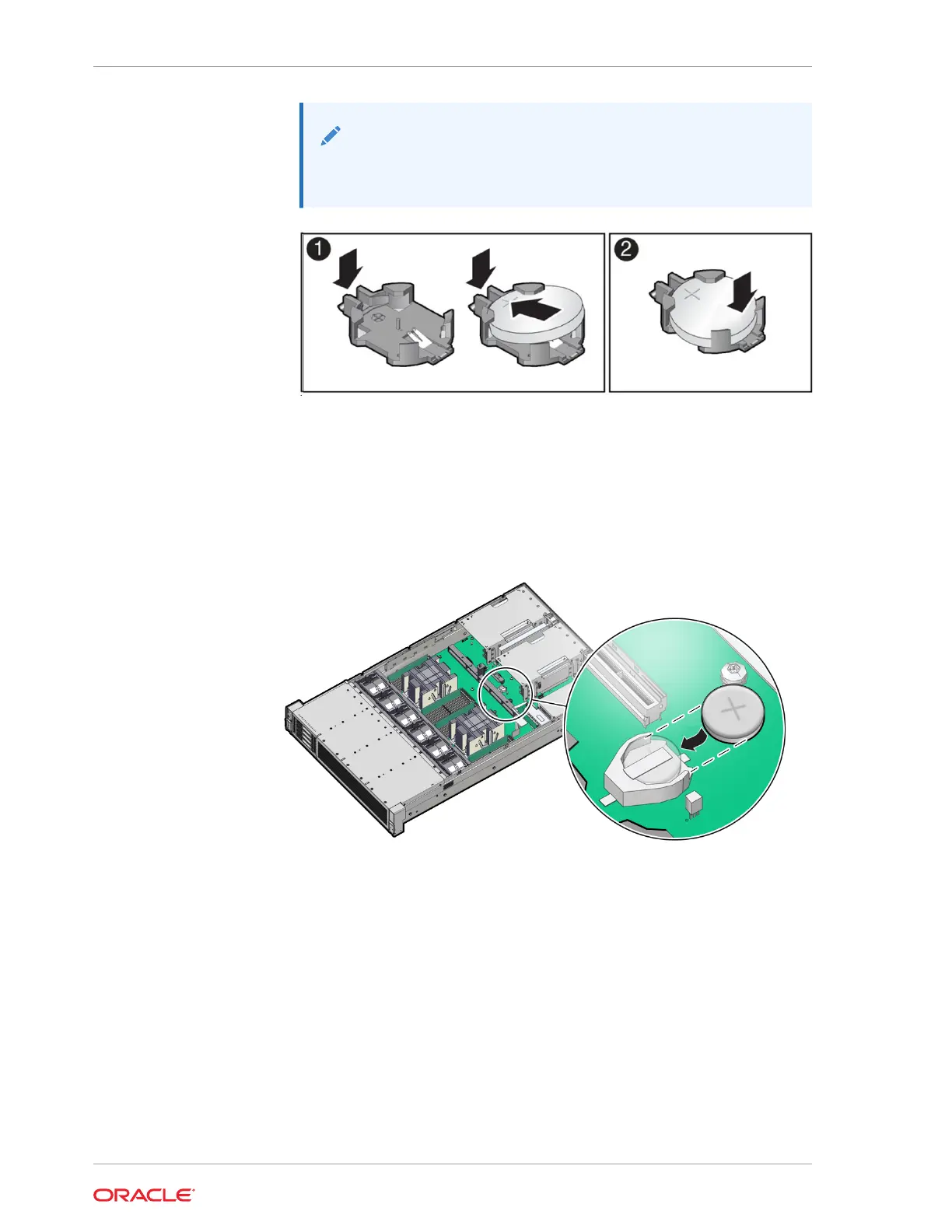

b. Gently push the battery onto the floor of the connector housing until the
battery is fully seated [2]. There should be an audible “snap.”
• Install the battery into the 1093TR Top-Load Battery Connector as follows:
a. Gently slide the battery under the negative spring tab of the connector.
b. Slide the battery to the back of the connector and push the battery into the
connector housing until the battery is fully seated. There should be an
audible “snap.”
• Install the battery into the other Top-Load Battery Connectors as follows:
a. While holding the battery at an angle with the positive ‘+’ side facing up,
slide the battery under the lips at the back of the connector
b. Then gently push the battery onto the floor of the housing until the battery
is fully seated. There should be an audible “snap.”
Chapter 4
Servicing the Battery (CRU)
4-26
