a. Power off the server.
See Powering Down the Server.
b. Disconnect the power cords from the power supplies.
See Disconnect Cables From the Server.
c. Extend the server into maintenance position.
See Extend the Server to the Maintenance Position.
d. Attach an antistatic wrist strap to your wrist, and then to a metal area on the
chassis.
See Take Antistatic Measures.
e. Remove the server top cover.
See Remove the Server Top Cover.

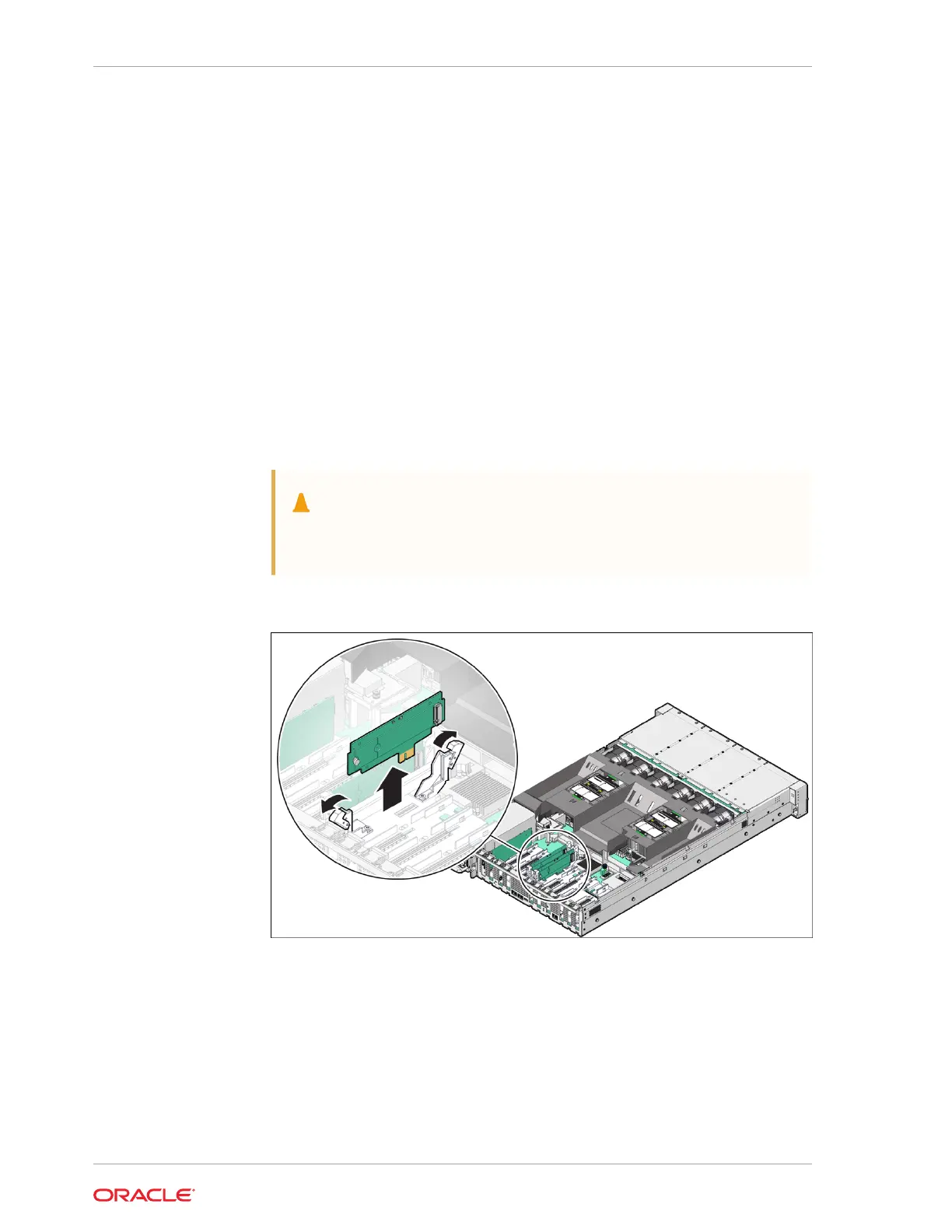

2. To remove the flash riser board, do the following:
a. Rotate both riser board securing levers outward as far as they go.
Caution:
The levers are not ejectors. Attempting to force the levers open too
far can damage them.
b. Carefully lift the riser board straight up to remove it from its motherboard
socket.
3. Place the riser board on an antistatic mat.
4. Remove the M.2 flash SSD from the riser board.
a. Using your fingers, push the part of the plastic retainer clip that protrudes
through the hole on the back side of the riser board through the hole to the
front side of the riser board [1]. Then gently lift up on the end of the M.2 flash
SSD approximately one-half to one inch and remove the plastic retainer clip
from the end of the M.2 flash SSD.
Chapter 4
Servicing Internal M.2 Flash SSDs (CRU)
4-6
