See Remove the Air Baffle.

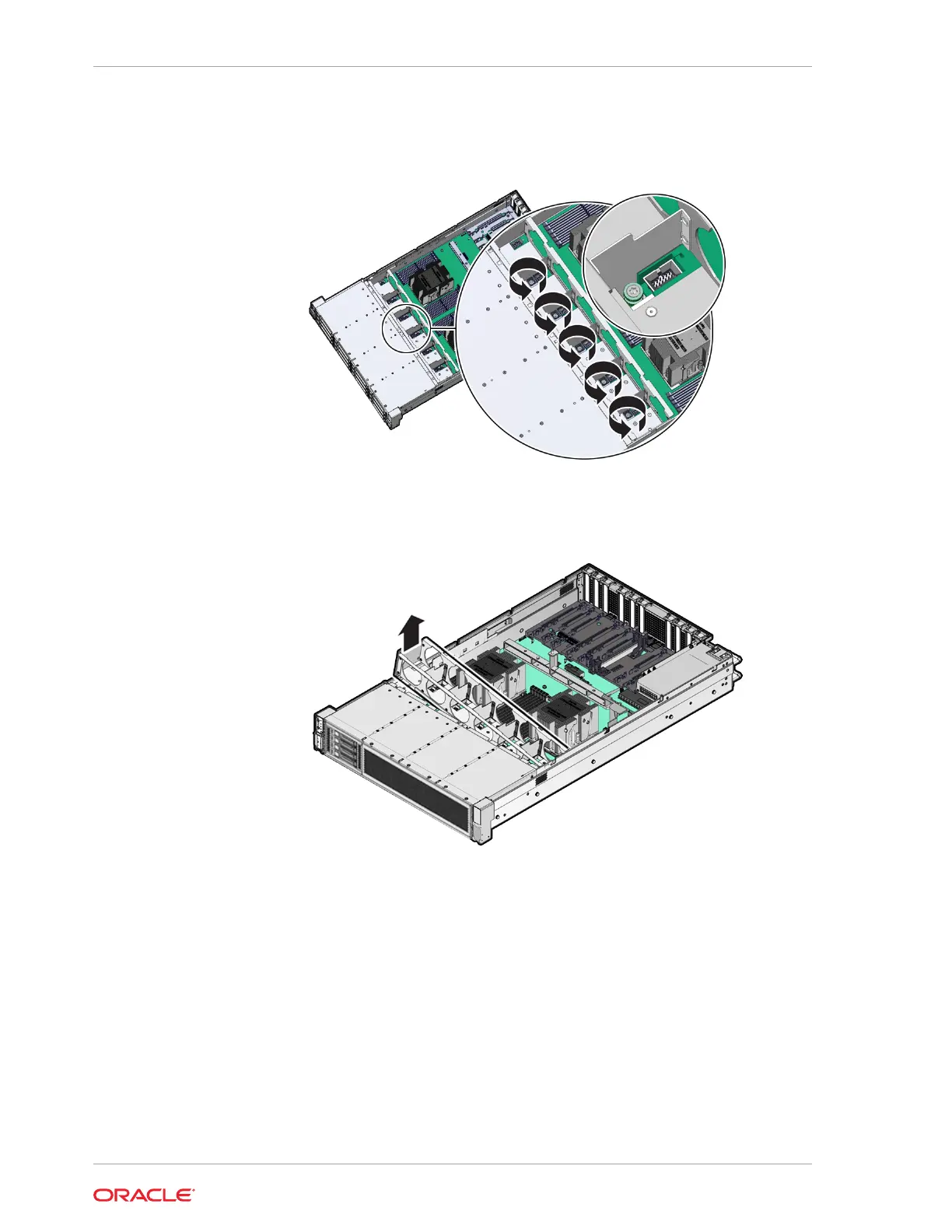

3. Using a Torx T25 screwdriver, loosen the five spring-mounted screws that secure
the fan tray to the server chassis.
4. When removing the fan tray, slightly tilt the fan tray to the left to decompress the
cables, before removal.
Ensure all motherboard cables are clear of the fan tray and fan tray gasket.
5. Lift the fan tray from the server.
Chapter 5
Servicing the Fan Tray (FRU)
