Oracle Database Appliance X10 User Manual

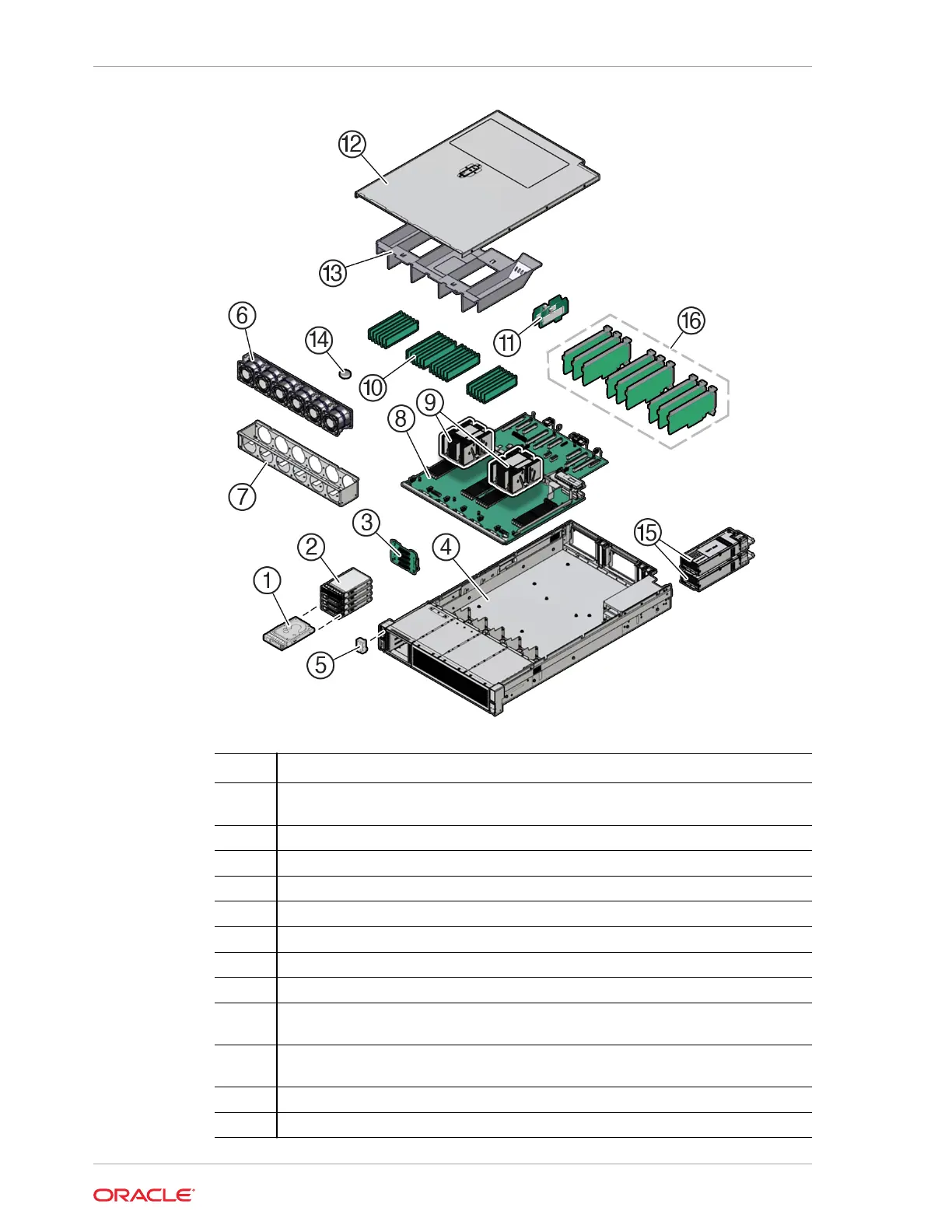

Callout Description
1 2.5-inch NVMe SSD (up to two supported with the Oracle Database Appliance X10-
S, or up to four with the Oracle Database Appliance X10-L)
2 Storage drive bay cage
3 4-Drive backplane
4 System chassis
5 Front LED indicator module
6 Six fan modules (FM0-5)
7 Fan tray
8 Motherboard assembly
9 Processors (P0, P1) and heatsinks (Single-processor systems contain only a single
processor in socket P0; socket P1 contains a cap to protect processor socket pins.)
10 24 DIMMs (Twelve DIMMs are supported in single-processor systems and the
DIMMs must be installed in P0 DIMM sockets.)
11 Internal M.2 SSD memory with two internal M.2 Risers
12 Top cover
