• Expanding the base configuration storage shelf with 22 TB HDDs for high capacity.
When expanding the storage shelf with HDDs, the base configurations SSDs will be used
for FLASH and the HDDs will be used for DATA/RECO. Expansion HDDs are available in
an eighteen-pack and populate the empty shelf storage slots (slots 6-23).

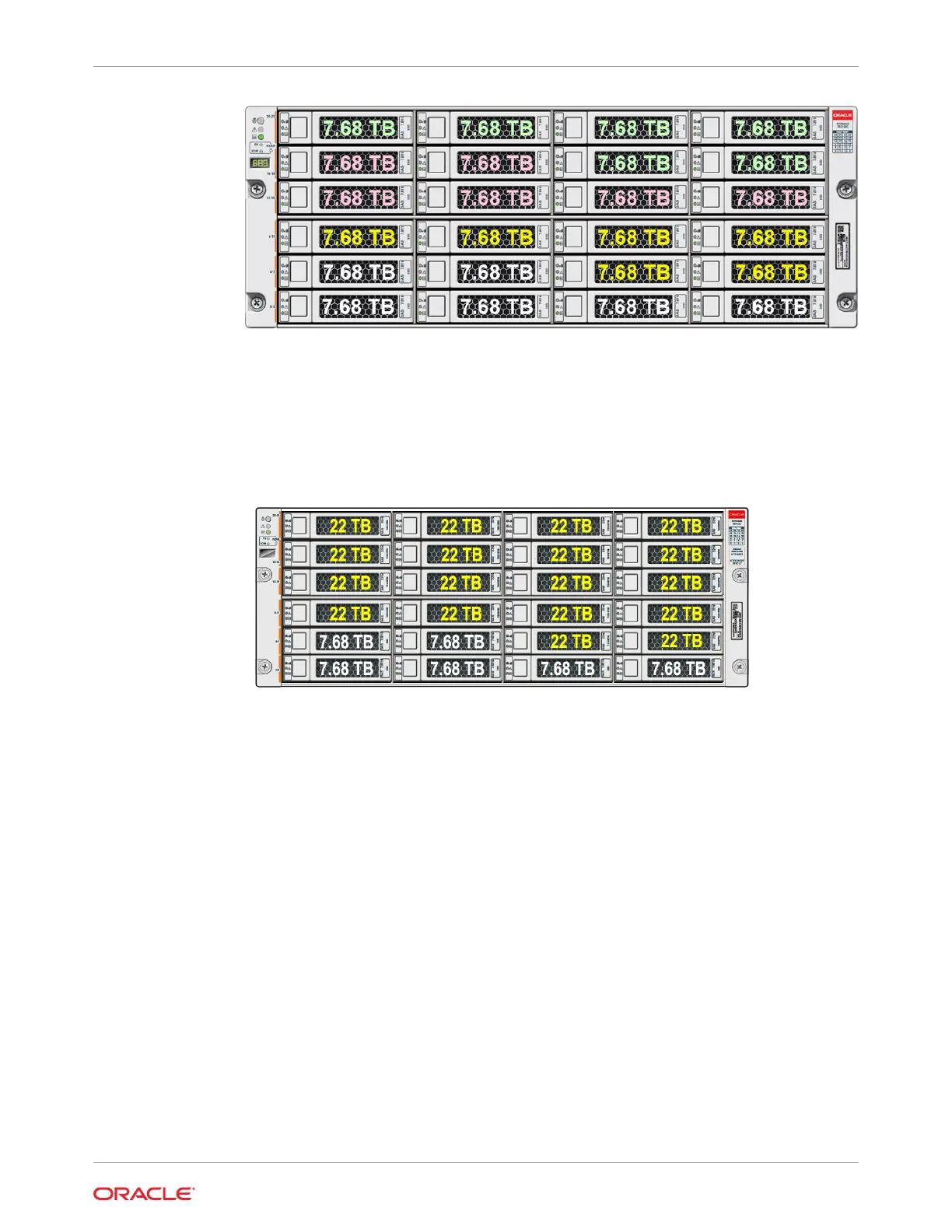

The following illustration shows the expanded drive configuration for 22 TB HDDs.
• Once you expand storage to support additional disks, you cannot revert to the base
configuration (no drives in slots 6-23).
• If you plan on adding another storage shelf, it must be populated identically to your first
storage shelf.
• The odaadmcli commands listed here must be run as the root user.
1. Do one of the following:
• If you are adding 7.68 TB SSDs to the storage shelf, leave the appliance powered on
and proceed to the next step.
• If you are adding 22 TB HDDs to the storage shelf, power off the appliance and
proceed to the next step. The storage shelf can be powered off by unplugging its AC
power cords.
2. To install the new drives into the storage shelf, do the following:
a. Remove one of the empty slot drive filler panels by pressing its release button [1] and
removing it from the drive slot [2] as shown in the following figure.
Chapter 3
Oracle Database Appliance X10-HA Storage Shelf Hot Pluggable Components
3-13
