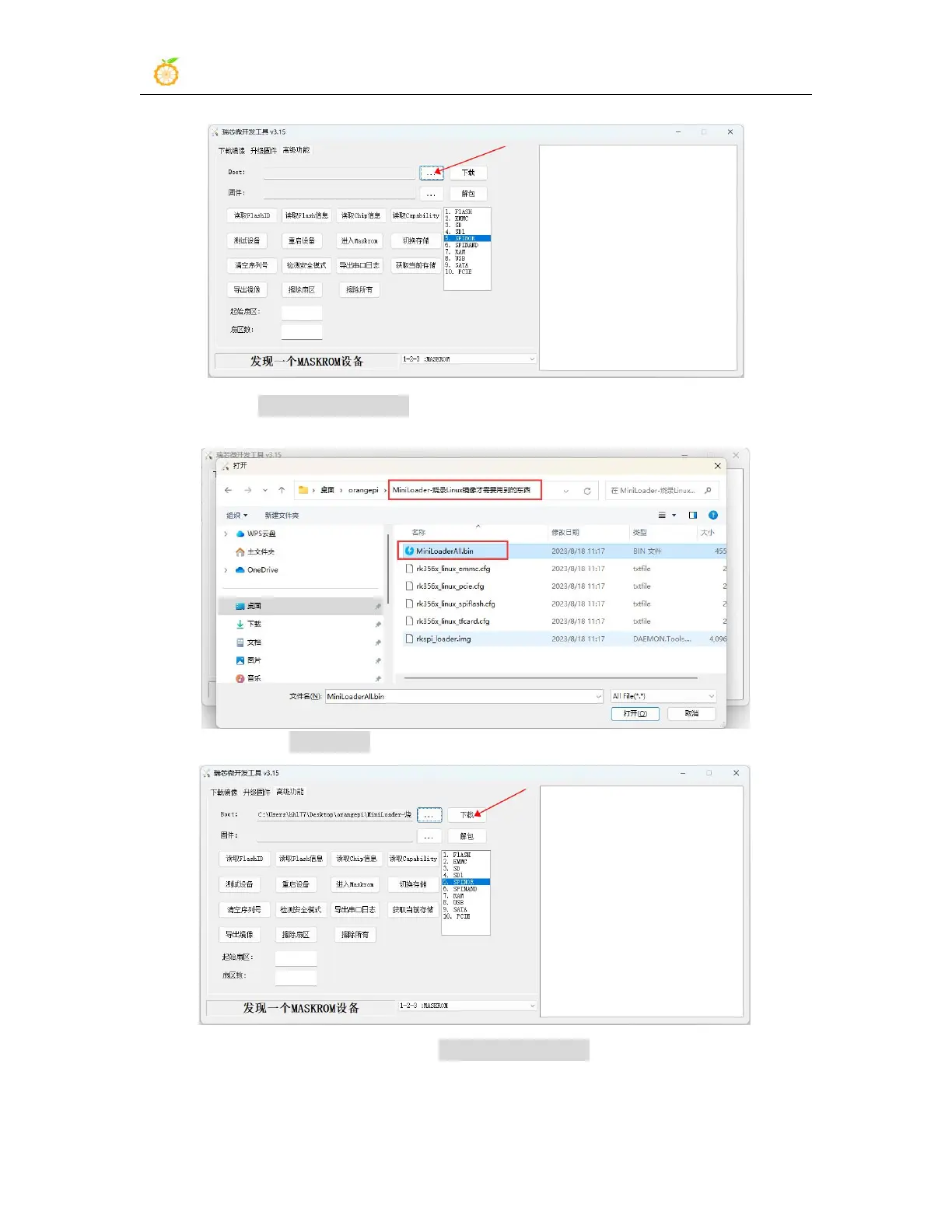

h. Select MiniLoaderAll.bin in the MiniLoader folder you downloaded earlier,

and click Open

i. Then click Download

j. The display after downloading MiniLoaderAll.bin is shown in the figure below
