range Pi User Manual Copyright reserved by Shenzhen Xunlong Software Co., Ltd

105

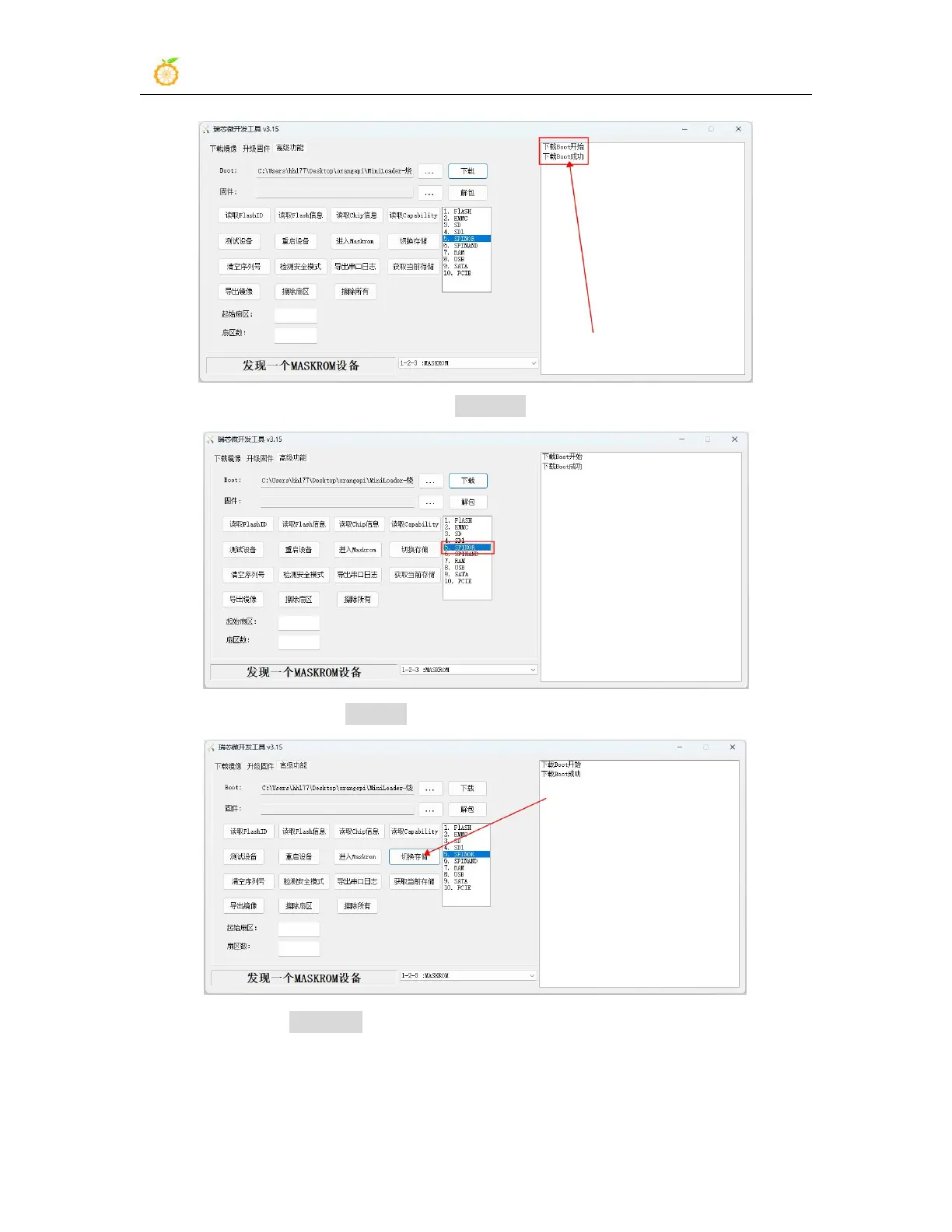

k. Then select the storage device as SPINOR

l. Then click Switch Storage

m. Then click Erase All to start erasing SPIFlash
