ORANGE Pi 3B - Page 84

To Next Page

To Previous Page

range Pi User Manual Copyright reserved by Shenzhen Xunlong Software Co., Ltd

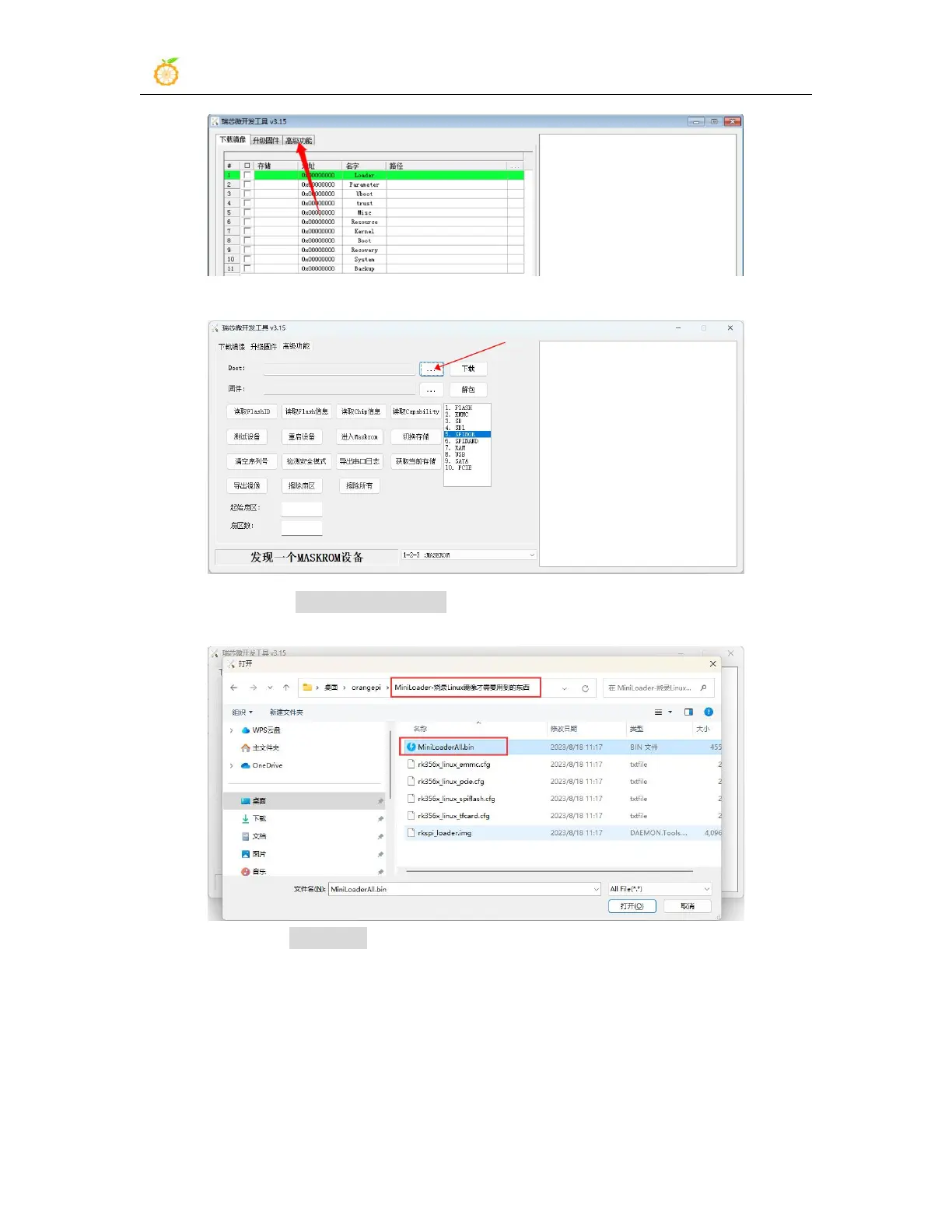

h. Then click the position shown in the figure below

i. Then select MiniLoaderAll.bin in the MiniLoader folder downloaded earlier,

and click to open

j. Then click download
