range Pi User Manual Copyright reserved by Shenzhen Xunlong Software Co., Ltd

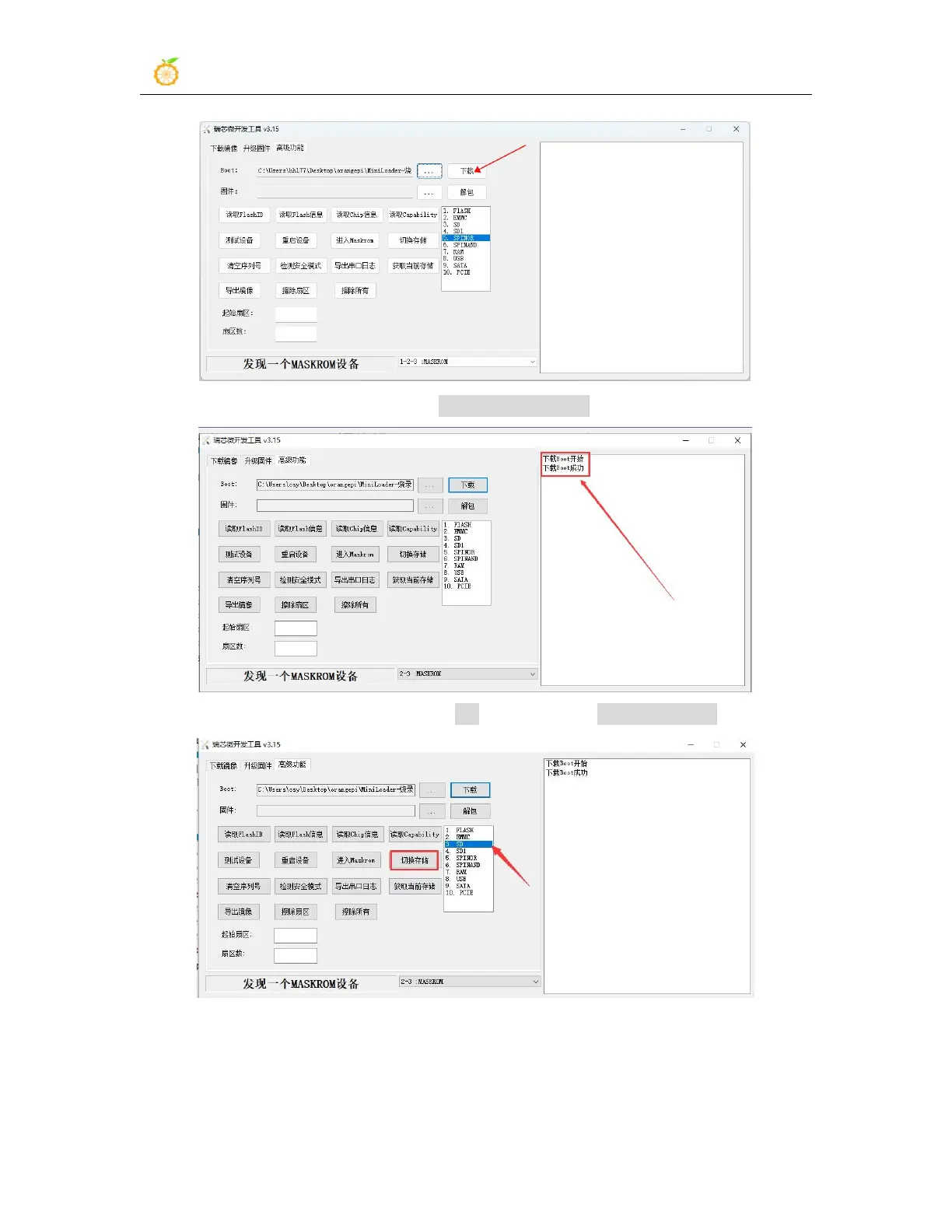

k. The display after downloading MiniLoaderAll.bin is shown in the figure below

l. Then select the storage device as SD, and then click Switch Storage

m. The display of successful switching is shown in the figure below
