User’s Manual
28
Set up the event-driven recording in case of alarm-in detection.
Action Type ─ Record: Set up the camera to record in case of alarm-in detection.
• Sched: Set the operating mode by time of the selected camera in case of alarm-in detection
(Refer to Figure 21 Alarm-In Action Schedule Setup Dialog.).
• Camera: Select the camera(s) to record in case of alarm-in detection.
NOTE: Multiple cameras can be selected.
• Speed: Set the recording speed of an associated camera in case of alarm-in detection
(1/5ips~30ips).
• Quality: Set the recording image quality of an associated camera in case of alarm-in
detection (Very High, High, Standard and Low).
• Dwell: Set the recording dwell time of an associated camera in case of alarm-in detection
(1sec~300 sec).
Action Type ─ Alarm-Out: Set up the alarm-out in case of alarm-in detection (Refer to
Figure 31 Alarm-In Action ─ Alarm-Out Setup Dialog.).
Action Type ─ Notify: Set up the Notify function in case of alarm-in detection (Refer to
Figure 40 Alarm-In Action ─ Notify Setup Dialog. Network-supported premium model
only).
Event Action ► Alarm-In Action ► Alarm-In Action Schedule Setup

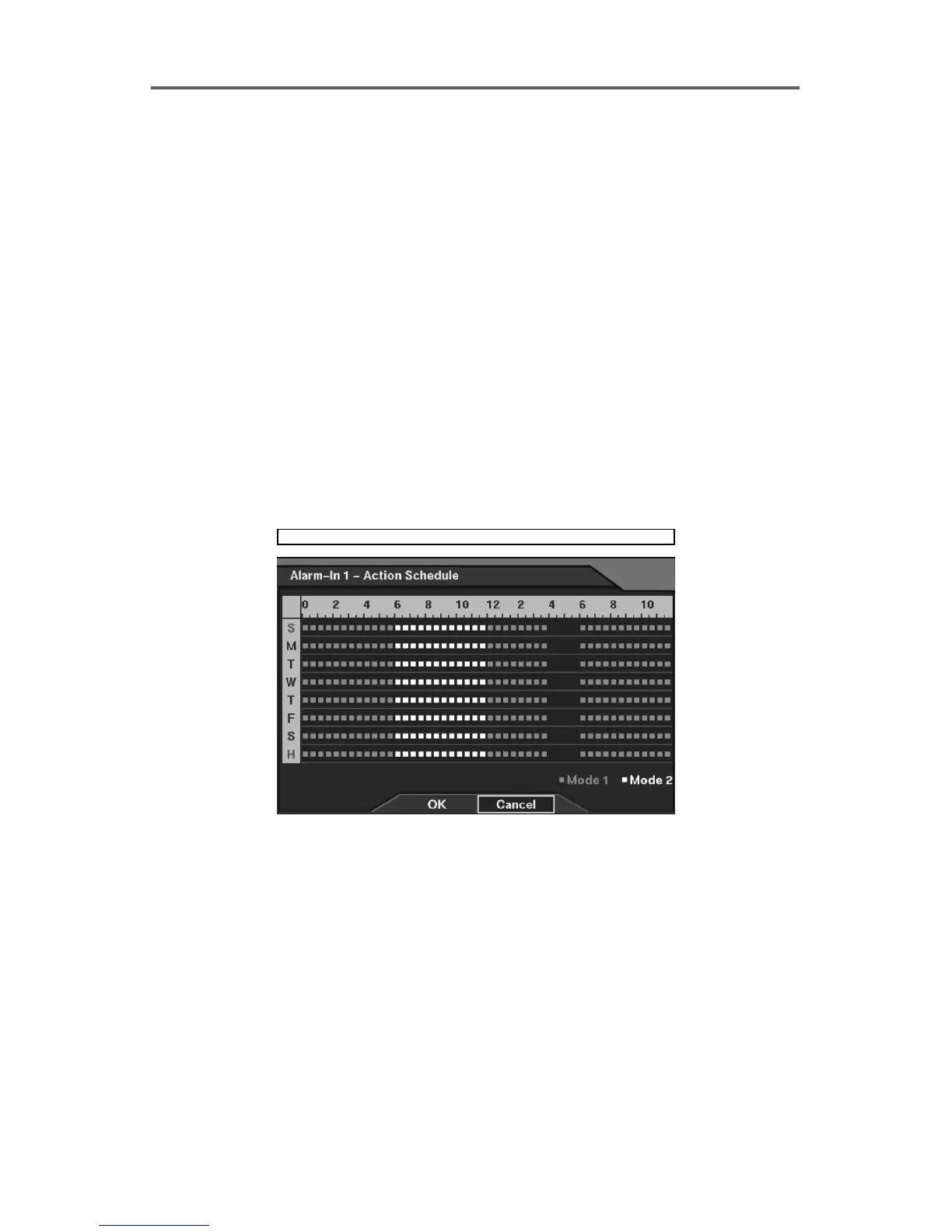

Figure 21 Alarm-In Action Schedule Setup Dialog
