PACOM PDR-4L - Figure 23 Text-In Action ─ Record Setup Dialog

User’s Manual
30
Event Action ► Text-In Action

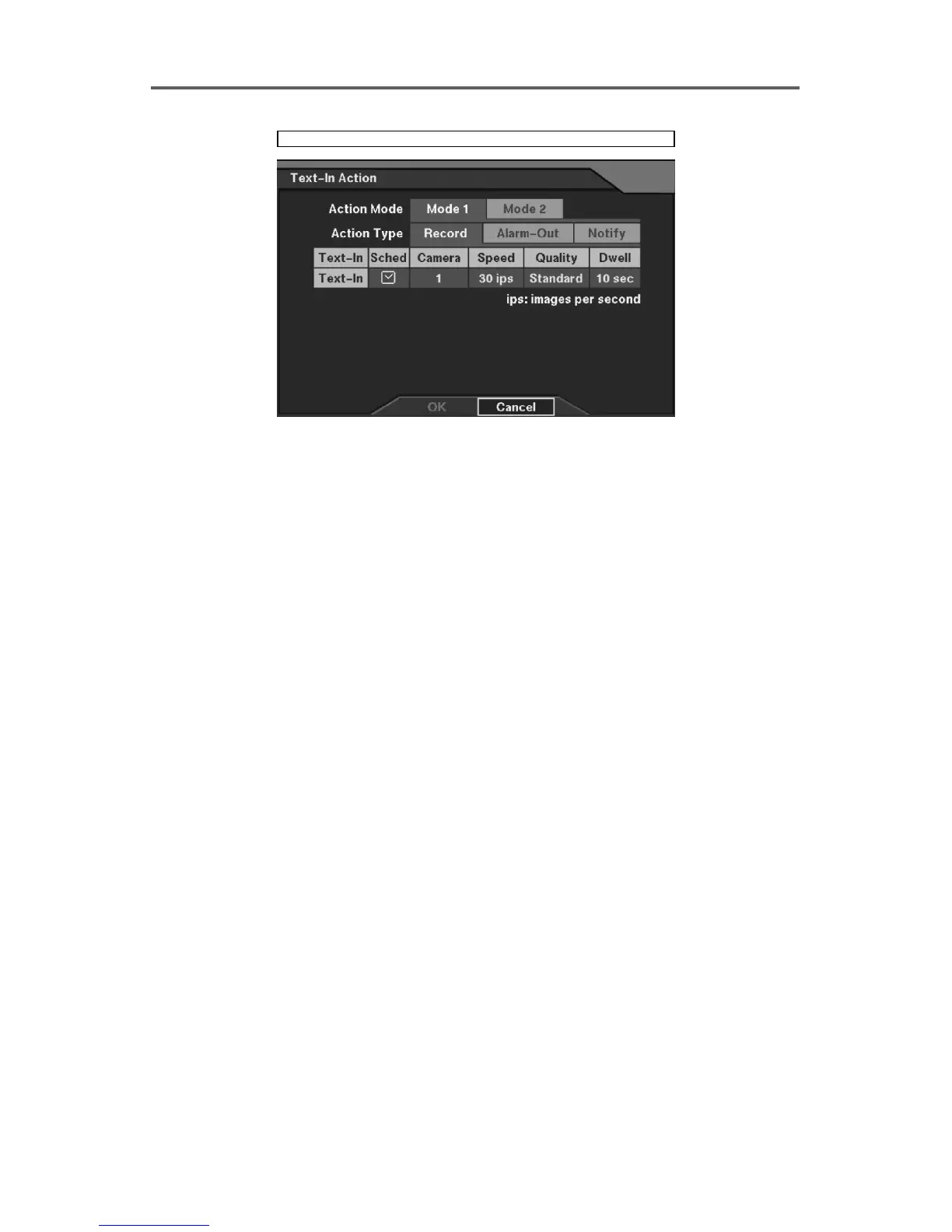

Figure 23 Text-In Action ─ Record Setup Dialog
Set up the event-driven recording in case of text-in detection.
Action Type ─ Record: Set up the camera to record in case of text-in detection.
• Sched: Set the operating mode by time of the selected camera in case of text-in detection
(Refer to Figure 21 Alarm-In Action Schedule Setup Dialog.).
• Camera: Select the camera(s) to record in case of text-in detection.
NOTE: Multiple cameras can be selected.
• Speed: Set the recording speed of an associated camera in case of text in detection
(1/5ips~30ips).
• Quality: Set the recording image quality of an associated camera in case of text-in detection
(Very High, High, Standard, and Low).
• Dwell: Set the recording dwell time of an associated camera in case of text-in detection
(1sec~300sec).
Action Type ─ Alarm-Out: Set up the alarm-out in case of text-in detection (Refer to Figure
33 Text-In Action ─ Alarm-Out Setup Dialog.).
Action Type ─ Notify: Set up the Notify function in case of text-in detection (Refer to Figure
42 Text-In Action ─ Notify Setup Dialog, Network-supported premium model only).
