Event Action ► Alarm-In Action ► Alarm-Out

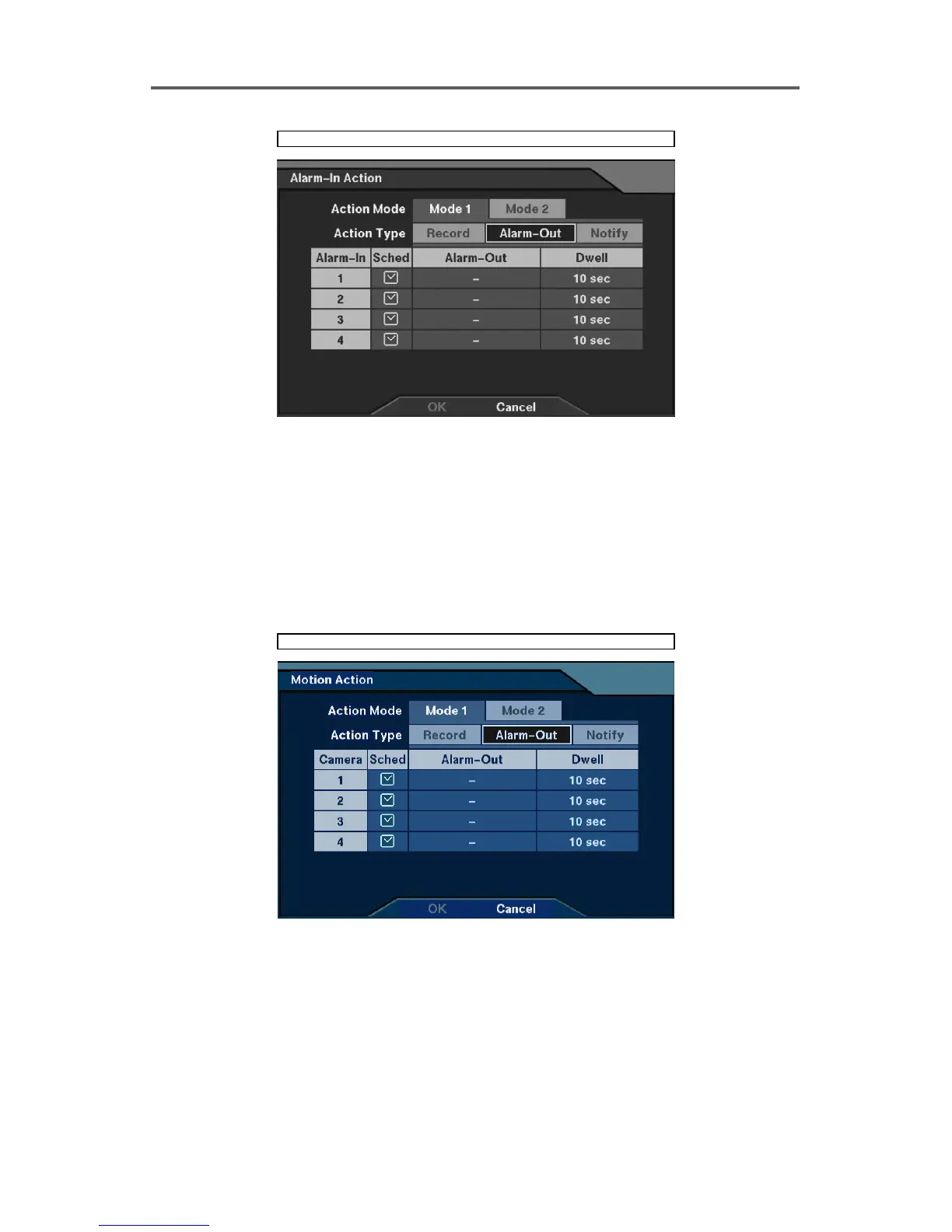

Figure 31 Alarm-In Action ─ Alarm-Out Setup Dialog
Set up the alarm-out in case of alarm-in detection.
• Sched: Set the operating mode of the target alarm-out by time in case of alarm-in detection
(Refer to Figure 21 Alarm-In Action Schedule Setup Dialog.).
• Alarm-Out: Select the alarm-out device to associate in case of alarm-in detection (multiple
selections among Alarm-Out 1, 2 and Beep available).
• Dwell: Set the dwell time of an associated alarm-out device in case of alarm-in detection (1
sec~300 sec).
Event Action ► Motion Action ► Alarm-Out
Figure 32 Motion Action ─ Alarm-Out Setup Dialog
