Chapter 9 External Interfaces — GPI input/output settings and alarm output

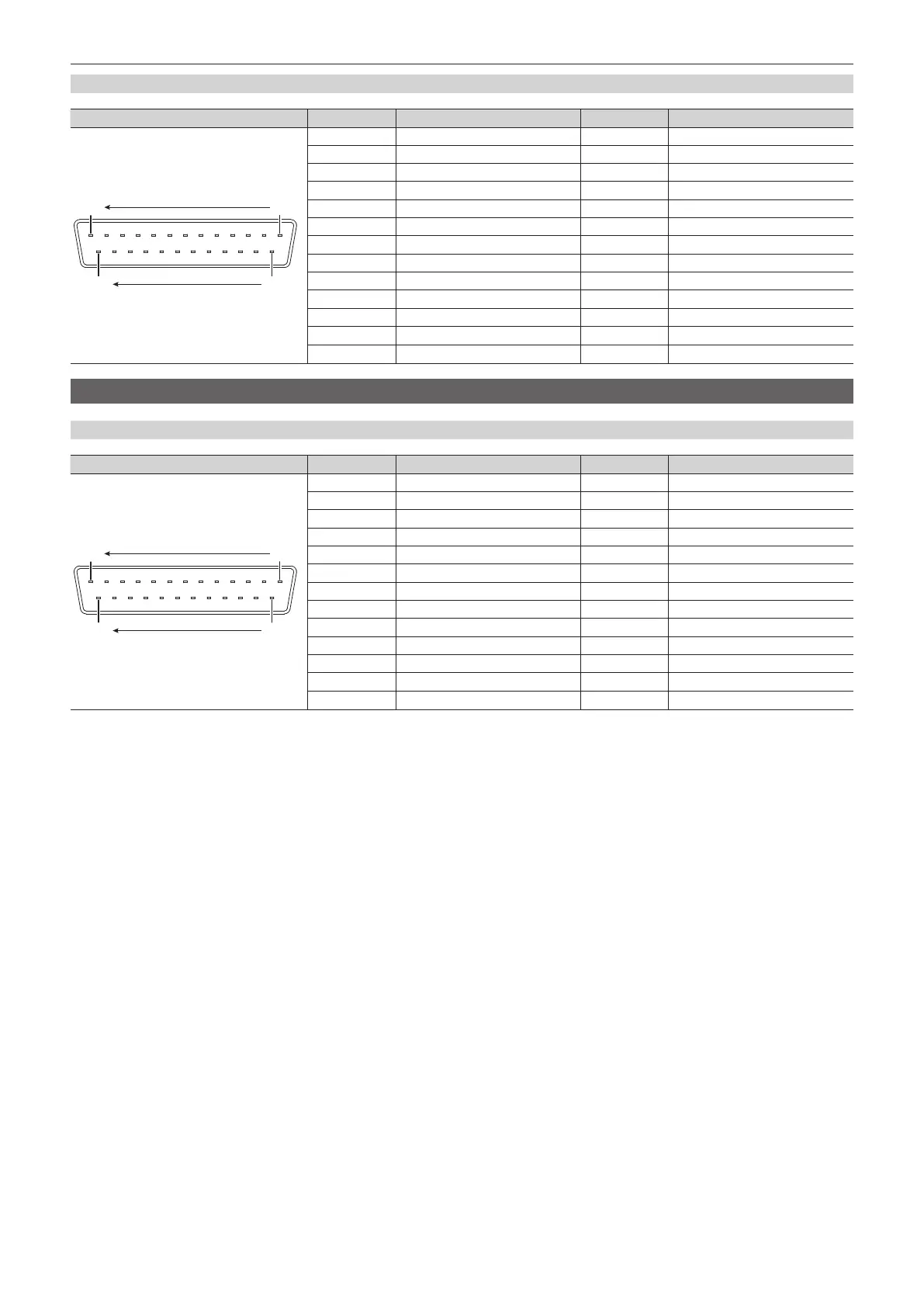

Pin assignments and signal names of the <GPI IN> terminal
Outside view Pin No. Signal name Pin No. Signal name
1
1425
13
1 GPI IN-1 14 GPI IN-13
2 GPI IN-2 15 GPI IN-14
3 GPI IN-3 16 GPI IN-15
4 GPI IN-4 17 GPI IN-16
5 GPI IN-5 18 GPI IN-17
6 GPI IN-6 19 GPI IN-18
7 GPI IN-7 20 COM (GND)
8 GPI IN-8 21 ALARM OUT
9 COM (GND) 22 NC
10 GPI IN-9 23 NC
11 GPI IN-10 24 NC
12 GPI IN-11 25 COM (GND)
13 GPI IN-12
GPI input/output ports of the Control Panel AV‑HS60C1/AV‑HS60C2
Pin assignments and signal names of the <GPI I/O> terminal
Outside view Pin No. Signal name Pin No. Signal name
1
1425
13
1 GPI IN-1 14 GPI OUT-5
2 GPI IN-2 15 GPI OUT-6
3 GPI IN-3 16 GPI OUT-7
4 GPI IN-4 17 GPI OUT-8
5 GPI IN-5 18 GPI OUT-9
6 GPI IN-6 19 GPI OUT-10
7 GPI IN-7 20 COM (GND)
8 GPI IN-8 21 ALARM OUT
9 COM (GND) 22 NC
10 GPI OUT-1 23 NC
11 GPI OUT-2 24 NC
12 GPI OUT-3 25 COM (GND)
13 GPI OUT-4
