Panasonic AV-HS6000 - Key Decorations

– 60 –
Chapter 5 Basic Operations — KEY

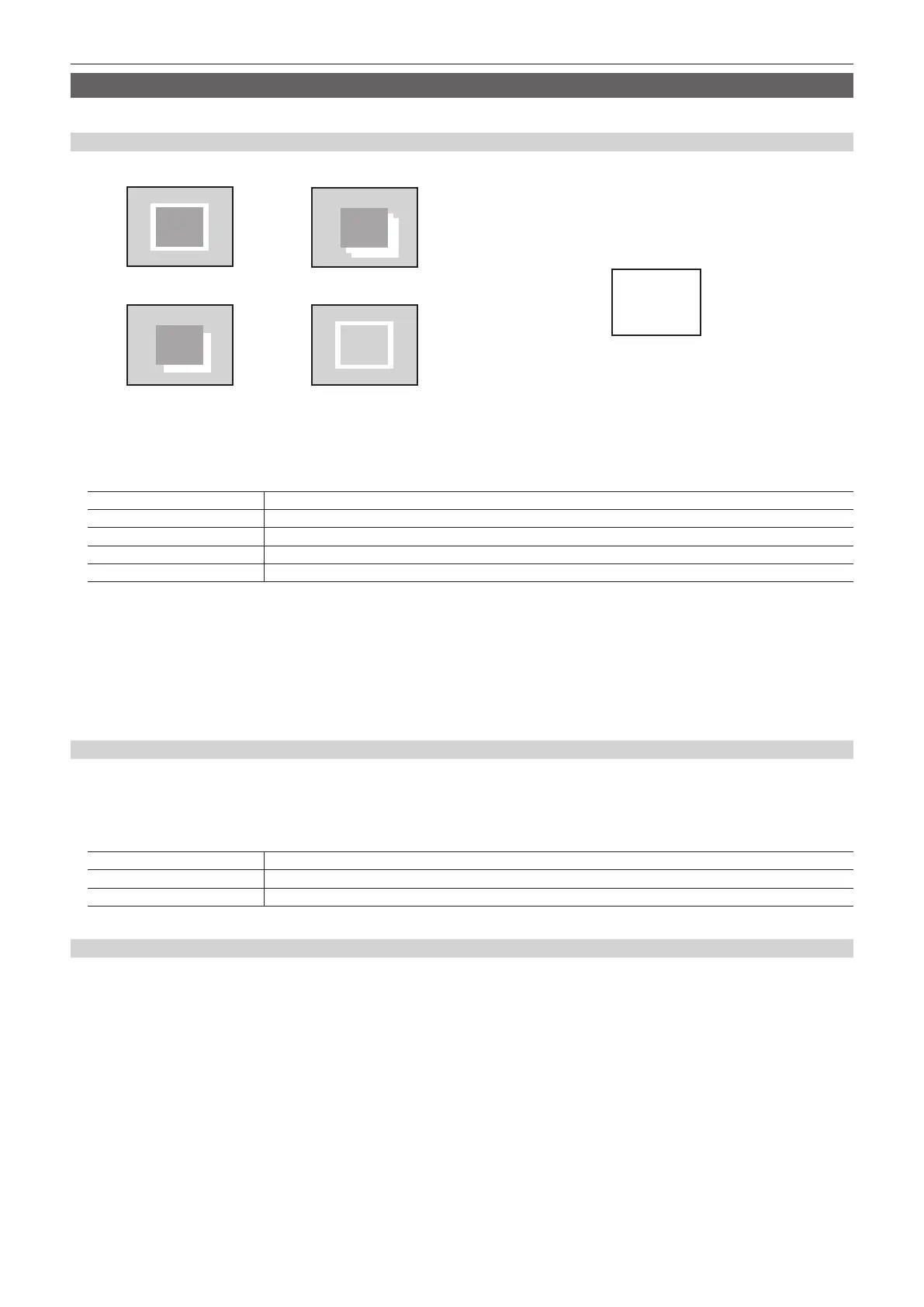

Key decorations
Add a border, shadow, or other edge to the key.
Setting the key edge
(Top)
[Border] [Drop]
[Shadow] [Outline]
(Bottom)
(Left) (Right)
Fig. 1 Fig. 2
[180] [225] [270]
[135] [315]
[90] [45] [0]
1
Select the <ME1>/<ME2> button → [KEY1] to [KEY4] → [Key Setting] tab.
2
Select an item in [Type] in the [Edge] column. (Fig. 1)
[Off] Does not add an edge.
[Border] Adds a border around the entire edge.
[Drop] Adds a diagonal border.
[Shadow] Adds a shadow.
[Outline] Adds an outline (only a border with no ll).
3
Set [Width] in the [Edge] column.
f Set the edge width.
4
Select an item in [Direction] in the [Edge] column. (Fig. 2)
f Set the direction to add [Drop] or [Shadow] effect in 45° increments.
5
Set [Density] in the [Edge] column.
f Set the edge density.
Setting the key edge ll
Set the source to be inserted as an edge.
1
Select the <ME1>/<ME2> button → [KEY1] to [KEY4] → [Key Setting] tab.
2
Select an item in [Fill] in the [Edge] column.
[Matte] Uses the color set in the [Edge Color] column.
[UTIL1]* Uses the image on the UTIL1 bus.
[UTIL2]* Uses the image on the UTIL2 bus.
* This function will be available in V2.00.00 or higher.
Setting the key edge color
1
Select the <ME1>/<ME2> button → [KEY1] to [KEY4] → [Key Setting] tab.
2
Adjust the color.
f Set [Hue], [Sat], [Lum], or [Color Palette] in the [Edge Color] column.
