– 67 –
Chapter 5 Basic Operations — DSK (Downstream key)

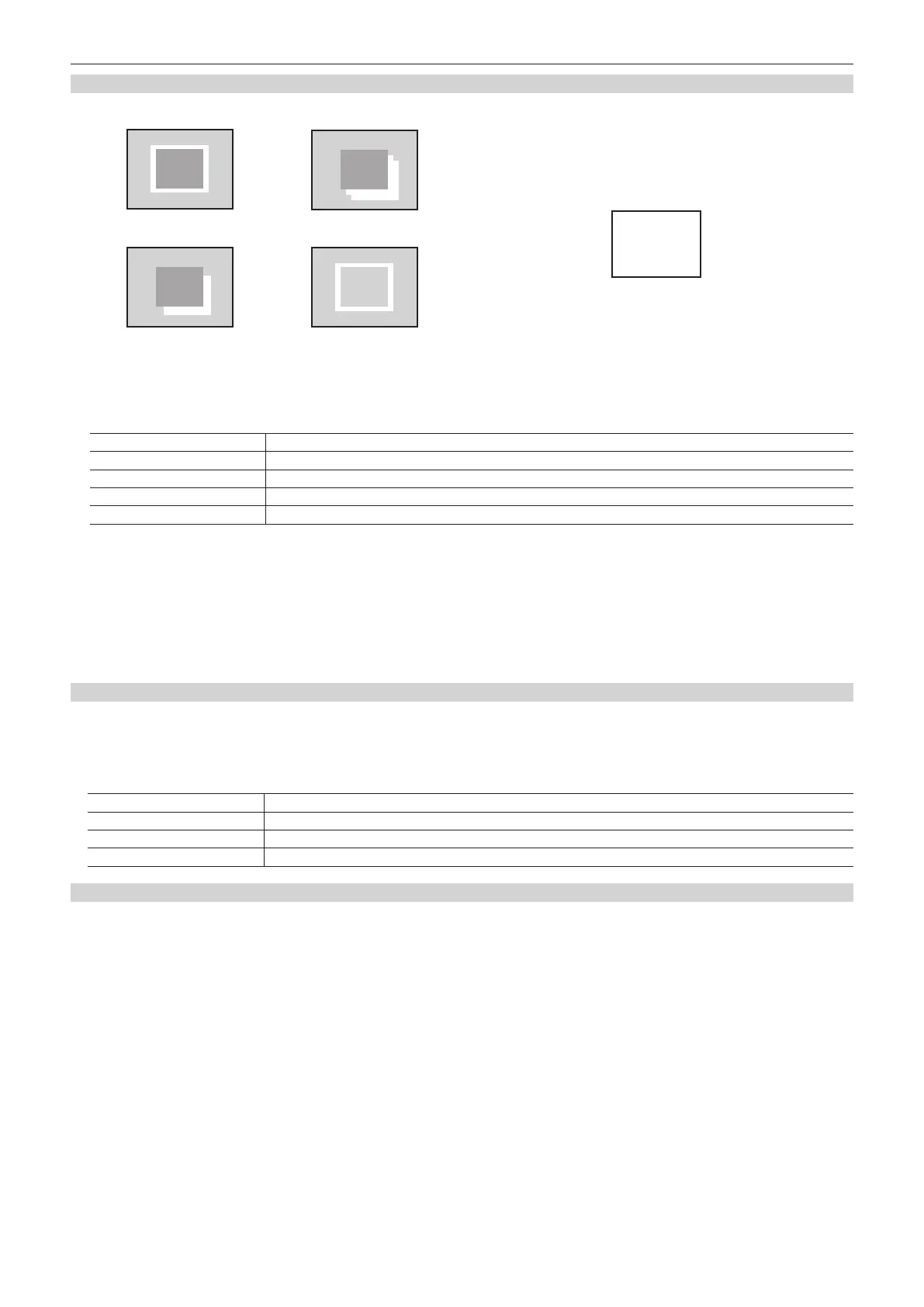

Setting the DSK edge
(Top)
[Border] [Drop]
[Shadow] [Outline]
(Bottom)
(Left) (Right)
Fig. 1 Fig. 2
[180] [225] [270]
[135] [315]
[90] [45] [0]
1
Select the <DSK MISC> button → [DSK1] to [DSK4] → [Setting] tab.
2
Select an item in [Type] in the [Edge] column. (Fig. 1)
[Off] Does not add an edge.
[Border] Adds a border around the entire edge.
[Drop] Adds a diagonal border.
[Shadow] Adds a shadow.
[Outline] Adds an outline (only a border with no ll).
3
Set [Width] in the [Edge] column.
f Set the edge width.
4
Select an item in [Direction] in the [Edge] column. (Fig. 2)
f Set the direction to add [Drop] or [Shadow] effect in 45° increments.
5
Set [Density] in the [Edge] column.
f Set the edge density.
Setting the DSK edge ll
Set the source to be inserted as an edge.
1
Select the <DSK MISC> button → [DSK1] to [DSK4] → [Setting] tab.
2
Set [Fill] in the [Edge] column.
[Matte] Uses the color set in the [Edge Color] column.
[CBGD 1], [CBGD 2] Uses the color background.
[Still1] ‑ [Still4] Uses the still image video memory.
[Clip1] ‑ [Clip4] Uses the moving image video memory.
Setting the DSK edge color
1
Select the <DSK MISC> button → [DSK1] to [DSK4] → [Setting] tab.
2
Adjust the color.
f Set [Hue], [Sat], [Lum], or [Color Palette] in the [Edge Color] column.
