10.2 System Register Settings
10.2.1 System Register Settings (Transistor Output Type)
Functions to be used are allocated in the "System register settings" dialog box. The following
procedure is explained on the condition that the FPWIN GR7 has already started.
1. Select Options>System register settings from the menu bar.
The "PLC Configuration" dialog box appears.
2. Select "Controller input setting 1 (HSC / PLS)" or "Controller input setting 2 (HSC / PLS)"
from the left pane.
The setting menu for the system register “No. 400" or “No. 401” appears.
3. Change the settings for the channels used for the high-speed counter.

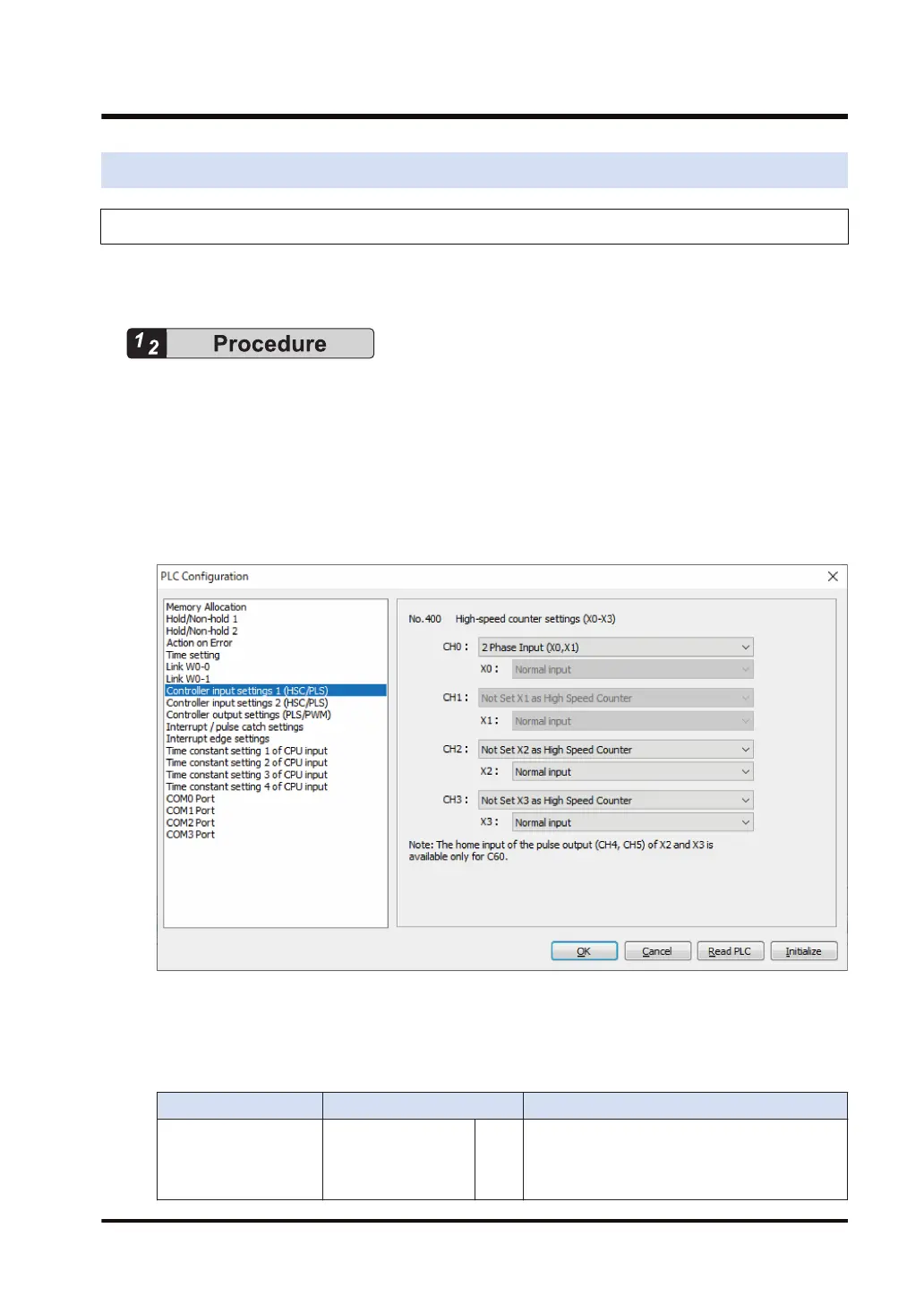

The following figure shows the case when 2-phase input (X0, X1) is allocated to CH0.
4. Press the [OK] button.
The screen returns to the ladder edit screen. The settings will be downloaded to the PLC
together with programs and comments.
System register relating to high-speed counter output
Classification No. and setting item Settings
Control Unit input
settings 1
(HSC / PLS)
400
High-speed counter
setting
(X0 to X3)
CH0
Select either Addition input (X0), Subtraction
input (X0), 2-phase input (X0, X1), Individual
input (X0, X1), or Direction distinction input (X0,
X1).
