Configurator PMX setting items
Parameter name Unit Default Settings
Positioning repeat count times 0
0 or 1 Not repeat an operation.
2 to 254
Repeat an operation for a specified
number of times.
255 Repeat an operation infinitely.
■

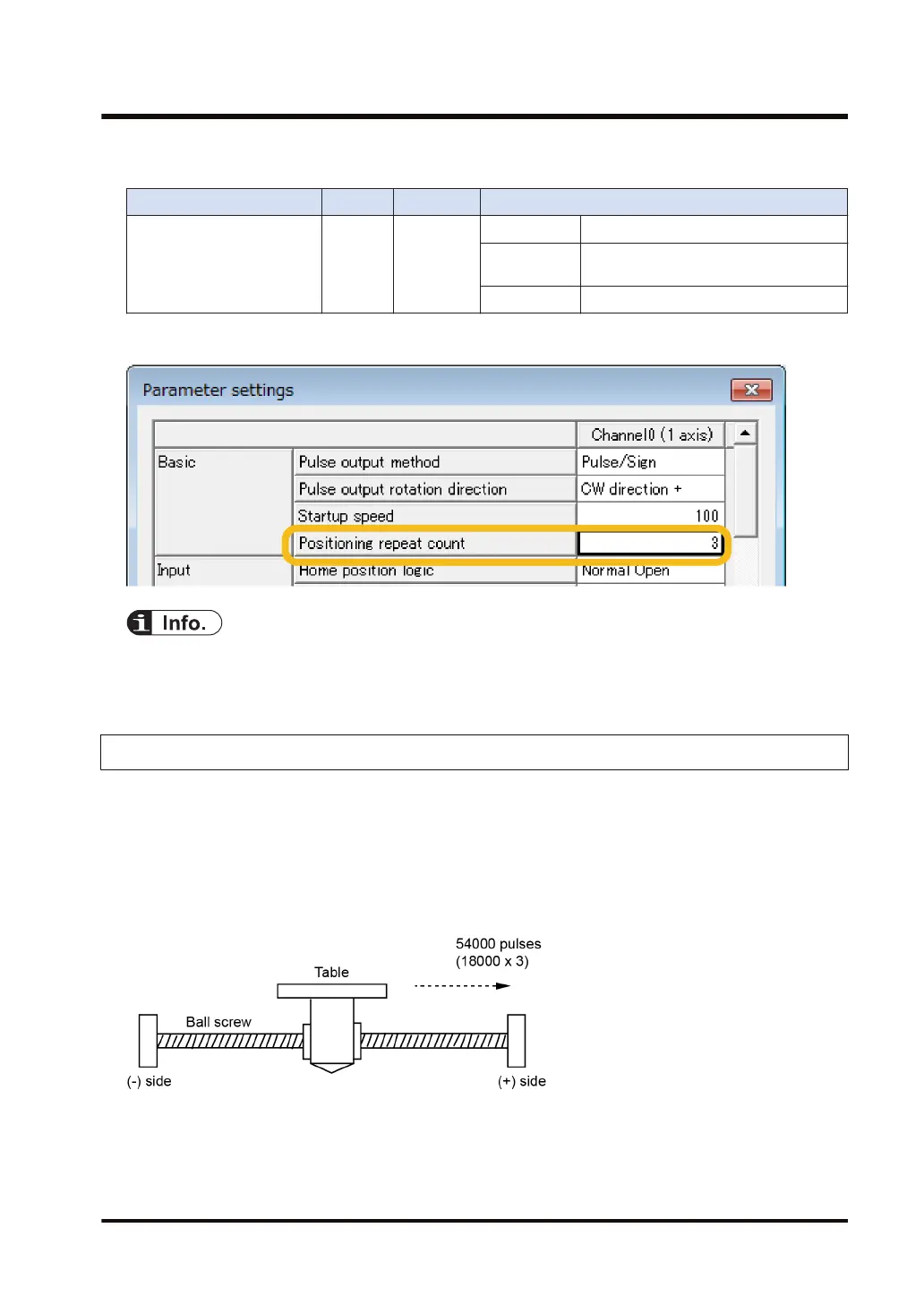

Configurator PMX settings
● When selecting “255: Repeat infinitely” in the parameter of positioning repeat count, create a
program to stop the operation using the deceleration stop function.
5.5.2 Settings and Operations of Repeat Operation
● The parameter for the repeat count is specified in the positioning parameter setting menus of
Configurator PMX.
● When the positioning table start instruction (F380 POSST) or positioning simultaneous start
instruction (F383 MPOST) is executed, the pulse output will start.
● After starting the instruction, the unit executes the pulse output for a specified repeat count
and then stops the operation. For setting to execute the operation infinitely, use this function
in combination with the deceleration stop function.
