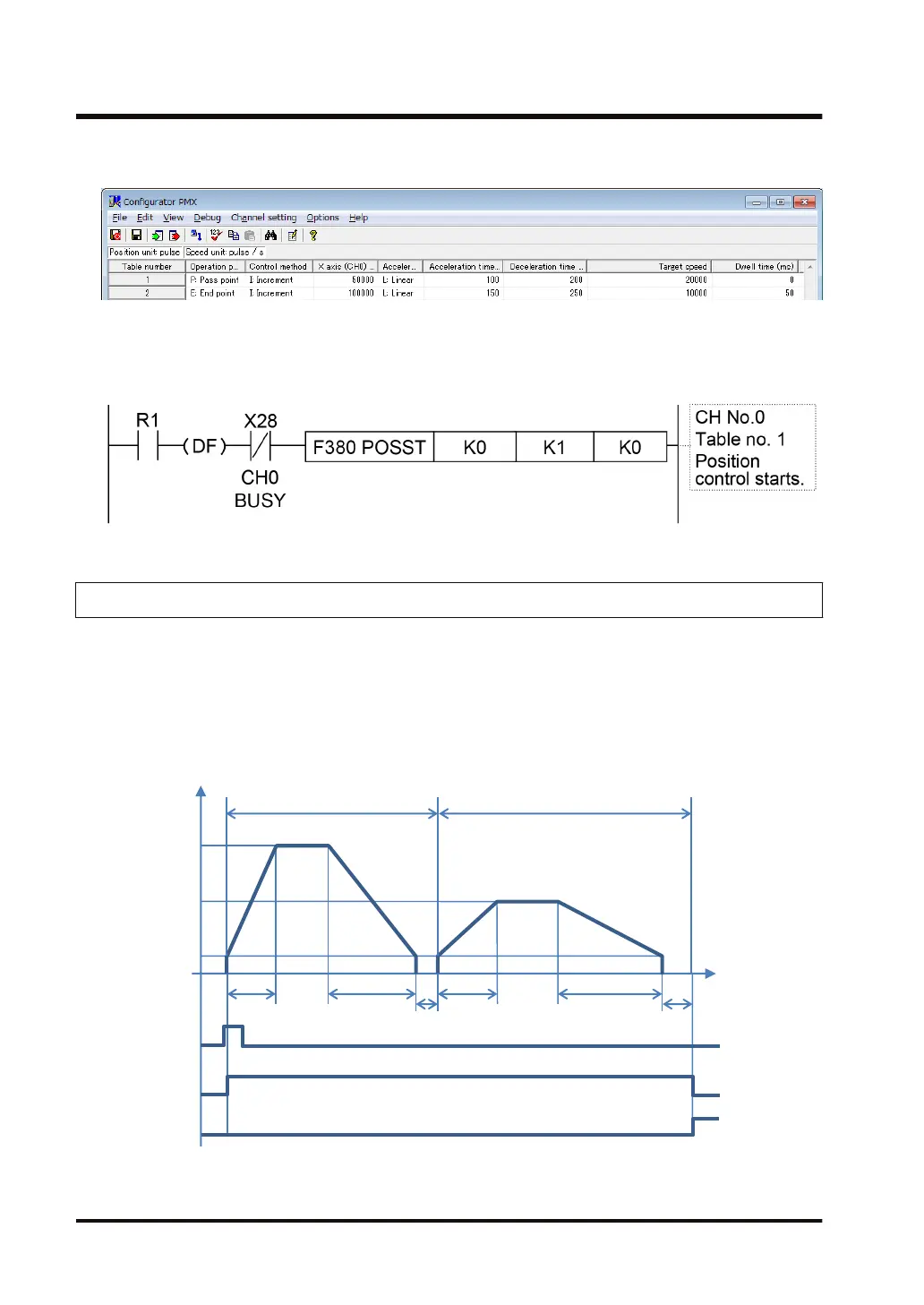

Panasonic FP-XH Series

■
Configurator PMX settings
■
Sample program
The execution condition is differential execution. For details of instructions, refer to
"7 Instruction References".
5.4.4 C-point Control
● The parameters for position control operations are specified in the positioning parameter
setting menus and data tables of Configurator PMX.
● When the positioning table start instruction (F380 POSST) or positioning simultaneous start
instruction (F383 MPOST) is executed, the pulse output will start and the positioning control
operation will be performed.
■
Operation diagram
t [ms]
f [Hz]
100ms
50ms
100,000
pulses
20,000Hz
1,000Hz
10,000Hz
200ms
250ms
50,000
pulses
150ms
30ms
Instruction
start condition
Busy signal
Operation
done signal
Table 1 Table 2
5.4 Positioning Control
5-20 WUME-FPXHPOSG-01
