Code Value Description
(e)
Target value 1: OFF
set value
When subtracted: When the elapsed value falls below the OFF set value, the
cam output turns ON, and when it falls below the ON set value, it turns OFF.
(f)
Target value 1: ON set
value
(1) Execution condition
When the execution condition turns ON from OFF, the instruction is executed
and the cam control starts.
(2)
High-speed counter
instruction
active flag
The high-speed counter instruction active flag turns ON during the execution
of the instruction. When the high-speed counter control instruction F0 (MV) is
executed, it turns OFF.
(3) Cam output The output turns ON/OFF according the set values.
(4) Interrupt
In the case of addition, when the elapsed value reaches the ON set value,
the interrupt program is started.
(5)
Clear high-speed
counter instruction
By the high-speed counter control instruction F0 (MV), when the bit 3 of the
special data register DT90052 turns ON from OFF, the executed F165
(CAM0) instruction is cleared.
■

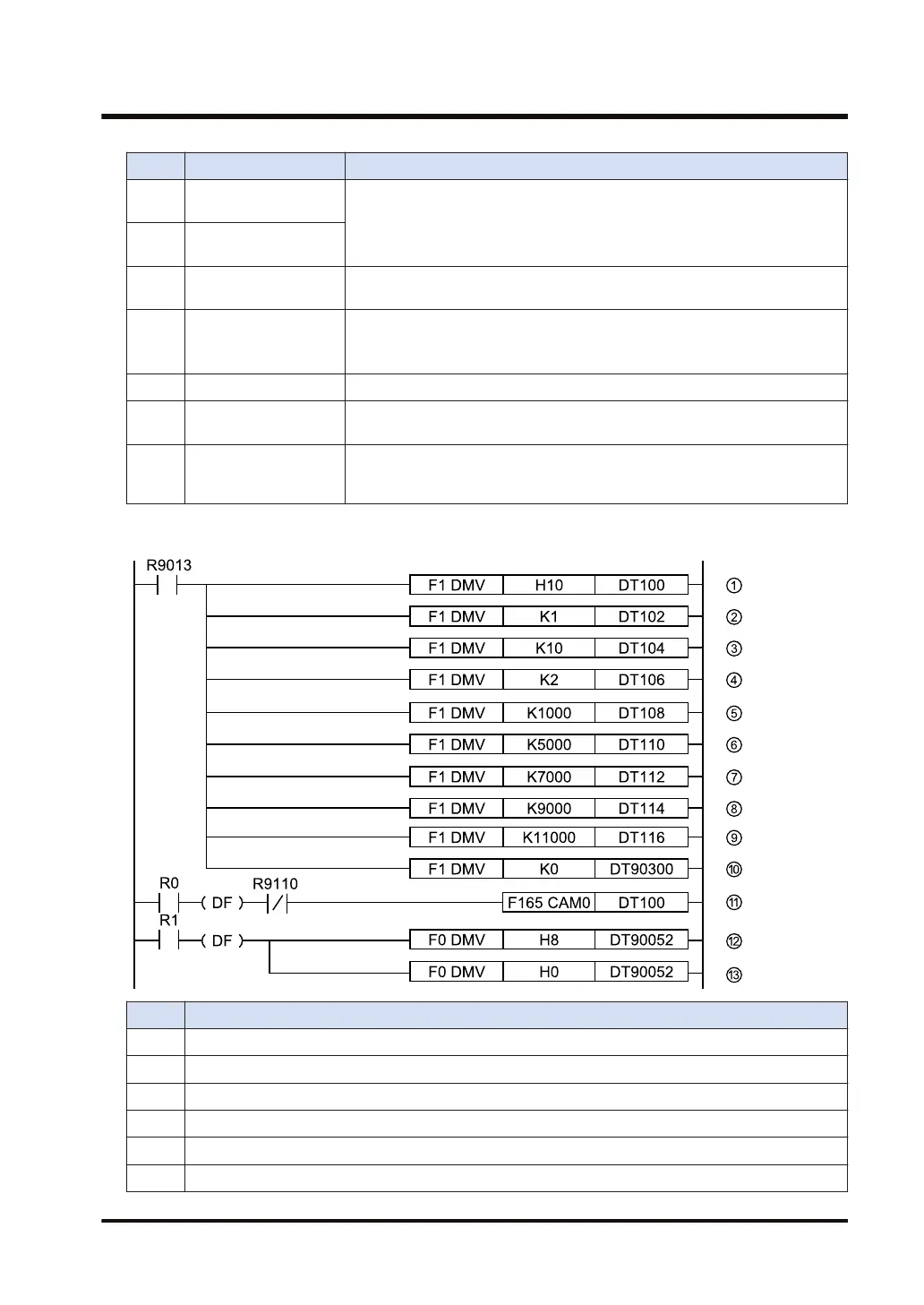

Sample program
Code Description
(1) High-speed counter channel H10: Performs the upper limit control, CH0
(2) Cam output device type K1: Internal relay (R)
(3) Word number of cam output device K10
(4) Specification of the number of target values K2
(5) Target value 1: ON set value K1000
(6) Target value 1: OFF set value K5000
10.4 High-speed Counter Cam Control Instruction
WUME-FPXHPOSG-01 10-27
