Allocation of I/O relating to high-speed counter control
● By using the special data register DT90052 by the high-speed counter control instruction
(F0), operations such as the software reset of the high-speed counter and disabling /
enabling the count can be performed.
● When controlling the above functions using external inputs, arbitrary inputs can be allocated.

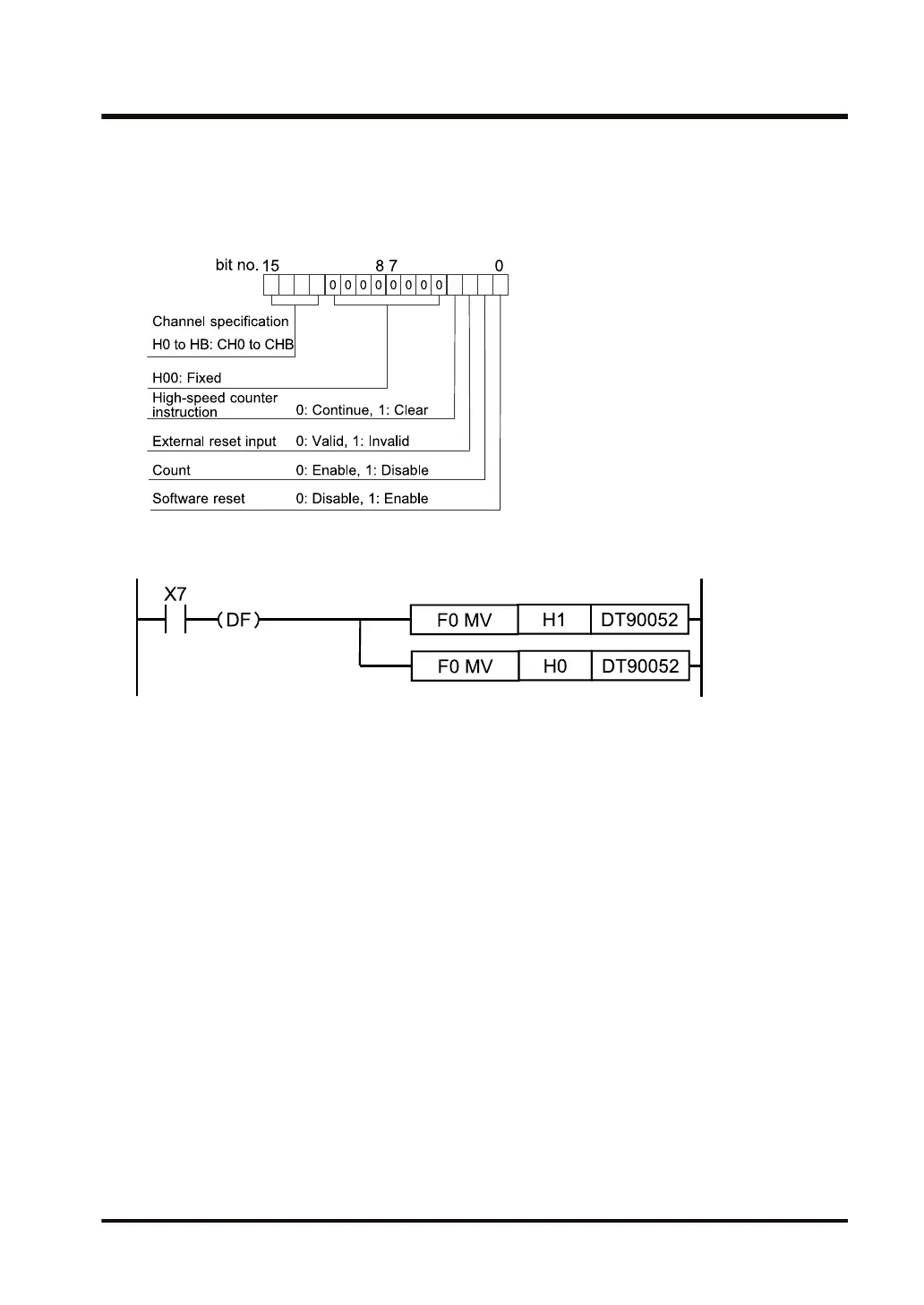

The following program is for performing the software reset of CH0 using the input X7.
