PennEngineering Haeger 824 WindowTouch-4e - Station 3 Insertion

17-00001-C Page | 105
137.
138.
139.

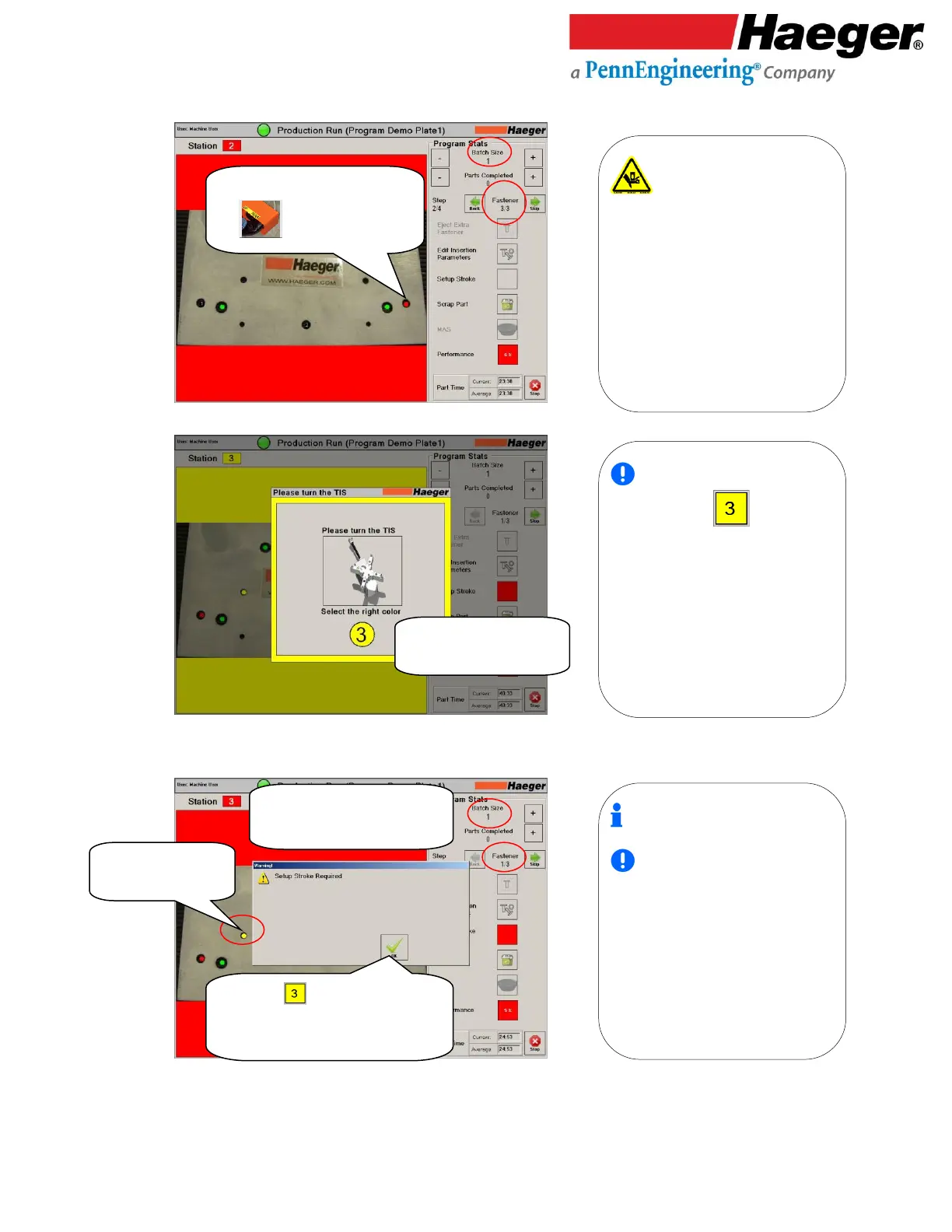

Station 3 Insertion
Upper tool in motion
TIS is now UNLOCKED, allowing you
to turn it to Station . When in the
correct position, the machine will
automatically lock the TIS.
Manually Place Fastener
Setup Stroke: Saves all the setup
values such as Fastener pick up point,
vacuum detection, length and tooling test.
• Ready for 3
rd
of 3 insertions
• Depress footswitch
• Turn TIS to STATION 3
• Station tooling and fastener
is in place & ready
• Touch on OK
• Manually place fastener
into upper tool
• 1
st
of 3 insertion
points
