Station 4 Insertion

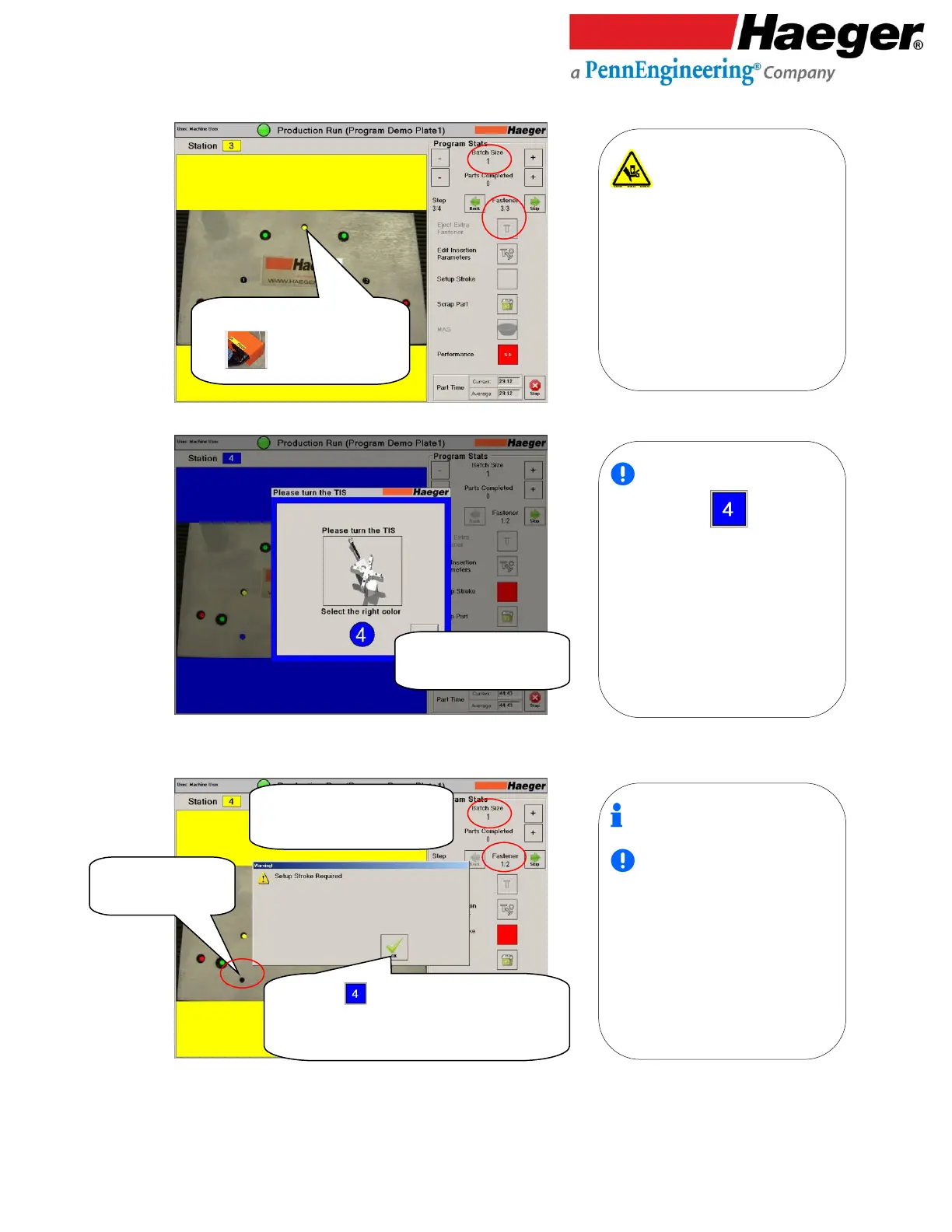

Upper tool in motion
TIS is now UNLOCKED, allowing you
to turn it to Station . When in the
correct position, the machine will
automatically lock the TIS.
Manually Place Fastener
Setup Stroke: Saves all the setup
values such as Fastener pick up point,
vacuum detection, length and tooling test.
• Ready for 3
rd
of 3 insertions
• Depress footswitch
• Turn TIS to STATION 4
• 1
st
of 2 insertion
points
• Station tooling and fastener is in place
& ready
• Touch on OK
• Manually place fastener
into upper tool
