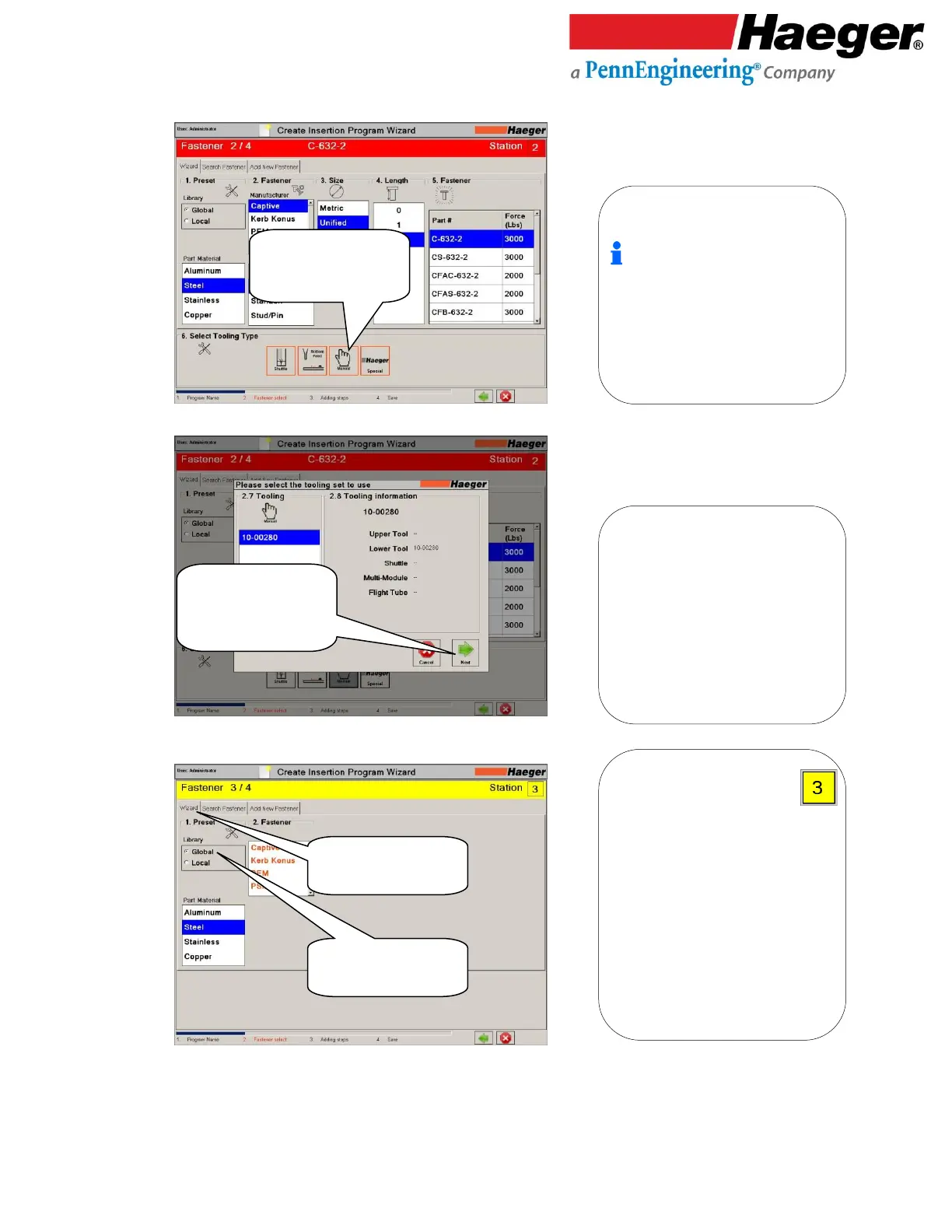

Program Wizard (Manual, Station 3 of 4)
• Select Tooling Type
• Touch on MANUAL
• Verify Tooling Is
Correct
• Touch on NEXT
Repeat Wizard to program STATION
* This time, let’s select a Steel Captive Stud
CH-632-6 for our fastener 3 of 4.
1. Preset Library:
➢ Global: Includes Pre-loaded
fasteners from different
manufactures in software
database.
➢ Local: User added fasteners to
their machine via the ADD NEW
FASTENER tab on this screen
• Touch on the
WIZZARD Tab
• Touch on GLOBAL
6. Select Tooling Type:
Stations 2 through 4 are manually
operated stations.
2.7 Tooling:
2.8 Tooling Information:
