PennEngineering Haeger 824 WindowTouch-4e - Parts List - Motor Pump Assembly

17-00001-C Page | 165

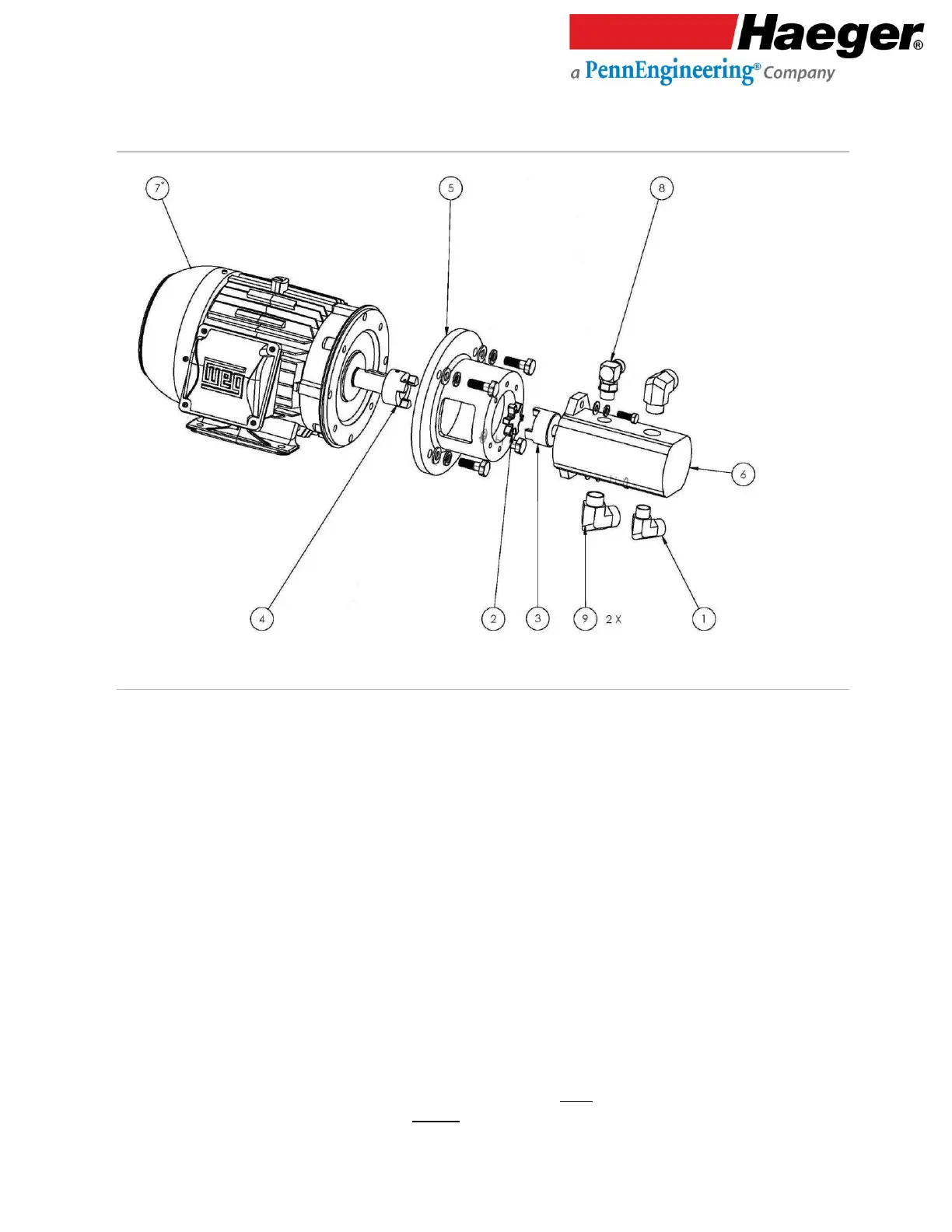

Parts List – Motor Pump Assembly
Parts List – Motor Pump Assembly (cont’d)
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
1
15-01142
MB-MJ 90 5/8" - 3/4" MALE BOSS TO MALE JIC
1
2
15-01127
SPIDER, 824OT/WT
1
3
15-01126
COUPLER HALF, L095 (5/8 X 3/16)
1
4
15-01125
COUPLER HALF, L095 (1-1/8 X 1/4)
1
5
15-01124
COUPLER 8.5 "A" PUMP / 4.75 LONG
1
6
15-01123
PUMP 824 HS
1
7*
15-00077
MOTOR, 5 HP, 1800 RPM, 50/60 HZ, 208/440 V
1
8
15-00062
FITTING, 5/8XJICX5/8 O-RING 90
1
9
15-01143
COUPLER, MB-MJ 90 3/4" - 1" MALE BOSS TO MALE JIC 90
2
* For 575 Model machines, use part # 15-00394 ( MOTOR, 5 HP, 575 V) -- in lieu of the MOTOR, 5 HP,
208/440 V shown above.
