PLC, I/O List

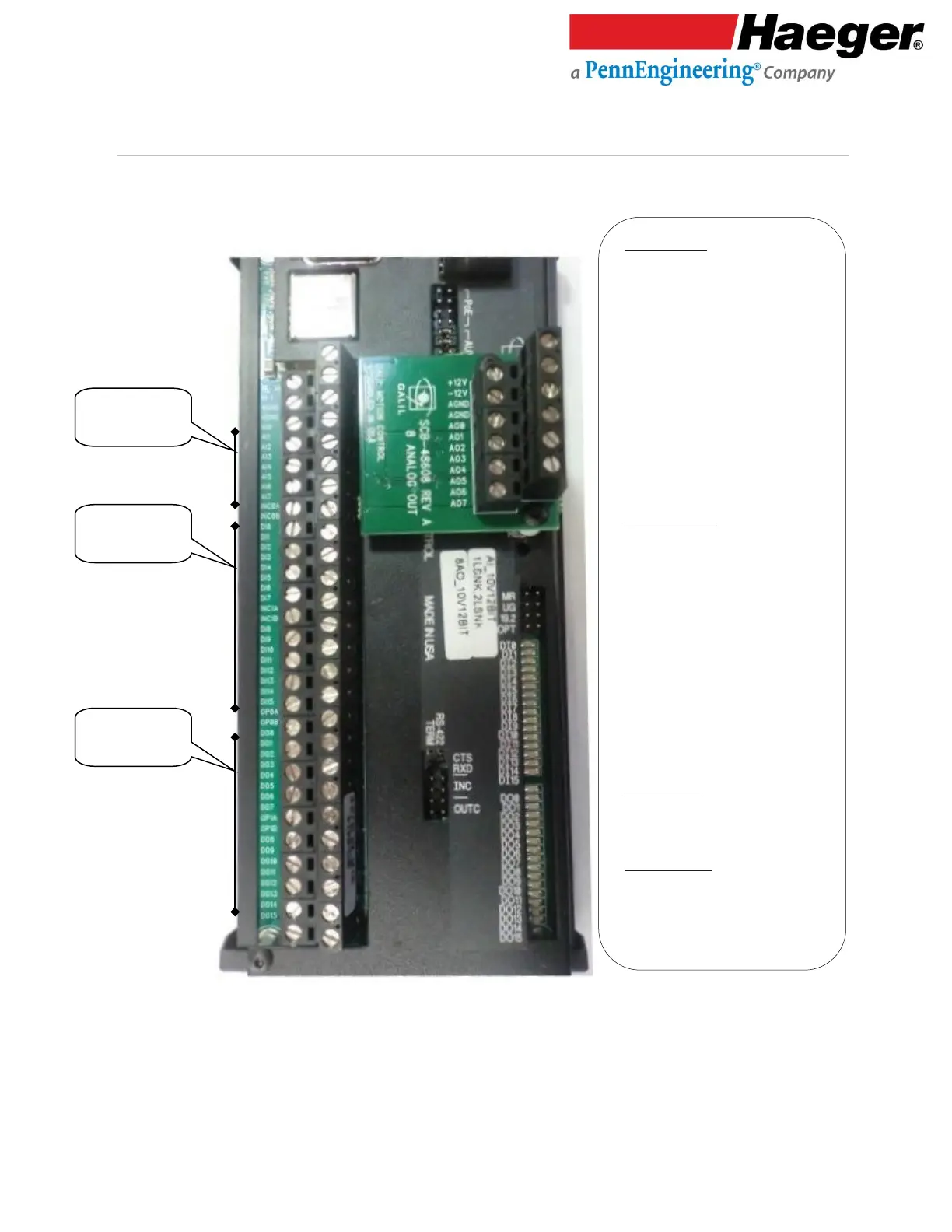

PLC I/O
AI
(Analog Inputs)
DIGITAL INPUTS
DI0 Power On
DI1 Safety Switch 1
DI2 Safety Switch 2
DI3 Non-Conductive Key
DI4 Tool Contact 1
DI5 Tool Contact 2
DI6 Spare
DI7 Auto Cycle
DI8 Footswitch UP
DI9 Footswitch DOWN
DI10 Spare
DI11 TIS Sensor 1
DI12 TIS Sensor 2
DI13 TIS Sensor 3
DI14 Shuttle Retract
DI15 Shuttle Extend
DIGITAL OUTPUTS
DO0 Start Light
DO1 Stop Light
DO2 Buzzer
DO3 Non-Conductive Mode
DO4 Vacuum
DO5 Blow off
DO6 MAS Bowl Value
DO7 Spare
DO8 Ram UP
DO9 Ram DOWN
DO10 Bypass Valve
DO11 MAS Eject
DO12 MAS Blow off
DO13 TIS Lock
DO14 Spare
DO15 Shuttle Extend
Analog INPUTS
AI0 Ram Pressure
AI2 Vacuum Sensor
AI4 Ram Position
Analog OUTPUTS
AO0 Ram Force
AO6 MAS Vibration
DI
(Digital Inputs)
DO
(Digital Outputs)
