17-00001-C Page | 17

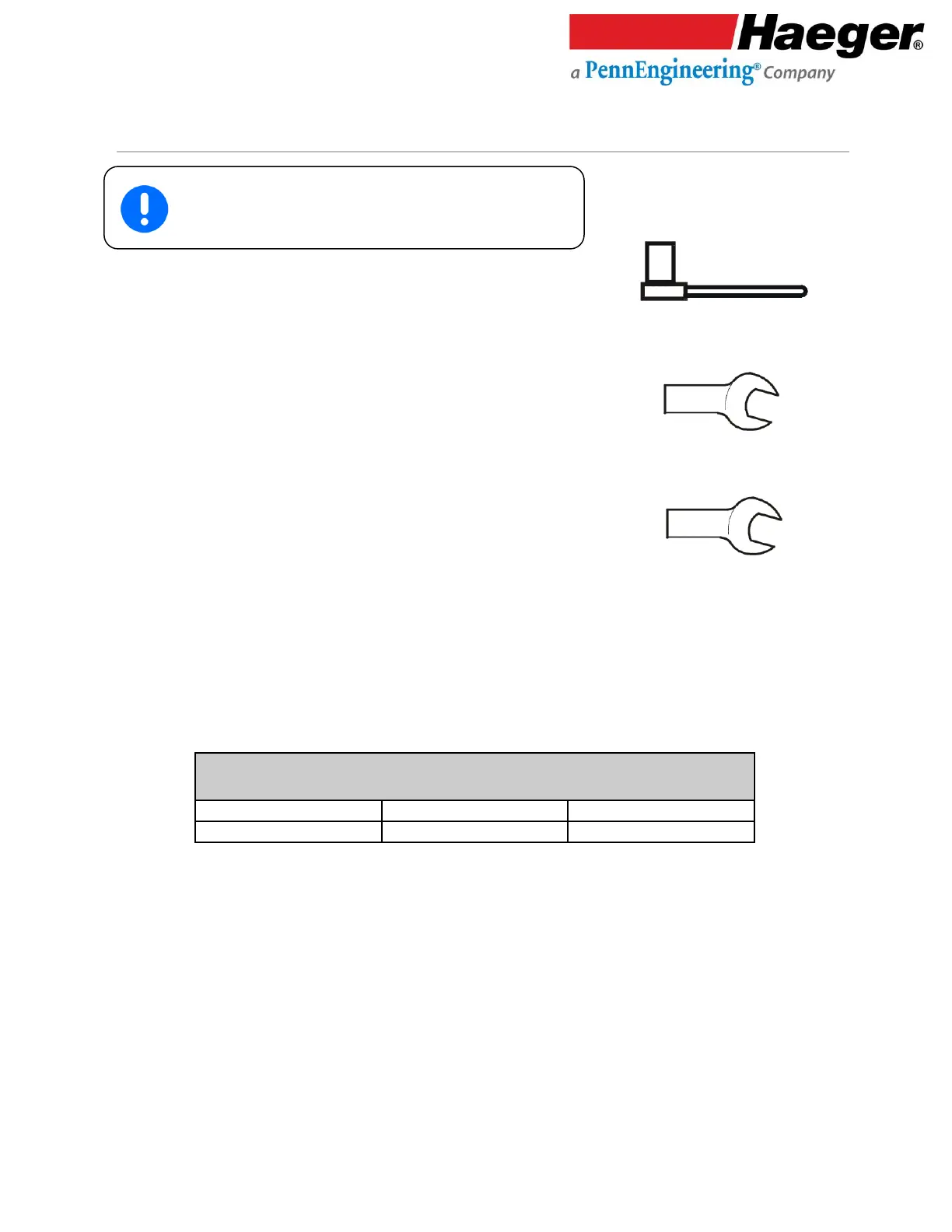

Skid removal
Skid Bolt: 9/16 in./13mm socket 9/16”/13mm socket wrench
Foot: 7/8 in./22 mm open end wrench 7/8 in./22 mm
15/16 in./24 mm open end wrench 15/16 in./24 mm
1. Uncrate the machine.
2. Remove the (8) lag screws that hold the machine
base to the shipping skid (2 on each plate).
3. Use the strap on the top of the machine frame and an appropriate sling for the weight of this
machine and lift it until it clears the skids.
The weight of the Haeger Hardware Insertion Machine and skids
are as follows:
4. Carefully move the machine away from the skids (or move the skids). Lower the machine onto the
floor.
5. Lower the nut on the foot and remove the plate.
6. Tighten the foot nut until it is flush with the bottom of the machine’s base.
▪ The feet are already installed on the machine.
▪ You will need to lift the machine to remove the skids.
▪ You will need to open three wrenches to adjust the feet.
