SECTION 4 – TOUCH SCREEN OPERATION (Step by Step Demo)
Window Touch-4e - Introduction
This section provides you, the operator, with all the information that you need to operate the Haeger
824 WindowTouch-3 safely and productively.
Make sure that you read and understand all of the descriptions, instructions and notes contained in
this section. Heed all of the Warnings and Cautions in this manual.
Your safety and productivity depend on it.

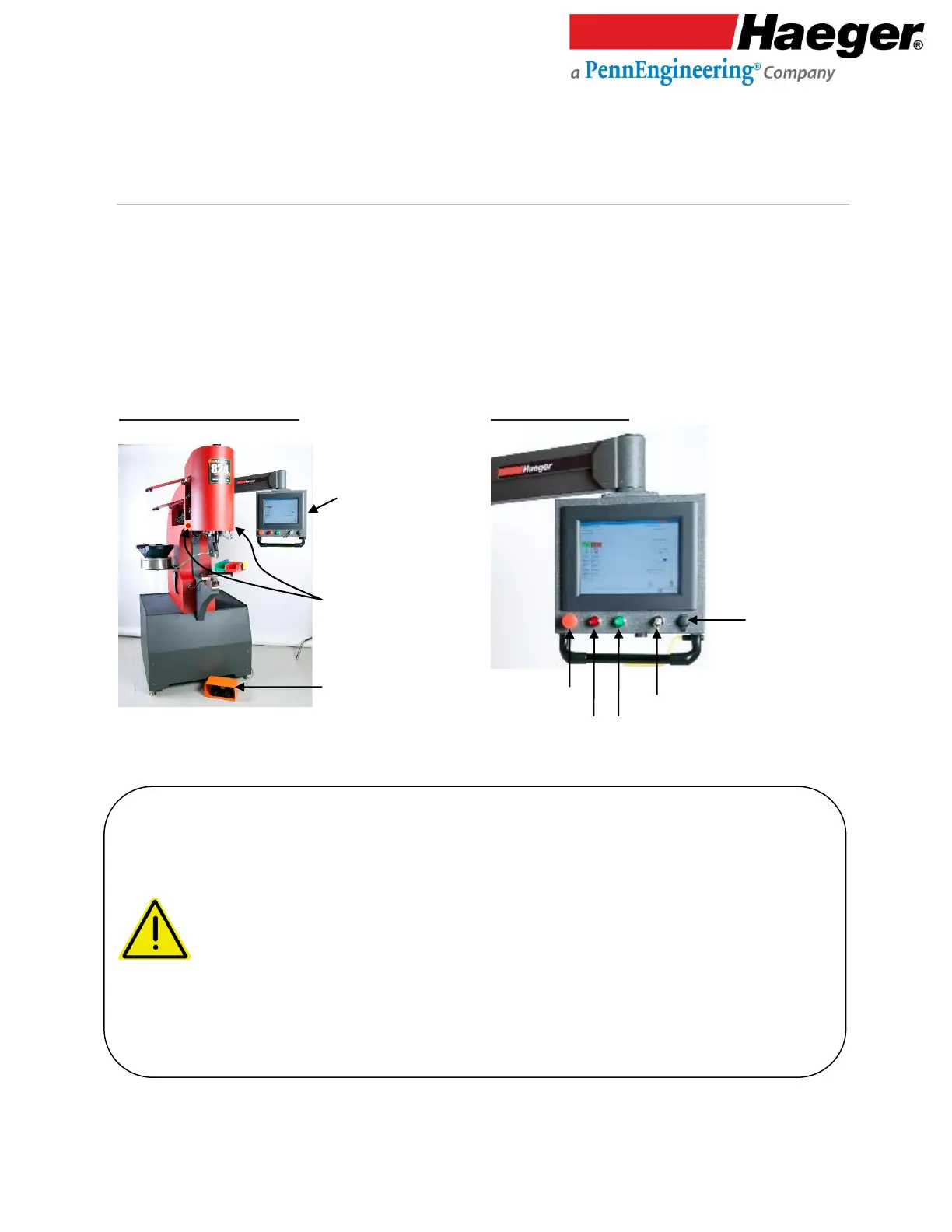

Machine Controls
Control Panel
➢ Read and understand all Warnings and Cautions in this manual and follow the instructions for testing the
Safety System in the Safety System section before attempting to operate this machine
➢ NEVER wear anything metallic that may come into contact with the Upper Tool, Lower Tool or
work piece (watches, rings, bracelets, etc.).
➢ Never leave your foot on or above the Down foot switch after you have completed a cycle of the
machine. Remove it from the Down foot switch. Keep your feet away from the Down foot switch
until your hands are clear of the tooling area and you intend to lower or raise the Upper Tool
Holder or insert hardware.
➢ NEVER Operate this Machine without wearing the proper eye protection!
Emergency Stop
Touch Screen
Machine ON Switch
Machine OFF Switch
Conductive / Non-conductive Switch
USB Port
Emergency Stop
Foot Switches
