17-00001-C Page | 97
113.

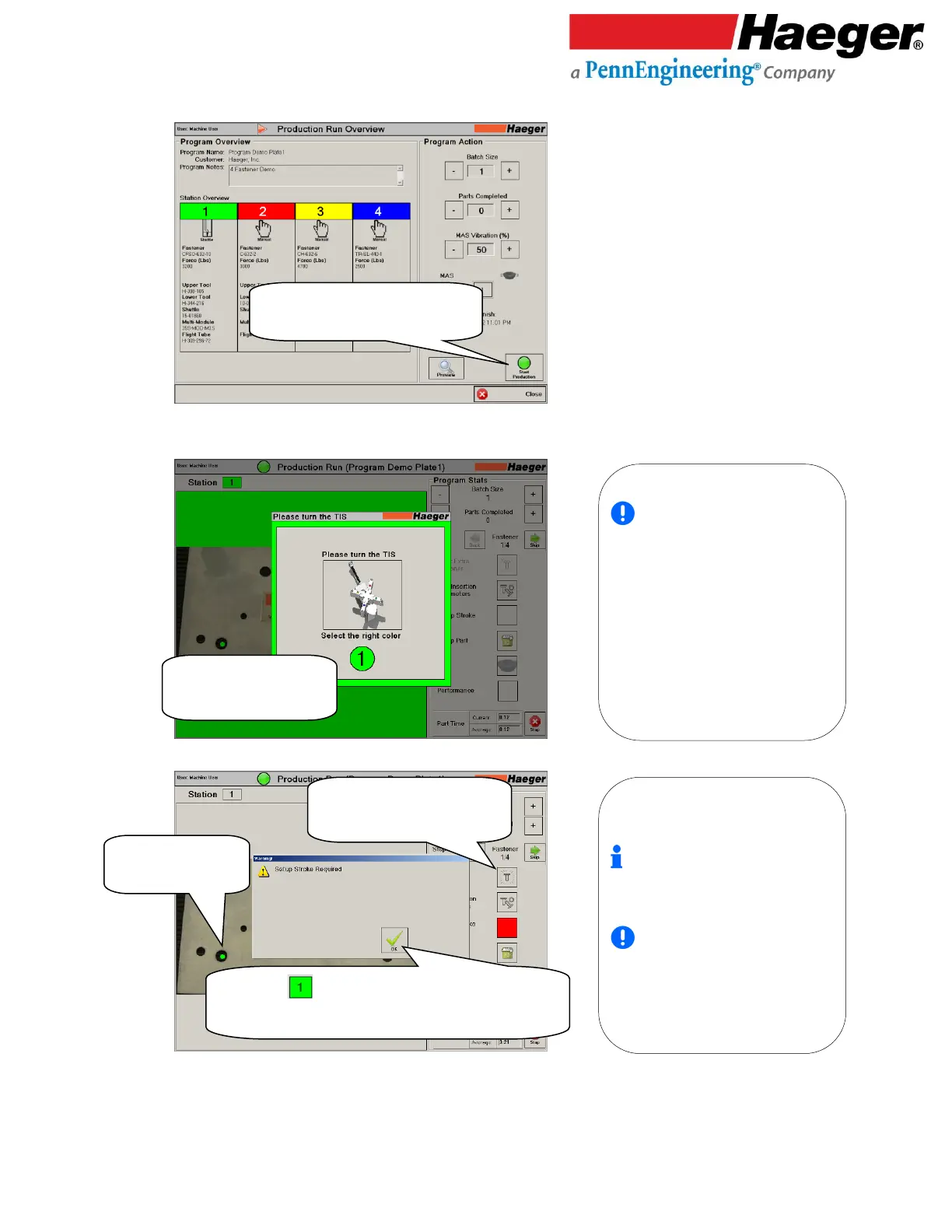

Station 1 Insertion – Start Production
114.
115.
Setup Stroke
TIS is now UNLOCKED, allowing you
to turn it to Station 1. When in the
correct position, the machine will
automatically lock the TIS.
SETUP STROKE REQUIRED
Eject Fastener: This feature allows the
operator to eject a fastener from the MAS
bowl to the automatic tooling system.
Setup Stroke: Saves all the setup
values such as Fastener pick up point,
vacuum detection, length and tooling test.
• Station tooling and fastener is in place & ready
• Touch on OK
• Touch on START PRODUCTION
• 1
st
of 4 insertion
points
• Eject or manually place
fastener into upper tool
To Next Page
