SECTION 6 – MACHINE MAINTENANCE
This maintenance schedule is applicable for standard machine shop operating conditions. When
operating under severe conditions such as heavy dust and dirt, increase the schedule to reflect
such conditions.
DO NOT lubricate the Upper Tool Holder with any lubricant other
than a small amount of lithium grease (white). ** Other products
may interfere with the Safety System.

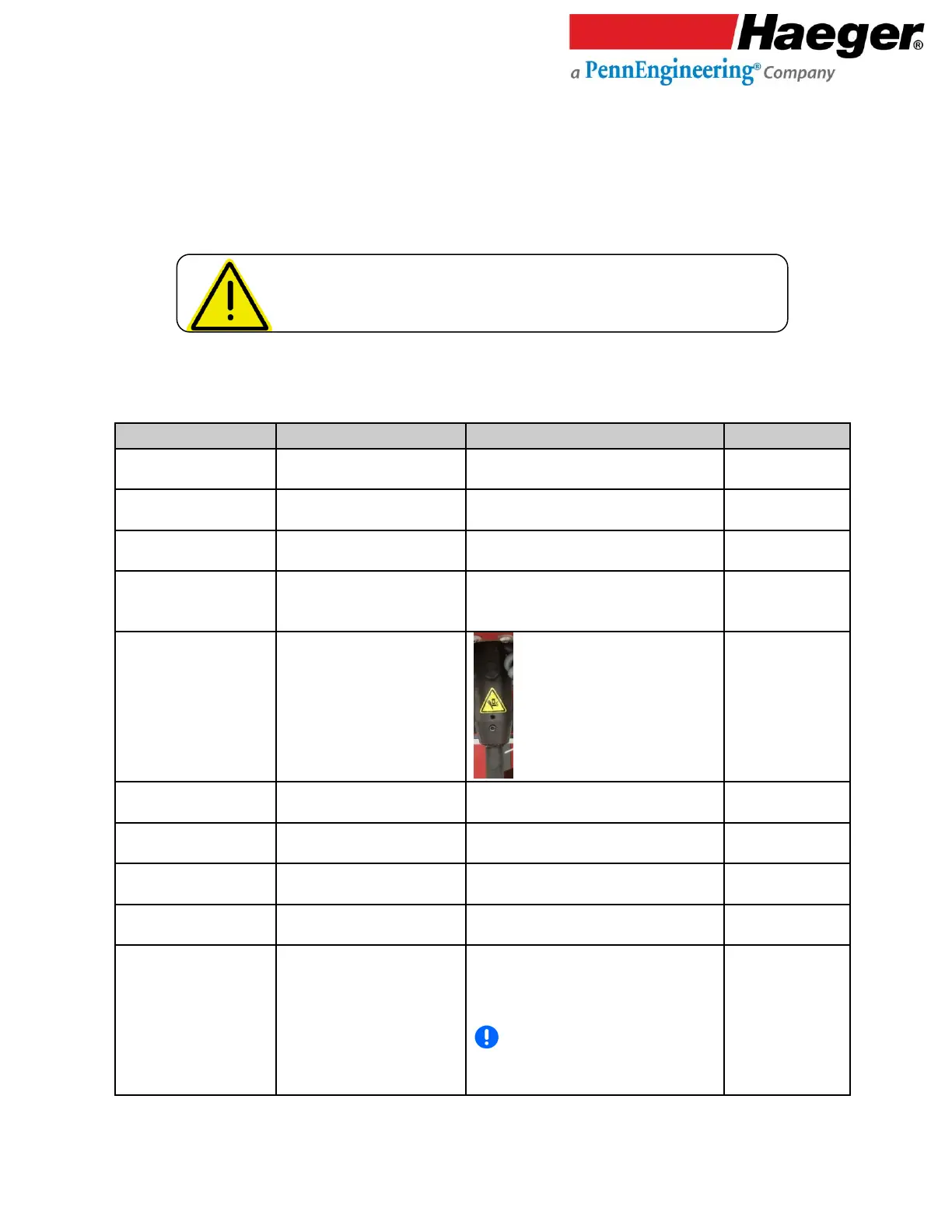

Maintenance Schedule
Component
Area
Maintenance
Schedule
Safety System
Upper Ram
Perform safety system check procedures
using “Testing the Safety System”
Daily
Clean HMI Filter
Touch Screen Computer Back
Cover
Blow out Filters with clean air.
Once a month
(160 hrs)
Upper Tool Holder
Upper Ram
Inspect Continuity Springs and Pins
Once a month
(160 hrs)
Upper Tool Holder (See
warning above)
Upper Ram
Small amount of lithium grease (white)**
between upper tool holder & cylinder rod
Check this label
Once a month
(160 hrs)
Upper Tool Holder
Upper Ram
Daily
Fan Filters
Electrical Cabinet
Remove filters and blow out filters with
clean dry air.
Every 3 Months
(480 hrs)
Shuttle Tooling
Shuttle Jaws
Inspect Springs and change out if they
appear weak
Every 6 months
(960 hrs)
Tooling Components
Flight Tubes
Inspect and change out if damaged
Every 6 months
(960 hrs)
Hydraulic System
Filter
Lower Hardware Insertion
Machine Motor Compartment
Remove and replace cartridge
Haeger Part No. 15-00888
Once a year
(2000 hrs)
Hydraulic Fluid and
Suction Filters
Lower Hardware Insertion
Machine Motor Compartment
Drain fluid and change suction filters
located inside the tank. Haeger part# 15-
01131 Qty 2, refill fluid using AW Exxon
Humble Hydraulic. H or equivalent.
Contact your local recycling center
or governing agency for proper disposal
of the old hydraulic fluid.
Once every 2 years
(4000 hrs)
Replace Risk of Crushing
label if peeling or damaged
