Add Insertion Group (Station 2)
74.
75.

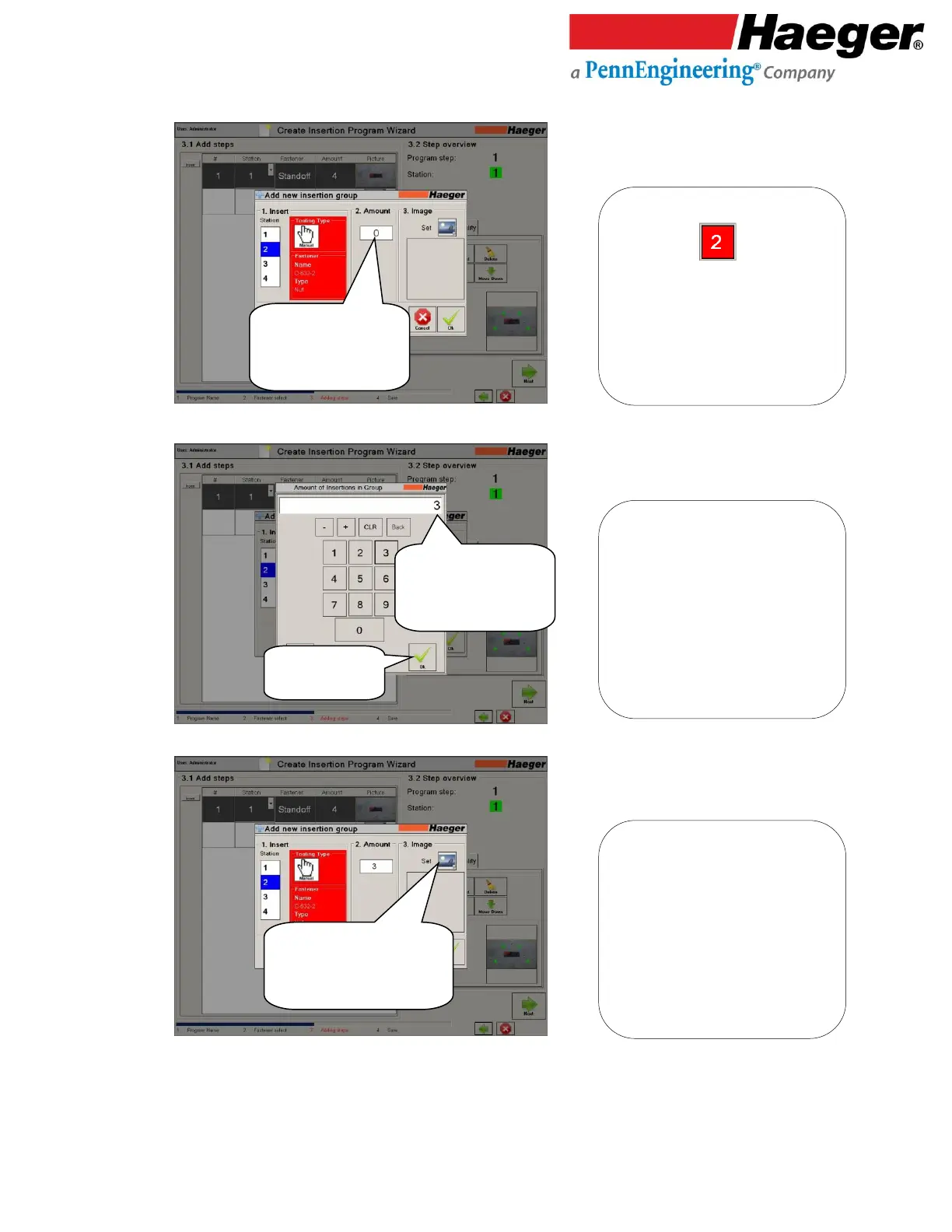

2. Amount: This screen takes you
back to STATION to enter the
AMOUNT or NUMBER of fasteners to
be inserted for this station.
• Touch here to
enter # of fasteners
for STATION 2
2. Amount of Insertions in Group
• Touch on 3 for the
# of fasteners to be
inserted
• Touch on OK
• Select a part image for
hardware insertion
• Touch on IMAGE
3. Image: This icon associates a part image
with the insertion group.
