Machine setup (continued)
If the machine is equipped with a Modular Autofeed System (MAS):
3. Air must be connected to the fitting on the black hose which extends down from the bottom of the
MAS. Connect an air line that is capable of delivering of clean, dry air. For further instructions,
reference the Modular Auto Feeder Operation and Maintenance Manual Section of this manual.
4. If the machine is not yet filled with oil, remove the sides of the machine. Fill the machine with AW
Exxon Humble Hydraulic H or equivalent premium hydraulic oil. Replace the sides when finished.
Fill the reservoir of the machine with the amount of
hydraulic oil listed below:

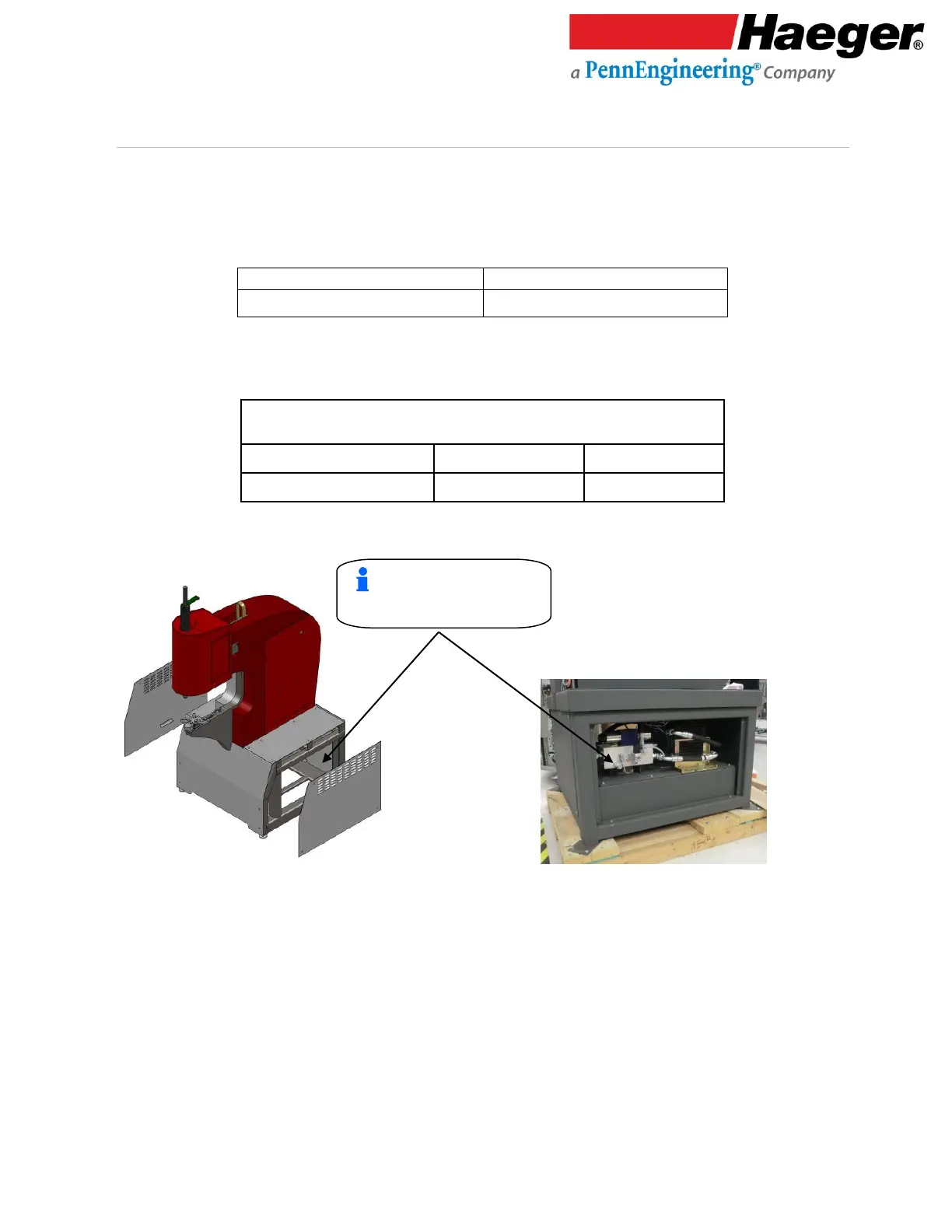

Right and left panels can be
removed to access Hydraulics.
