17-00001-C Page | 65
28.
29.
30.
31.

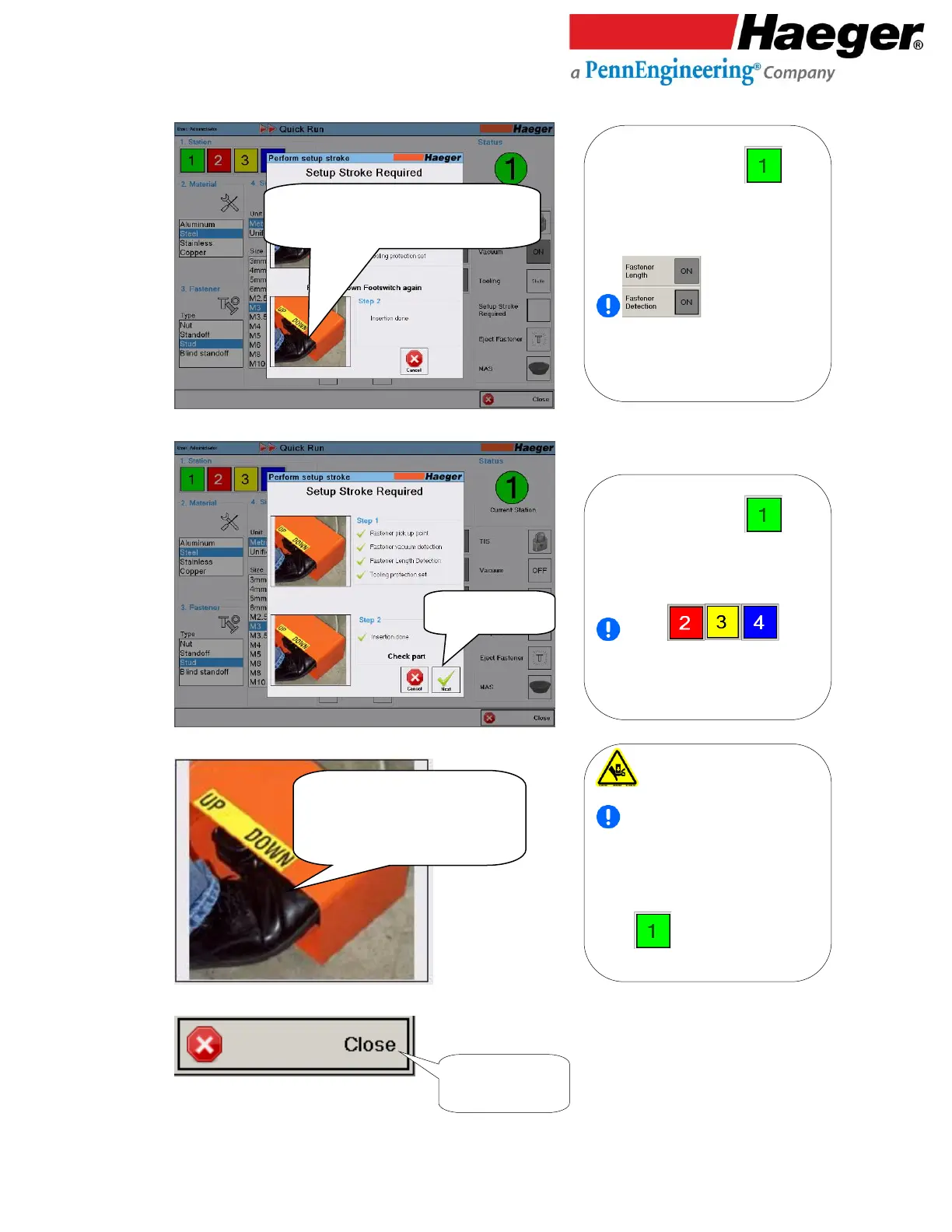

Setup Stroke Step 3 - Station :
Fastener insertion complete.
Stations
are Manual tooling/Manual feed
insertion stations, thus Setup Stroke
is not applicable.
Setup Stroke Step 2 - Station :
Fastener Pickup Point, vacuum detection,
Length and Tooling Protection have been
detected and recorded.
If one or both of these
values are set to OFF, Setup Stroke will NOT
detect those that are OFF.
Upper tool in downward motion
If you remove your foot from the
Down Footswitch, the Upper Tool Holder
will stop. If you depress the Down
Footswitch again, the downward motion
will start again.
Station : Repeat depressing foot
switch until run is completed.
• Depress Foot Switch
• Depress again to exert pre-set
force and complete insertion
• Setup Stroke Step 2
• Depress the Down Foot Switch Again
Touch on Close
to exit Quick Run
To Next Page
