2.2.2 The AXC 3050 as a PROFINET controller in a PROFINET
network
You can connect a lower-level PROFINET network to the AXC 3050 via the X3 Ethernet in-
terface. The AXC 3050 operates as a PROFINET controller.

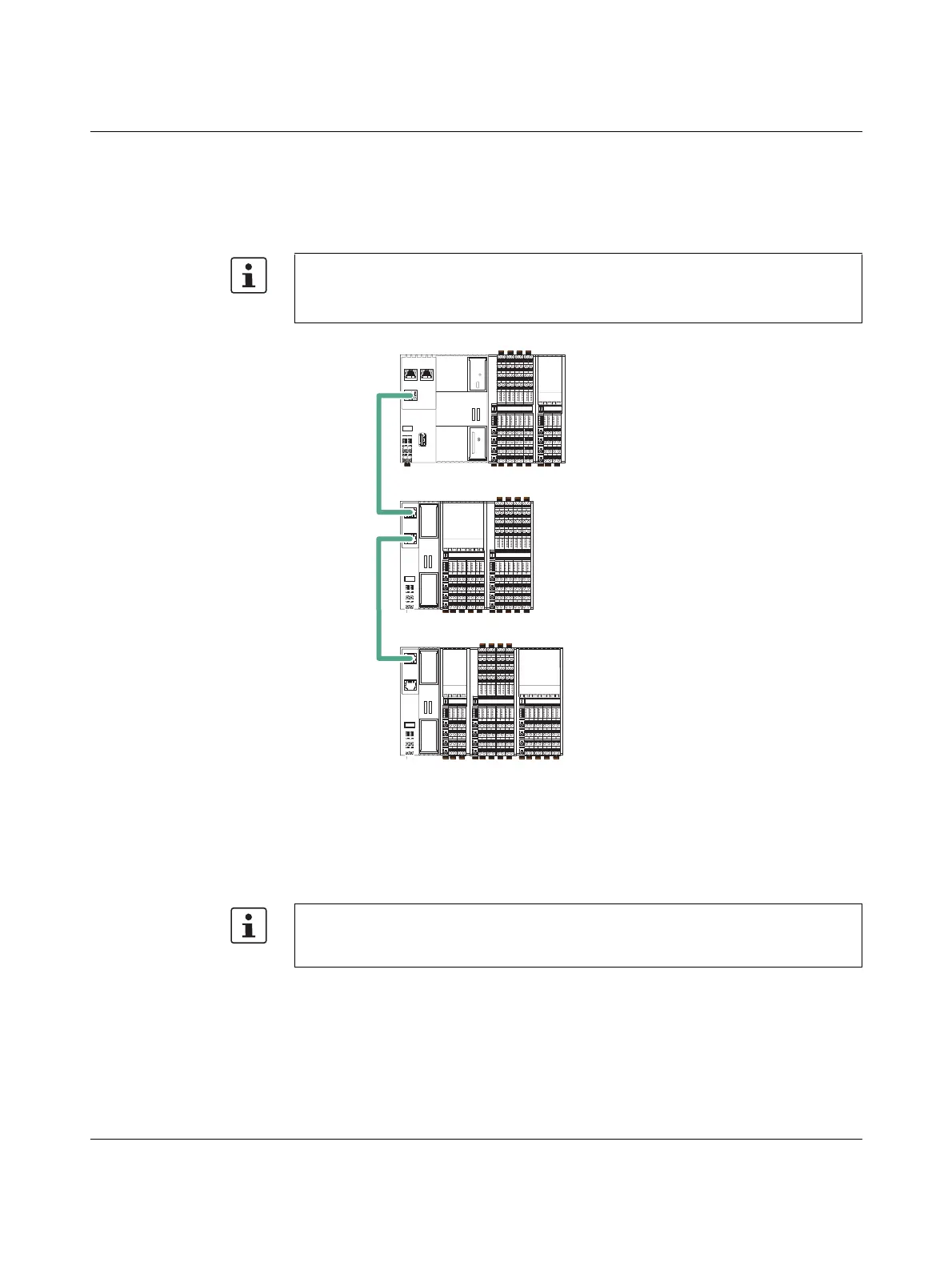

Figure 2-3 AXC 3050 as a PROFINET controller
Key:
A PROFINET controller (in the example: AXC 3050, as the head of an Axioline F station)
B PROFINET device (in the example: PROFINET BK module with connected Axioline F-
I/O modules)
PROFINET controller interface
The PROFINET controller function of the AXC 3050 is only available at the X3 Ethernet
interface.
For additional information on how to integrate the AXC 3050 into a PROFINET network as
a PROFINET controller, please refer to Section “AXC 3050 as PROFINET controller” on
page 60.
PROFINET
8686A016
PROFINET
A
UL
UL
B
B
