AXC 3050
40
PHOENIX CONTACT 8686_en_01
Connecting the supply
voltage
Observe the notes in Section “Connection for the supply voltage” on page 32 when assem-
bling the plug for the supply voltage.
• Strip 8 mm off the cable. Fit the cable with a ferrule if required.
Solid cable/ferrule
• Insert the cable in the terminal point. It is clamped automatically.

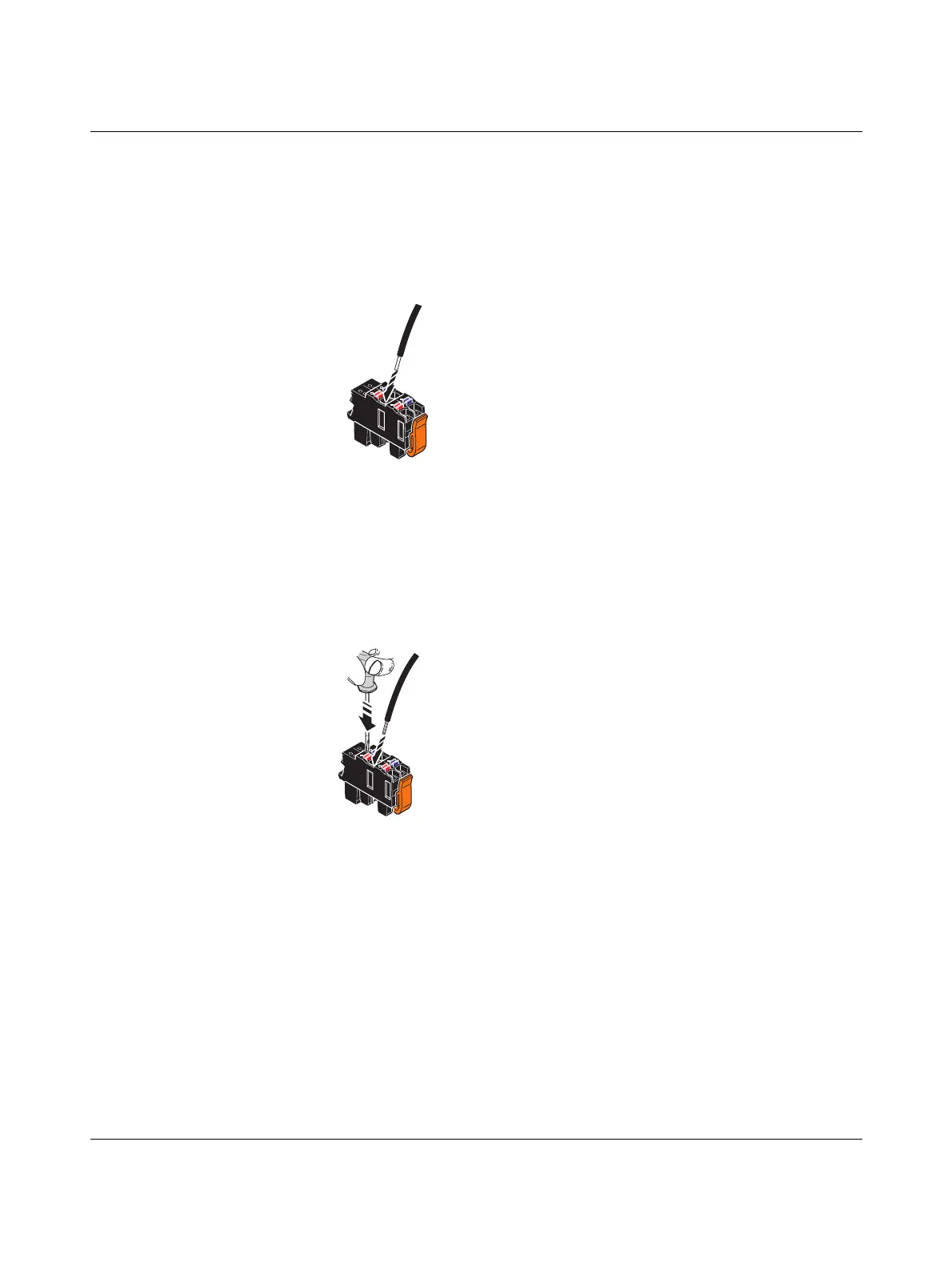

Figure 3-6 Connecting a solid cable
Stranded cable
• Open the spring by pressing on the spring lever with a screwdriver (A).
• Insert the cable in the terminal point (B). Remove the screwdriver to secure the cable.
Recommended:
Bladed screwdriver, blade width of 2.5 mm (e.g., SZS 0,4x2,5, Order No. 1205037)
Figure 3-7 Connecting a stranded cable
