Some electronically controlled power supplies have a fall-back characteristic curve (see
Figure 3-12). They are not suitable for operation with capacitive loads.
For information on power supply units from Phoenix Contact that can be used, please re-
fer to Section “Accessories” on page 132.

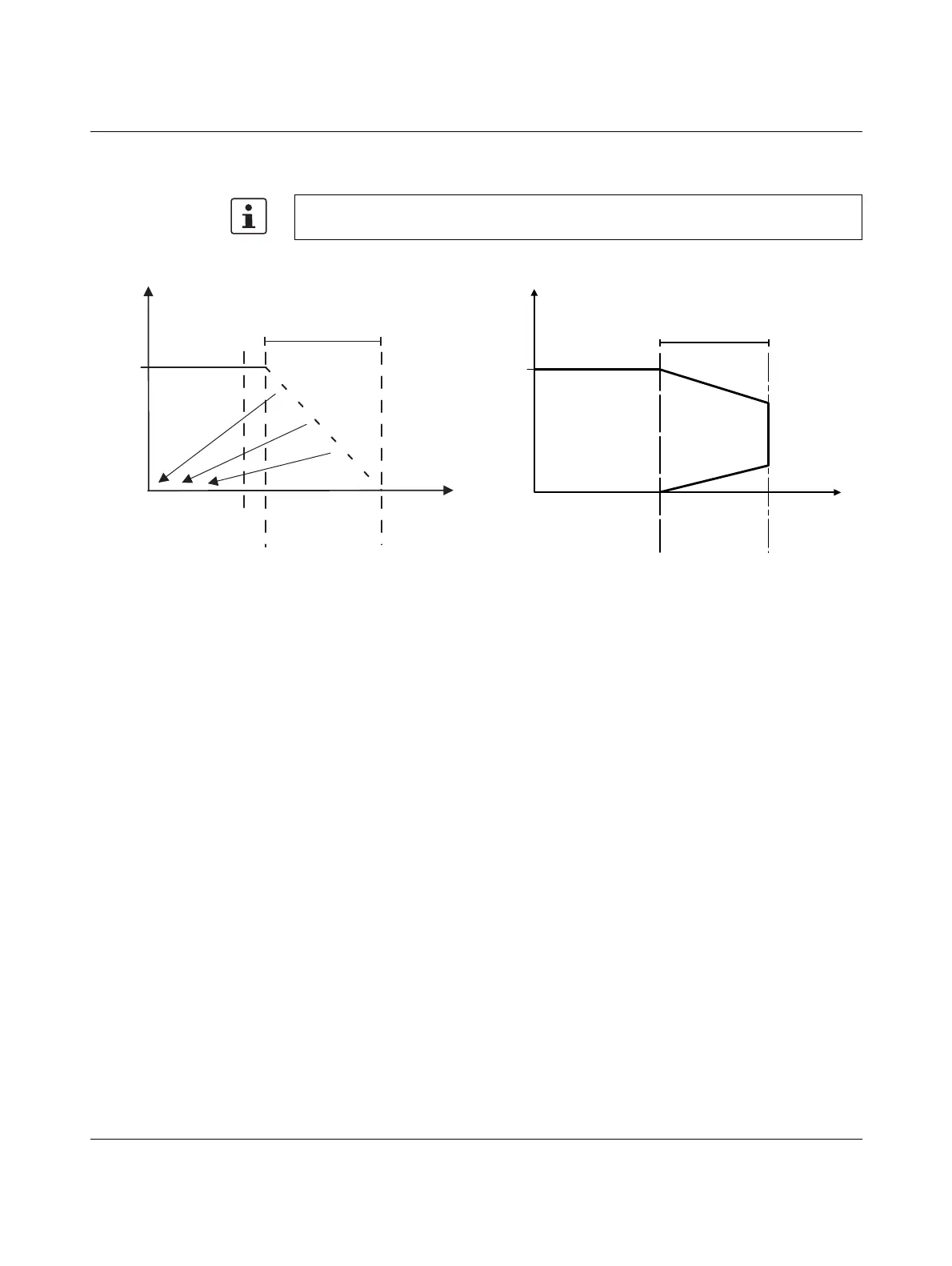

Figure 3-12 Overload range with fall-back characteristic
curve
Figure 3-13 Overload range without fall-back charac-
teristic curve
24
U
OUT
[V]
I
OUT
[A]
6219B070
1.1 x I
N
2.4 x I
N
I
N
Overload range
with fall-back
characteristic curve
6219B071
24
U
OUT
[ ]
V
I
OUT
[ ]
A
I
N
1.5 x I
N
Overload range
without fall-back
characteristic curve
