The AXC 3050 controller under PC Worx
8686_en_01 PHOENIX CONTACT 55

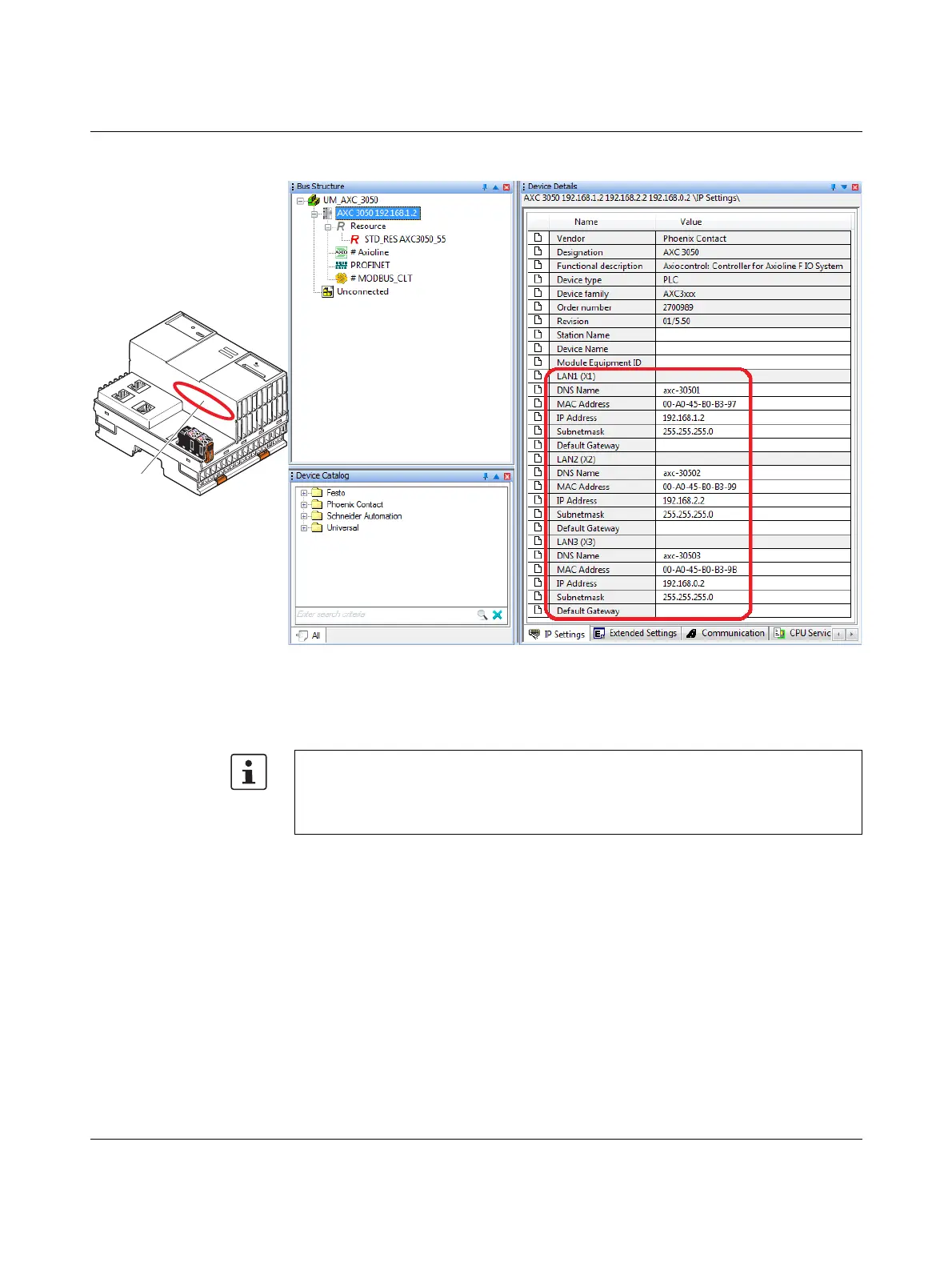

Figure 4-7 IP address settings – entering MAC address(es)
Establishing a connection • Establish an Ethernet connection between your PC and the Ethernet interface of the
controller, to which you wish to assign the IP address settings (Ethernet interface X3 in
the example).
Running BootP – connecting Ethernet interfaces individually
Assignment via BootP cannot be performed simultaneously but only consecutively for
several Ethernet interfaces. For each BootP process therefore connect the corresponding
Ethernet interface to the PC until you have assigned all IP address settings.
