LIFEPAK 500 automated external defibrillator Parts Lists and Assembly Diagrams

12-59

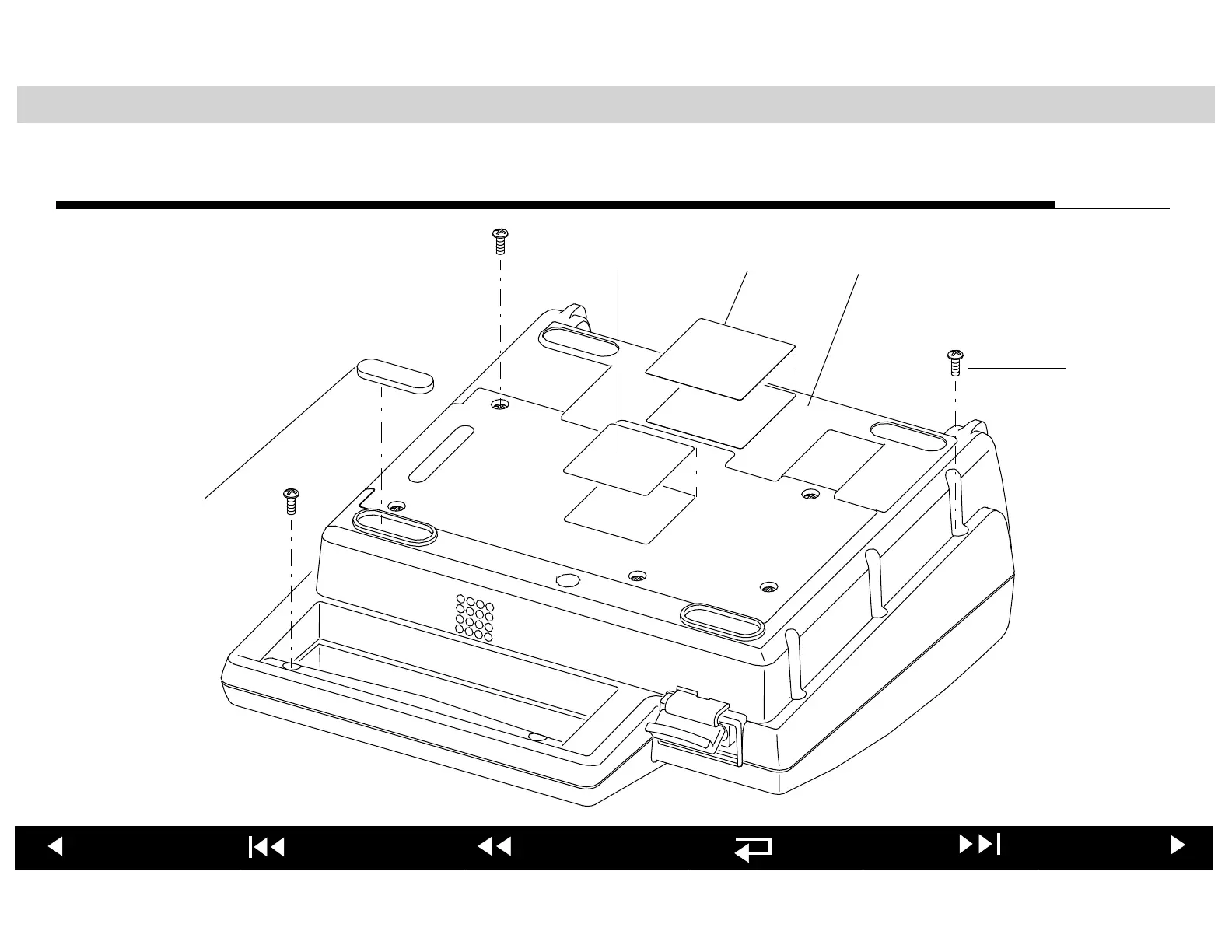

Lower Case Exterior Labels and Hardware

9 (17×)

(4×) 7
