Pilz PSEN sc M 3 Series User Manual

Cleaning, checks and maintenance
Operating Manual PSEN sc M 3.0/5.5 08-17
1005387-EN-05
| 117

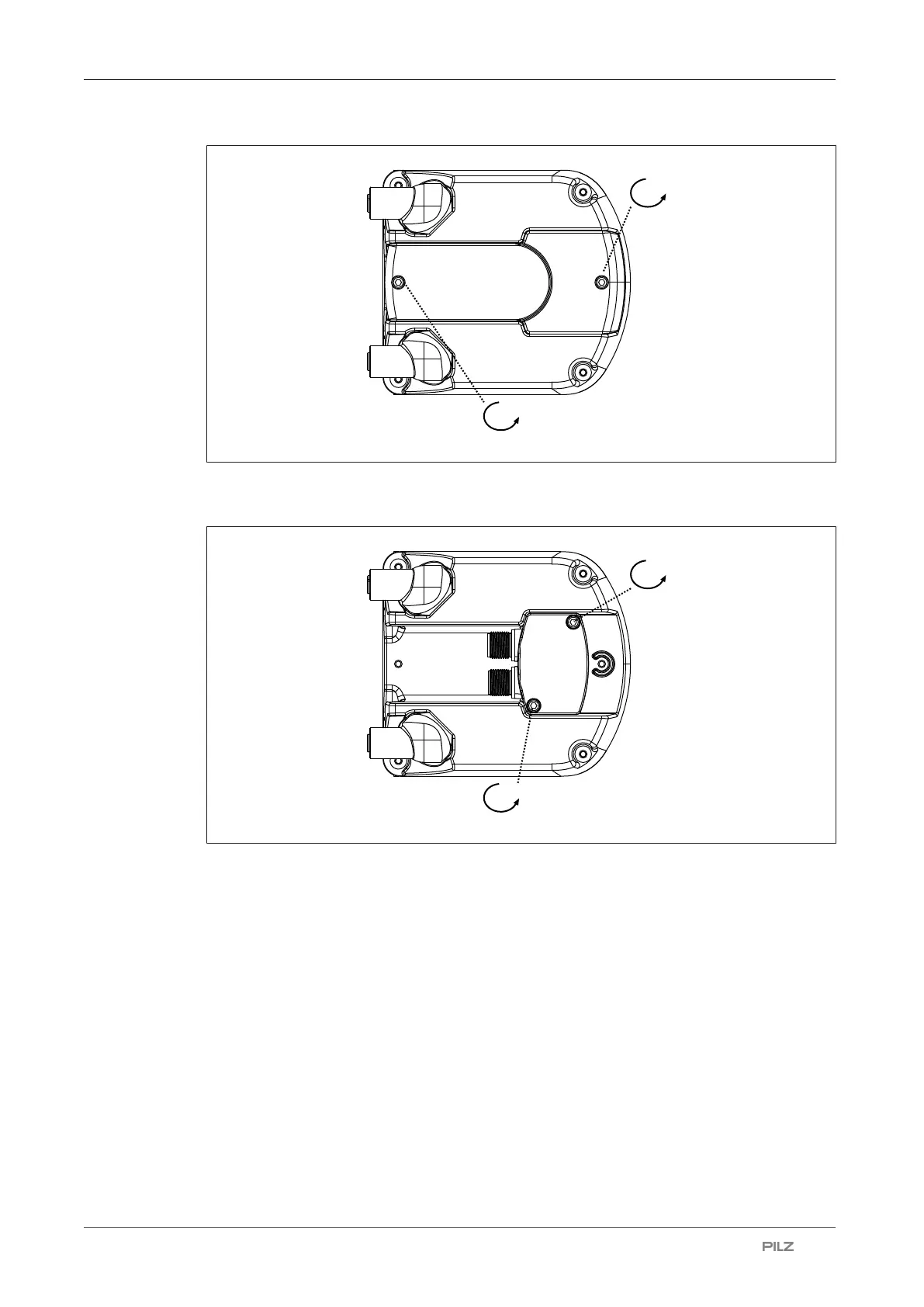

4. Loosen the M3 screws [1] of the memory module and pull out the memory module.
The screws are secured against loss and they cannot be removed.
[1]
[1]
Legend
[1] M3 screws for attaching the memory module
5. Connect the supply voltage and the safety controller to the 17‑pin socket on the
memory module.
6. Remove the protective membrane [1] from the memory module and insert the memory
module at the safety laser scanner.
