Project configuration
Operating Manual PSEN sc M 3.0/5.5 08-17
1005387-EN-05
| 39
[1]
[1]
[2]
[4]
[3]

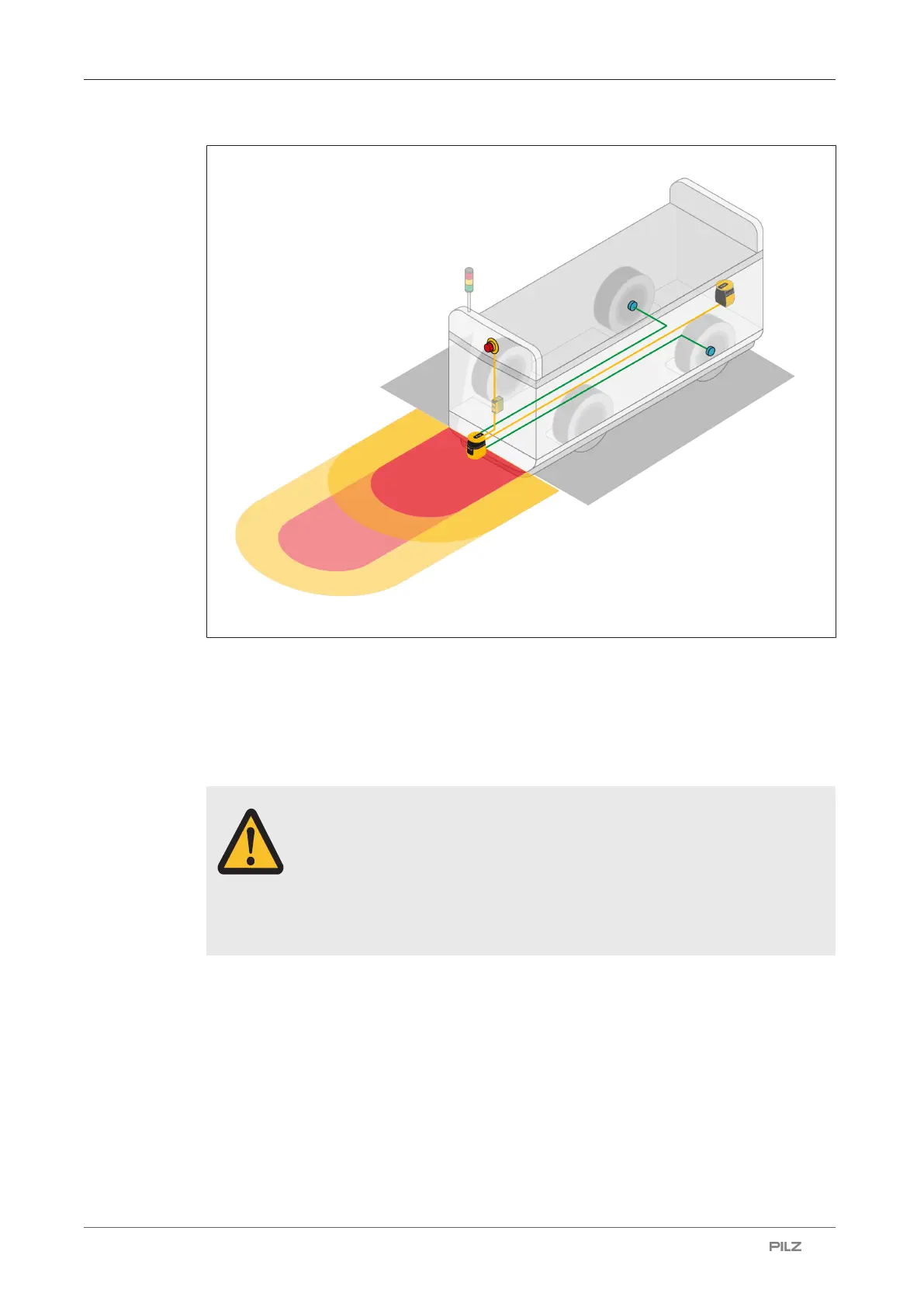

Legend
[1] Dead zones at the sides of the automated guided vehicle system
[2] Safety laser scanner
[3] Automated guided vehicle system
[4] Area covered by the laser beam
CAUTION!
Risk of injury due to insufficient safeguard
Reaching into the opening between safety laser scanner and mounting area
can lead to injuries.
– Prevent reaching into the opening by using a suitable safeguard.
