Project configuration
Operating Manual PSEN sc M 3.0/5.5 08-17
1005387-EN-05
| 55
t
t
1
t
3
t
2
t
4
t
5
Input
Muting 11
Input
Muting 12
Muting
function
On
Off
On
Off
On
Off

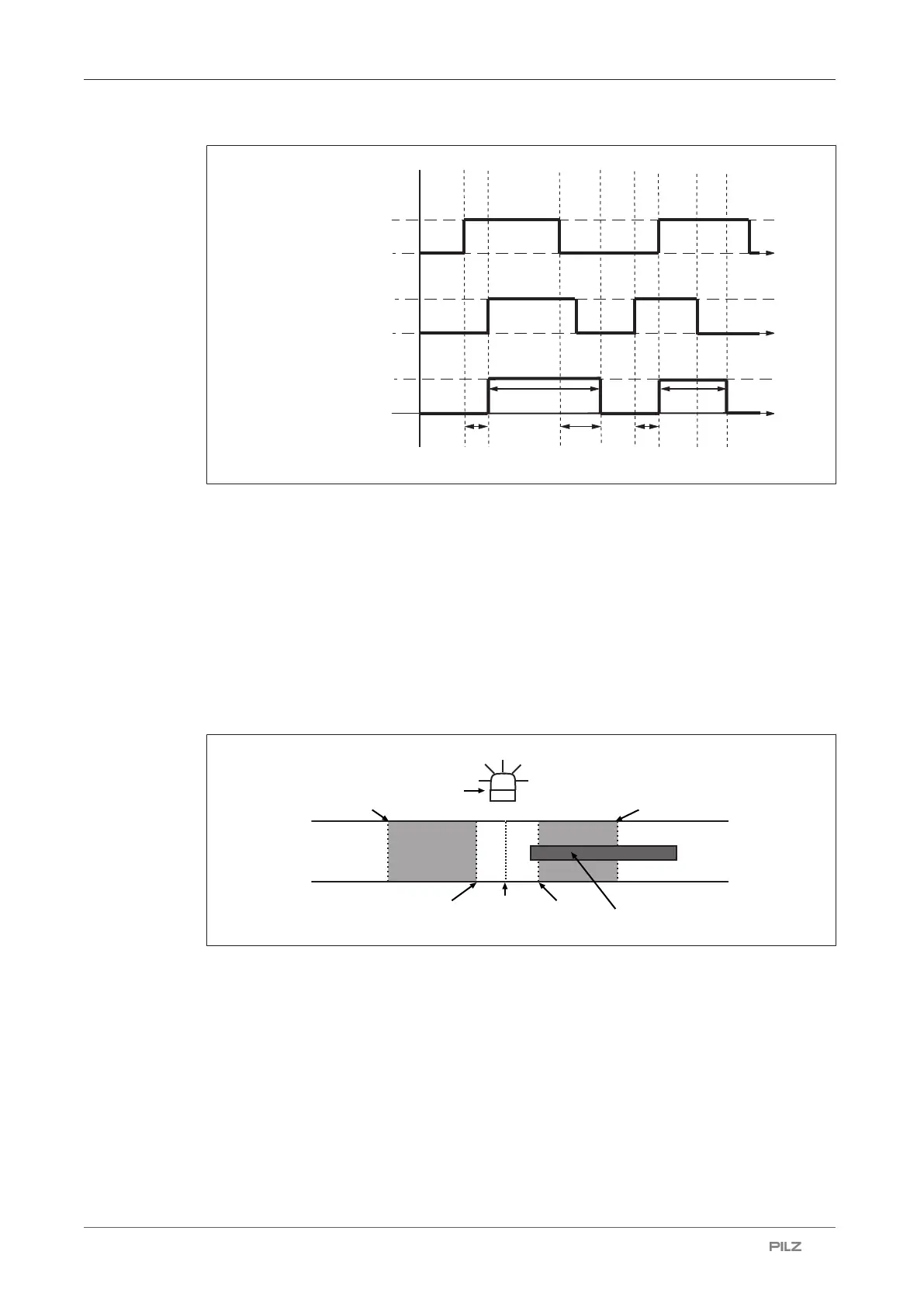

Fig.: Timing diagram T-muting
Legend
t
1
Delay between Muting 11 and Muting 12 (configurable from 1-16 s)
t
2
Duration of the muting state (max. up to the configured timeout)
t
3
Internal delay before the muting state is ended (max. 30 ms)
t
4
Delay between Muting 11 and Muting 12 (configurable from 1-16 s)
t
5
Duration of the muting state (max. up to the configured timeout)
Sequence for T-muting cycle when material passes from the right-hand side
[1]
[2]
[3][4]
[5]
[6]
[7]
Legend
[1] Conveyed material on conveyor
[2] First muting sensor on the input side, connected to Muting 11
[3] Second muting sensor on the input side, connected to Muting 12
[4] PSEN sc M 3.0/5.5 08-17 series
[5] Muting lamp
[6] First muting sensor on the output side, connected to Muting 11
[7] Second muting sensor on the output side, connected to Muting 12
