Project configuration
Operating Manual PSEN sc M 3.0/5.5 08-17
1005387-EN-05
| 56

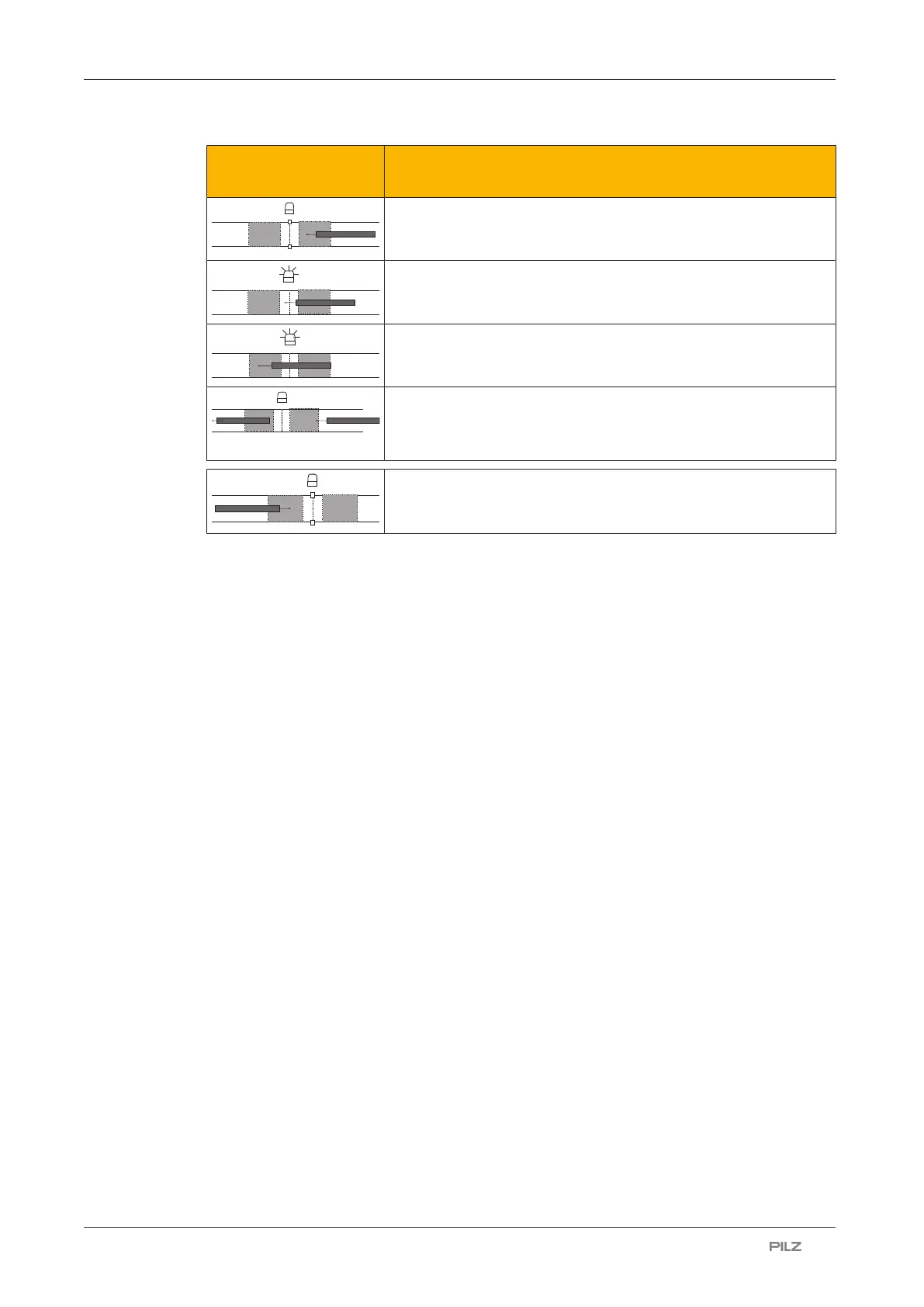

Phase in the muting
cycle
Explanation
Material has already passed the first muting sensor and is being
transported on the conveyor in the direction of the second mut-
ing sensor, muting lamp off.
Material on the conveyor passes the second muting sensor
(max.4s after the first sensor was passed). Muting lamp
flashes, signalling the muting status.
Material on the conveyor passes the PSEN sc M 3.0/5.5 08-17
series and the first muting sensor on the output side, muting
lamp flashes, signalling the muting status.
Material has left the area of the first muting sensor on the output
side, muting lamp is off, muting status is ended.
The next piece of material arrives at the first muting sensor.
If material is transported from the left-hand side, the cycle is re-
versed. The output side becomes the input side and the flow
starts with the second muting sensor on the output side.
Please note the following distances and times when installing the safety laser
scanner and using the muting function:
D
MutingOff
= Distance between muting sensor A1 and muting sensor A2 and between
muting sensor B1 and muting sensor B2
} D
MutingOff
< L
– L = Length of the object that triggers the muting state as it passes the muting sensors
D
A-B
= Max. distance between muting sensor A1 and muting sensor B1 and between
muting sensor A2 and muting sensor B2
} D
A-B
= V * t
1
*100
– V = Conveyor speed of the transported material in m/s
– t
1
= Delay between Muting11 and Muting12
